ironLogic CP-Z-1 GSM User Manual

CP-Z-1 GSM
Reader CP-Z-1 GSM

1. GENERAL INFORMATION

The CP-Z-1 GSM reader is designed for operation in access control systems (ACS) using GSM
cellular communication standard and allows using the telephone number of an incoming call as
an identifier for access control. In addition, incoming SMS messages can also be the source of
the identifier. The identifier obtained in the form of a certain code sequence can be further
transmitted to:
1. A controller via iButton (Dallas Touch Memory) or Wiegand protocols.
2. A personal computer (PC) via RS-485 interface.
Features of the reader:
- Telephone number identification during the call and when receiving SMS messages;
- Reader parameter adjustment using SMS messages;
- RS-485 interface allows connecting the reader to a computer and both receiving codes from
the reader and configuring its parameters;
- A connector for connecting the GSM antenna allows an increased level of network signal
reception by connecting a remote antenna.

2. INSTALLATION AND CONNECTION

The reader should be mounted on a flat surface in a place protected from direct sunlight and
precipitation.
1. Mark and drill mounting holes to fit the size of the reader holes (see Fig. 1).
2. Connect the wires according to the wiring diagram.
3. Insert a SIM card.
4. Install the reader and secure it.
5. Connect the GSM antenna.
6. Turn the power on and make sure that the power indicator "PWR" is on.
To ensure the required distance from the installed reader to the controller provided in the
specifications, it is necessary to use a twisted pair cable (for example, UTP CAT5e).
When connecting via iButton, one twisted pair is connected to the GND terminal and the other
is connected to the D0 terminal (see Fig. 2). Additionally, it is necessary to connect the D1 and
GND terminals with a separate wire. When connecting via Wiegand, two twisted pairs are used.
The first twisted pair connects GND and D0 terminals and the second twisted pair connects
GND and D1 terminals (see Fig. 2). When connected via RS-485, a twisted pair and another
wire are used; the twisted pair connects D0 and D1 terminals and a separate wire connects it to
the grounding GND (see Fig. 3).
ANT
CP-Z-1 GSM
GSM

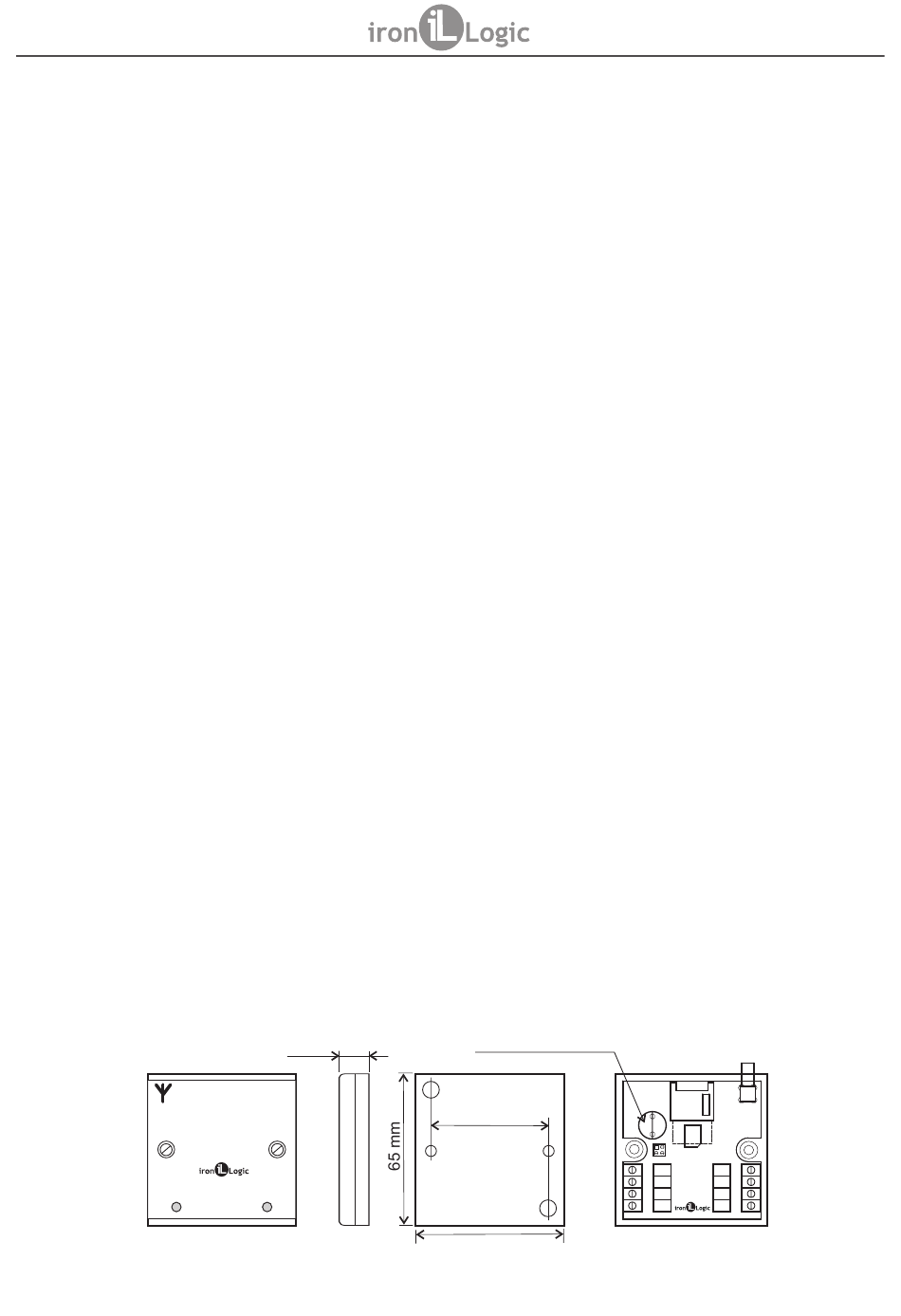

Fig. 1 Product dimensions.
User Manual
20 mm
PWR
To increase the volume,
please remove the sticker from the buzzer
47 mm
ГАРАНТИЙНЫЕ ОБЯЗАТЕЛЬСТВА
65 mm
www.ironlogic.me
ANT
GSM
SIM
1
GSM
3 2
4
CP-Z-1
GND
GND
GSM
D1
+12V
GND S1
S0
D0
1
