ironLogic CP-Z-3 E User Manual

CP-Z-3 E

1. GENERAL INFORMATION

Reader CP-Z-3 E is used in access control systems as a reader of EM-Marin and HID ProxCard® II
(HID 1326) identifiers (proximity cards, key fobs) to transmit the read identifier code via the iButton
(Dallas Touch Memory) or Wiegand-26 protocol. The reader allows simultaneous use of EM-Marin
and HID identifiers in ACS systems.

2. INSTALLATION AND CONNECTION

The reader is mounted on a flat surface in a place that ensures its unimpeded contact with an
identifier.
For mounting the CP-Z-3 E reader, please carry out the following:
1. Mark and drill mounting holes to fit the size of the reader holes (Fig. 2).
2. Connect the wires to the reader connector according to Table 1.
3. Insulate the wires' connection points.
4. Power up the reader - the red LED will light up.
5. Verify the working order of the reader by scanning an identifier.
6. Install the reader and secure it with self-tapping screws.

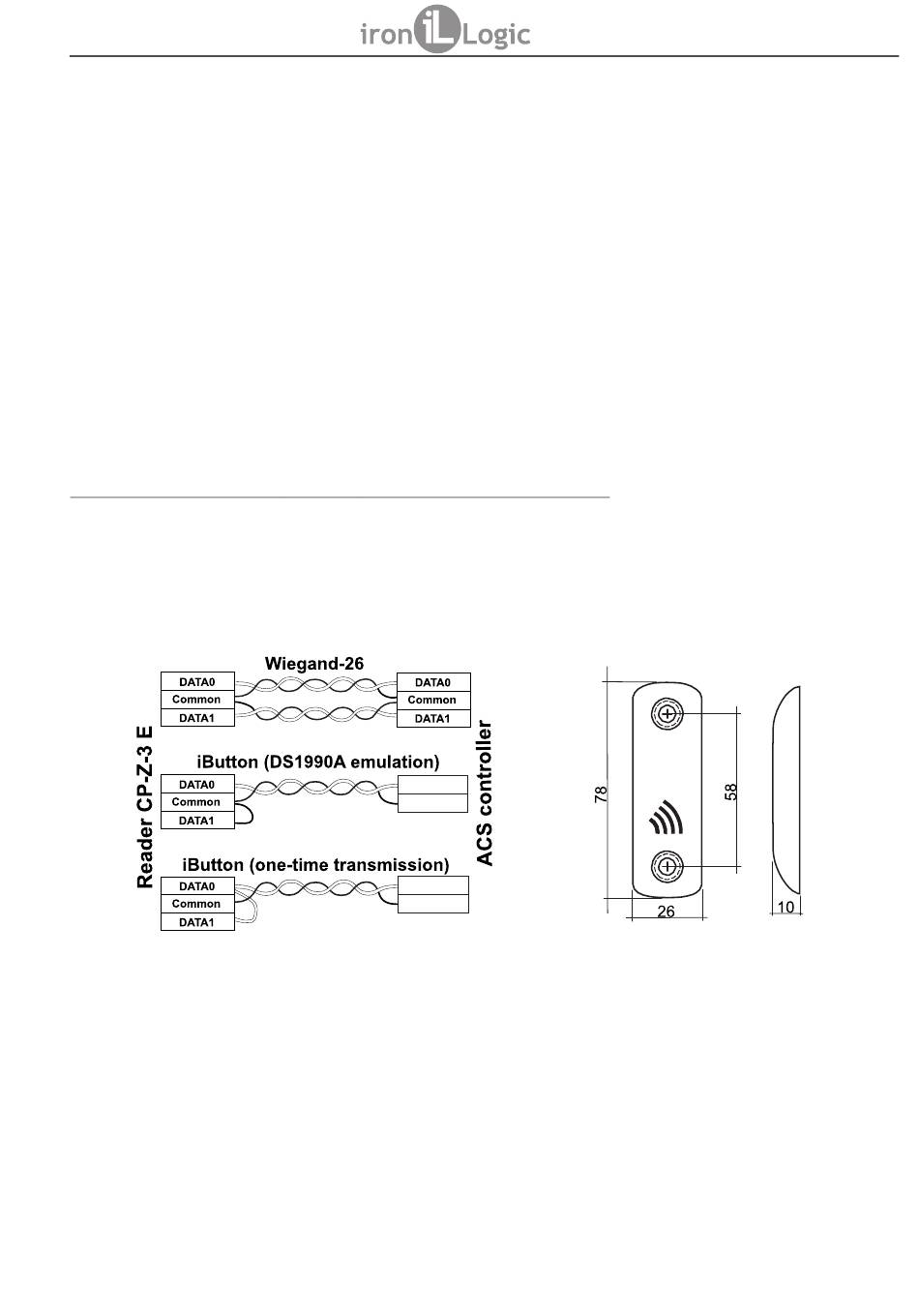

Fig. 1 Transmission protocol selection
*Do not install readers closer than 10 cm from each other!
**To ensure the sufficient distance between the reader and the controller (given in the
specifications), it is necessary to use a UTP twisted pair cable that complies with the CAT5e
standard:
- When connected via iButton, one twisted pair wire is connected to the GND and the other is
connected to
DATA0;
- When connected via Wiegand-26, the first twisted pair is connected to GND and DATA0 and the
second twisted pair is connected to GND and DATA1 (see Fig. 1).
Reader
CP-Z-3 E
User Manual
TM
Common
TM
Common
www.ironlogic.me
Fig. 2 Product dimensions
Page 1
