CP-Z 2MF
CP-Z 2MF Embedded
ACS RFID Mifare reader (13,56 MHz)
1. OVERVIEW
CP-Z 2MF
RFID
Embedded reader is used to read serial numbers of Mifare (ISO 14443-A)
compliant tokens (cards, key fobs etc.), as well as to read and write the protected memory
sectors of Mifare 1K, 4K and UltraLight compliant tokens.
2. OPERATION MODES
2.1. ACS
RFID
Reader.
The reader is connected to ACS controllers via iButton (Dallas Touch Memory), Wiegand-26 and
Wiegand-34 protocols
2.1.1. Mode 1. The reader transmits UID (serial number) of all tokens.
2.1.2. Mode 2. The reader transmits UID (serial number) only of those tokens whose certain sector
could be authorised (gained access).
2.1.3. Mode 3. The reader transmits the code from protected memory sector of Mifare tokens.
Mode 2 and Mode 3 setup is done via "M3NConf.zip" free software, found at
http://www.ironlogic.
2.2. Computer Reader.
The reader is connected and controlled by a PC, via RS-485 interface (through a converter)
2.2.1. Mode 4. The reader reads and writes protected memory sectors of Mifare tokens. To work
with the reader in Mode 4, software libraries SDK Z-2 USB MF are required.
http://www.ironlogic.
To configure Modes 2, 3 and to work in Mode 4, a Z-397 converter is required
http://www.ironlogic.
network connection!)
User Manual
me.
me.
me
. The reader is connected via RS-485 point-to-point interface (NOT a

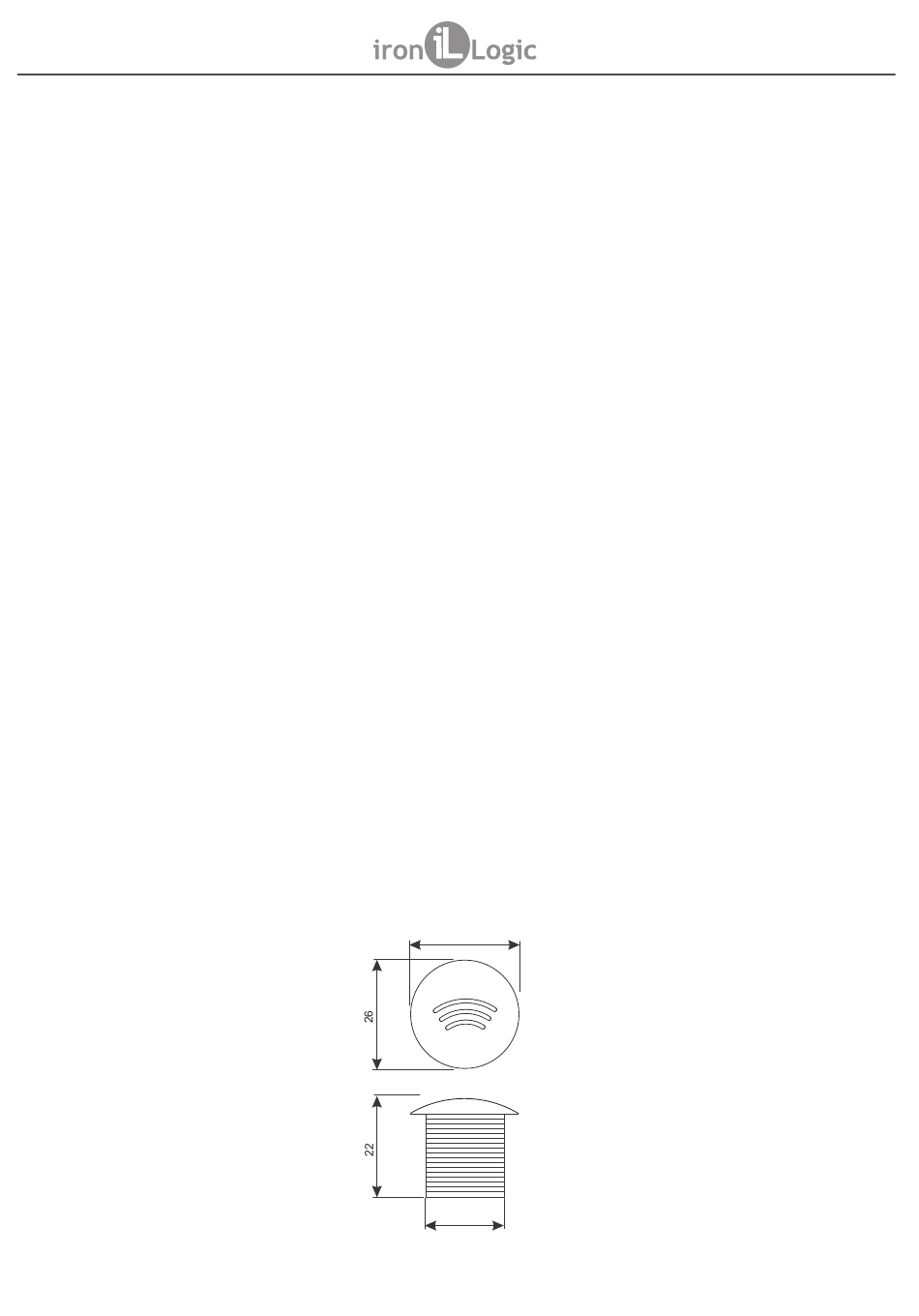

Figure 1.
26
20
Device dimensions.
www.ironlogic.me
.
page 1
