36585-Series Automatic VNA Calibrator
36585K Precision AutoCal, 70 kHz to 40 GHz, 2-port
36585V Precision AutoCal, 70 kHz to 70 GHz, 2-port
Anritsu Company
490 Jarvis Drive
Morgan Hill, CA 95037-2809
USA
Precision AutoCal
Reference Manual
®
Printed: January 2009
Copyright 1990–2008 Anritsu Company
PN: 10410-00279
Revision: A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anritsu Precision AutoCal 36585 Series
Summary of Contents for Anritsu Precision AutoCal 36585 Series

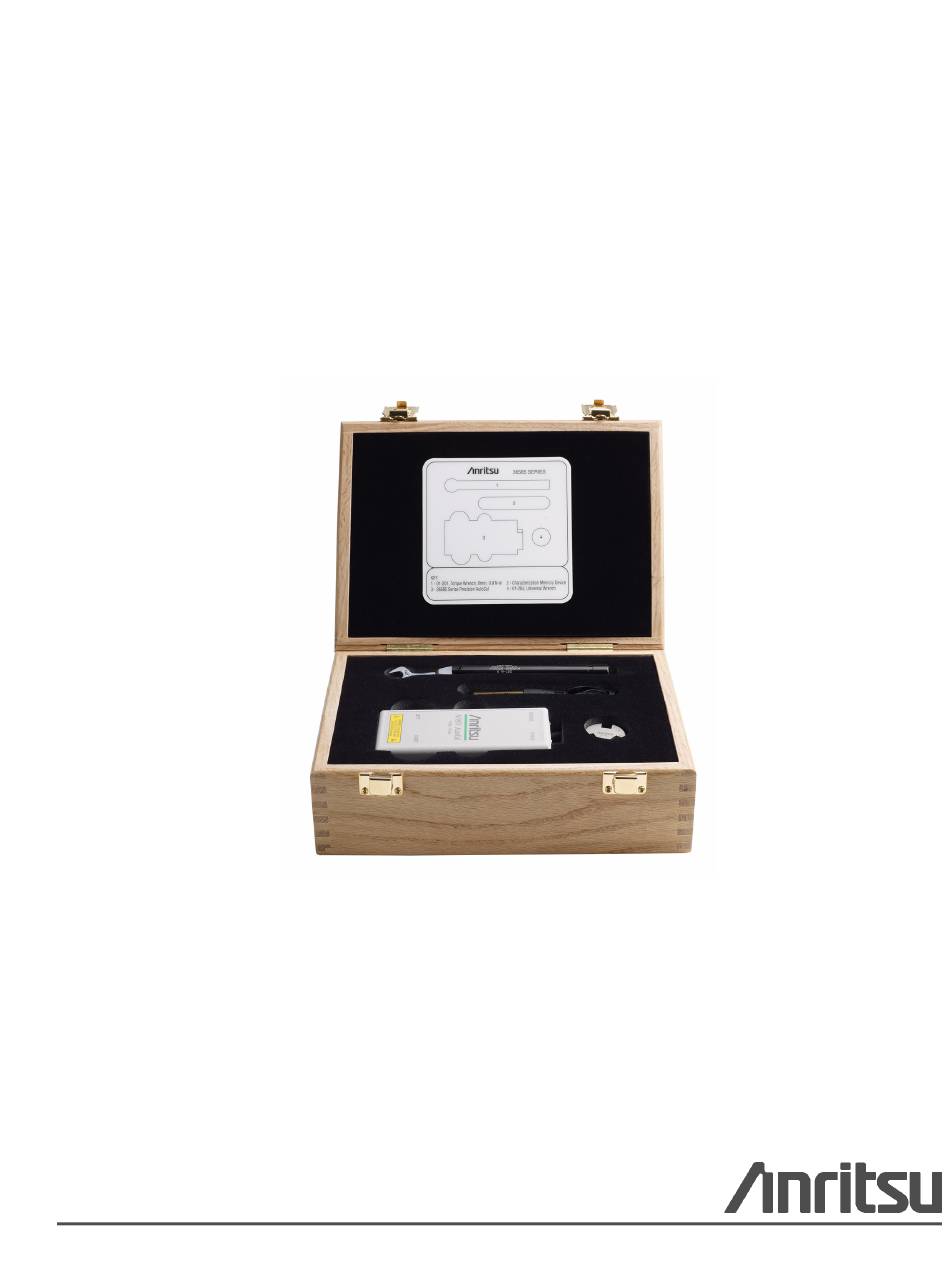

- Page 1 Reference Manual 36585K Precision AutoCal, 70 kHz to 40 GHz, 2-port 36585V Precision AutoCal, 70 kHz to 70 GHz, 2-port Anritsu Company PN: 10410-00279 490 Jarvis Drive Revision: A Morgan Hill, CA 95037-2809 Printed: January 2009 Copyright 1990–2008 Anritsu Company...
-
Page 2: Limitation Of Warranty
WARRANTY The ANRITSU product(s) listed on the title page is (are) warranted against defects in materials and workmanship for one year from the date of shipment. ANRITSU’s obligation covers repairing or replacing products which prove to be defective during the warranty period. - Page 3 36585K/36585V Precision AutoCal VNA Calibrator PN: 10410-00279 Rev: A...
- Page 4 36585K/36585V Precision AutoCal VNA Calibrator...
- Page 5 Table of Contents Chapter 1 — AutoCal Calibration Kits ....... . . 1-1 This chapter provides an illustration and contents for the 36585K-2M, 36585K-2F, 36585K-2MF, 36585V-2M, 36585V-2F, and 36585V-2MF Calibration Kits.
- Page 6 36585K/36585V Precision AutoCal VNA Calibrator...
-
Page 7: Chapter 1 - Autocal Calibration Kits

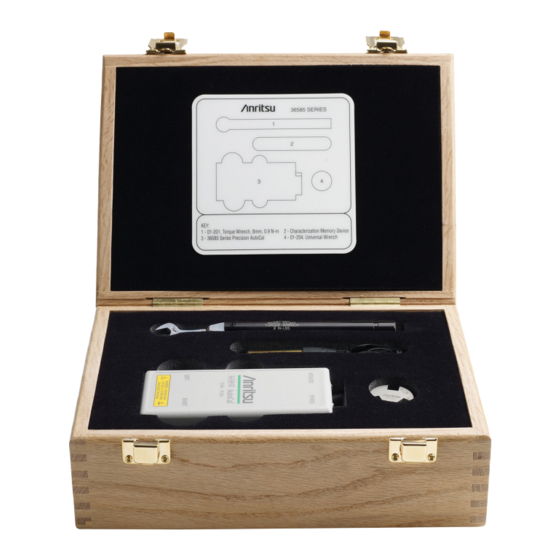

Calibration Kits. 12-term error-corrected measurement. • The calibration kits are described in this AutoCal has been characterized by Anritsu and the chapter. characterization file is included for use by the host VNA. It is valid for 1 year from time of shipment. - Page 8 Model 3658K, 36585V Calibration Kit The kits (Figure 1-1) includes the following items: (1) 01-201 torque wrench, 8mm, 0.9 N-m Additional included items not shown in Figure 1-1: (2) Characterization data on a USB memory • 40-168-R 12V power supply device •...
-
Page 9: Chapter 2 - Maintenance Instructions
Figure 2-2. Pin Depth Gauge Before mating, measure the pin depth (Figure 2-1) of the device that will mate with the RF component, using an ANRITSU Pin Depth Gauge or equivalent Tolerance (Figure 2-2). Based on RF components returned for... -
Page 10: Cleaning Instructions
Over Torquing Connectors Over torquing connectors is destructive; it may Most cotton swabs are too large to fit into the ends of the smaller connector types. In these damage the connector center pin. Finger-tight is cases it is necessary to peel off most of the usually sufficient, especially on Type N connectors. - Page 11 Do NOT use Industrial Solvents or Water on connector. Use only Denatured Alcohol. Dampen only, DO NOT saturate. FEMALE MALE Use only denatured alcohol and the proper size of cotton swab. Gently rotate the swab around the center pin being careful not to stress or bend the pin or you will damage the connector.
- Page 12 Anritsu Company Printed on Recycled Paper with Vegetable Soybean Oil Ink 490 Jarvis Drive Morgan Hill, CA 95037-2809 http://www.anritsu.com...
