Reference Manual
Precision AutoCal
36585-Series Automatic VNA
Calibrator
36585K Precision AutoCal, 70 kHz to 40 GHz, 2-port
36585V Precision AutoCal, 70 kHz to 70 GHz, 2-port
Anritsu Company
Part Number: 10410-00279
490 Jarvis Drive
Revision: C
Morgan Hill, CA 95037-2809
Published: April 2015
USA
Copyright 2015 Anritsu Company
http://www.anritsu.com
Advertisement
Table of Contents
Related Manuals for Anritsu Precision AutoCal 36585 Series
Summary of Contents for Anritsu Precision AutoCal 36585 Series
- Page 1 36585K Precision AutoCal, 70 kHz to 40 GHz, 2-port 36585V Precision AutoCal, 70 kHz to 70 GHz, 2-port Anritsu Company Part Number: 10410-00279 490 Jarvis Drive Revision: C Morgan Hill, CA 95037-2809 Published: April 2015 Copyright 2015 Anritsu Company http://www.anritsu.com...
- Page 2 Anritsu is not liable for consequential damages. LIMITATION OF WARRANTY The foregoing warranty does not apply to Anritsu connectors that have failed due to normal wear. Also, the warranty does not apply to defects resulting from improper or inadequate maintenance, unauthorized modification or misuse, or operation outside of the environmental specifications of the product.
- Page 4 This product and its manuals may require an Export License or approval by the government of the product country of origin for re-export from your country. Before you export this product or any of its manuals, please contact Anritsu Company to confirm whether or not these items are export-controlled.
- Page 5 European Parliament and Council Directive 2002/96/EC Chinese RoHS Compliance Statement...
-
Page 7: Table Of Contents
Table of Contents Chapter 1—General Information Introduction ..............1-1 Purpose . - Page 8 Contents-2 PN: 10410-00279 Rev. C 36585K/36585V RM...
-
Page 9: Chapter 1-General Information
Network Analyzer System for a 12-term error-corrected measurement. AutoCal has been characterized by Anritsu and the characterization file is included for use by the host VNA. It is valid for 1 year from time of shipment. The characterization cycle for the 36585-Series AutoCal is 12 months assuming proper use and care of the module and its connectors. -
Page 10: Kit Contents

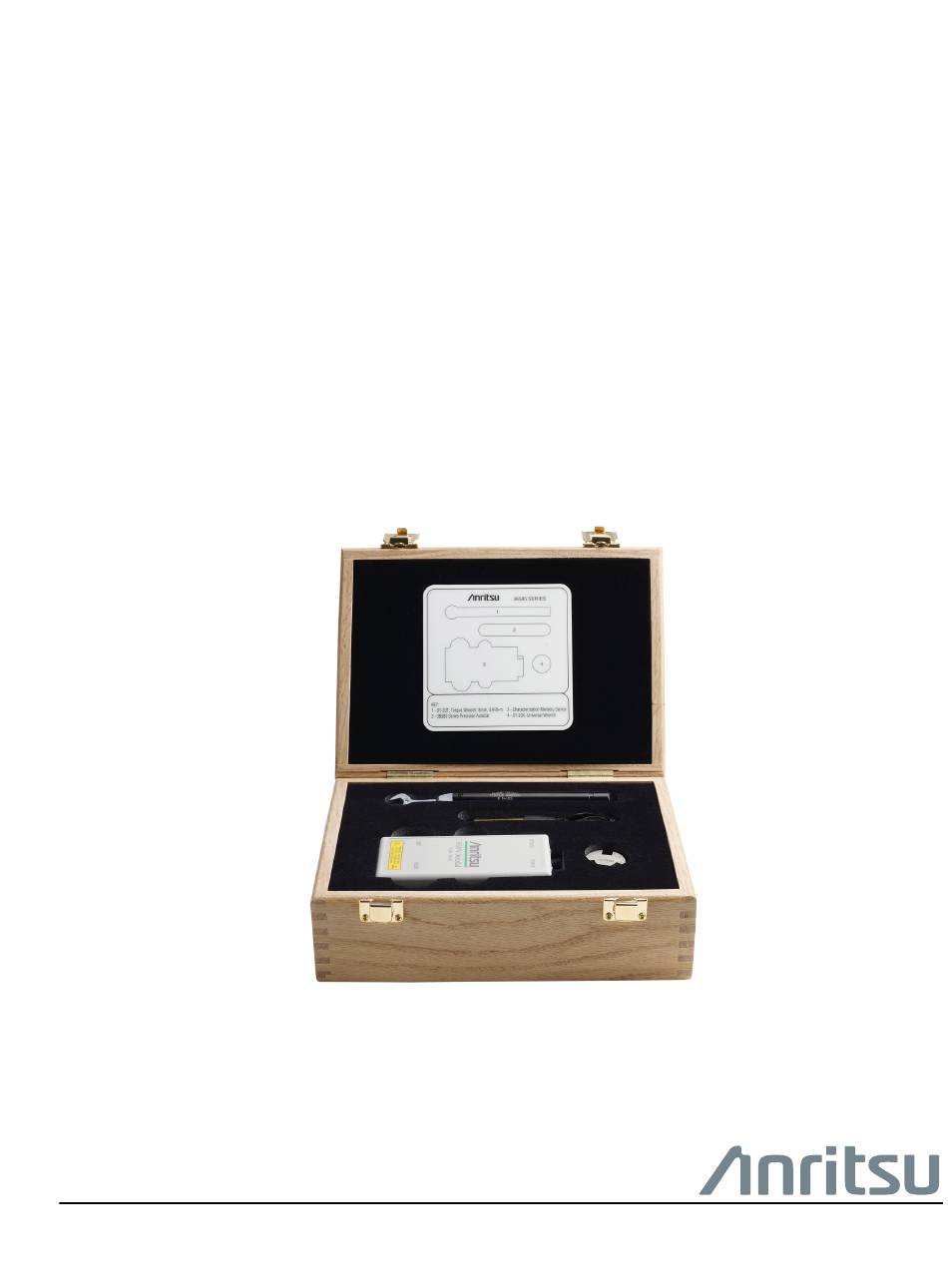

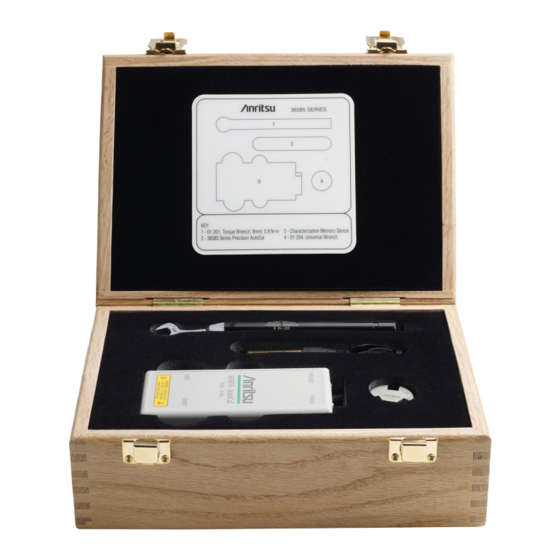

1-3 Kit Contents General Information Kit Contents The AutoCal 36585 Series Kit components are listed below. Index Description 01-201 torque wrench, 8 mm, 0.9 N·m Characterization data on a USB memory device 36585 precision AutoCal 01-204 universal wrench for K and V connectors Additional included items not shown in this figure: 40-187-R 12V Power Supply 806-69 Serial Cable... -
Page 11: Chapter 2-Maintenance Instructions
Chapter 2 — Maintenance Instructions This chapter provides instructions on the care and use of precision connectors. It includes information on inspection, cleaning, pin depth measurement, and torquing instructions. 36585K/36585V RM PN: 10410-00279 Rev. C... -
Page 12: Inspecting Connectors
2-1 Inspecting Connectors Maintenance Instructions Inspecting Connectors Use adequate magnification when inspecting connectors. The minimum magnification ranges from 2X to 10X magnification. - K (2.92 mm) connectors: 7X - V (1.85 mm) connectors: 7X Inspect connectors for: Normal Bent Broken Nonconcentric - Bent and misaligned center pins (pins should be concentric) -
Page 13: Making The Connection
Maintenance Instructions 2-3 Making the Connection Making the Connection Carefully align the connectors so they are parallel to The final tightening is done using the appropriate torque each other. The male connector center pin must slip wrench set to the correct torque setting for your concentrically into the contact fingers of the female connector. -
Page 14: Measuring Pin Depth
2-4 Measuring Pin Depth Maintenance Instructions Measuring Pin Depth Destructive pin depth of mating connectors is the most frequent cause of equipment failure in the field. When an RF component is mated with a connector having a destructive pin depth, damage will likely occur to the RF component connector. -
Page 15: Required Equipment
Maintenance Instructions 2-4 Measuring Pin Depth Required Equipment Connector pin depth gauge kits are available as part of the Anritsu 365xX Series Calibration Kits. Note Refer to Anritsu Precision RF & Microwave Components catalog. Pin Depth Gauge Use an Anritsu Pin Depth Gauge or equivalent as shown below to accurately measure pin depths. -
Page 16: K Connector Measurement
The pin Caution depth should be measured to ensure compatibility before attempting to mate it to a connector on Anritsu test equipment. Table 2-2. Pin Depth Tolerances and Gauge Settings... - Page 17 Maintenance Instructions 2-4 Measuring Pin Depth 36585K/36585V RM PN: 10410-00279 Rev. C...
- Page 18 Anritsu Company 490 Jarvis Drive Anritsu utilizes recycled paper and environmentally conscious inks and toner. Morgan Hill, CA 95037-2809 http://www.anritsu.com...
