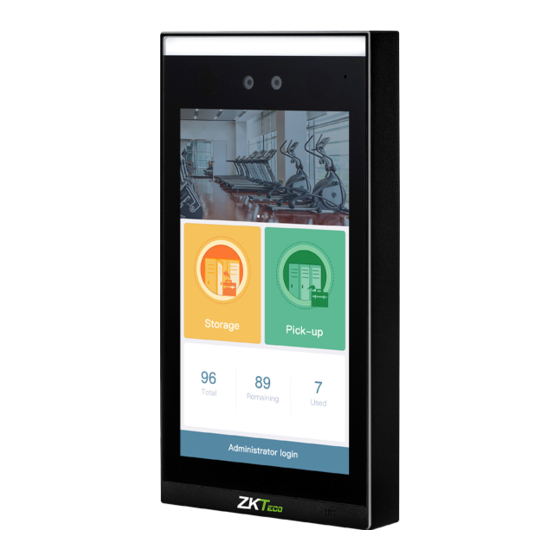

    LockerPad-7B User Manual Overview LockerPad-7B is a locker solution core device based on ZKTeco facial recognition and card recognition technology. It communicates with the Lock Control Board through the RS485 protocol to control the electronic lock.  It supports storage and pick-up, shared by internal employees and temporary users such as visitors, and is compatible with the requirements of one person using one compartment and multiple persons using one compartment.

  • Page 8: Instructions For Use

    In order to use device smoothly, please set the relevant parameters correctly. See the Default Basic Parameters below.  LockerPad-7B only supports face recognition. If you need to use swiping card to open the compartment, please contact the technical staff to choose a suitable Wiegand reader. Default Basic Parameters ...

  • Page 9: Storage And Pick-Up

    Please set the parameters according to the actual situation. If you are in doubt, please refer down to the Device Settings chapter of the user manual. Storage and Pick-Up LockerPad-7B supports two access methods: Face and Card. (Note: If users need to use the card function, they need to prepare the Wiegand readers.) Advertisement The advertisement supports mixed loop playback of pictures and videos, each picture is displayed for 5 seconds, and switched to playing video after photo display according.

  • Page 10: Pick-Up

    [All Out] or [Halfway Out].  If the administrator does not set to allow Halfway Out, the user can only pick-up once, and all items must be taken out at one time. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 11: The Use Of Locker

    After the verification is successful, enter the Settings page. Settings In Settings, various options are available which are listed below: P a g e | 10 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 12: User Management

    For communicating with PC, you need to configure the network. Server Settings The settings used for connecting the PC. Allow Visitor to Use Used to control the user type. Restart Device Used to restart the LockerPad-7B device. Show Status Bar Show bottom navigation bar. Record History record. User Management This function can be used when the device is in standalone working mode.

  • Page 13: U Disk Import And Export Users

    It is used for multiple devices to share a set of user data, and only supports importing and exporting user data via U disk. Export Users: After exporting, a ZKTeco folder will be added to the U disk, which contains user data and user registered photos.

  • Page 14: Upload Ad

    Method 2: Exit the program, enter the Internal Memory/Face Locker/ad folder through the Explorer , and save the advertisement materials in this folder to upload the ad. P a g e | 13 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 15: Ad Removal

    In order to facilitate the initial use experience, the locker is preset with 12 small compartments. 3.3.1 Device Name The default is LockerPad-7B, the user can modify it according to the situation. 3.3.2 Basic Settings It is used to set the amount and type of storage compartment. It supports three types of compartments i.e., large, medium, and small, and the amount supports up to 96.

  • Page 16: Wiegand In Settings

    Wiegand In Settings Set the corresponding Wiegand parameters according to the selected locker card reader type. The device support Wiegand26, Wiegand26a, Wiegand34, Wiegand34a, Wiegand36, Wiegand36a, Wiegand37, Wiegand37a, Wiegand50. P a g e | 15 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 17: Biometric Parameters

    On the other side, if the threshold is too low, the accuracy of face recognition will be lower, which may lead to misjudgment and other problems. The default value is 65. P a g e | 16 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 18: Number Of Loop Delete Records

    [All Out] or [Halfway Out]. When disabled, after the user picks up the items, it is considered that all the items have been taken out, and the access process is terminated. P a g e | 17 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 19: Allow Sharing The Compartment

    Device SN is the device’s fixed attribute, and it cannot be modified. 3.3.10 Firmware Version Firmware version is the device’s fixed attribute, and it cannot be modified. P a g e | 18 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 20: Open Locks

    After clicking the icon, the corresponding compartment will be opened. The system temporarily opens the specific compartment without deleting the connection between the user and the compartment. P a g e | 19 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 21: Network Settings

    Once the Wi-Fi is turned on, the device will search for the available Wi-Fi within the network range.  Tap on the appropriate Wi-Fi name from the available list, and input the correct password in the password interface, and then tap Save to Wi-Fi. P a g e | 20 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 22: Lan Settings

    When the device is not connected to the network, click LAN Settings on the Network settings interface. The following screen will display: P a g e | 21 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 23 The default IP is achieved automatically. Subnet Mask The default IP is achieved automatically. Gateway address The default IP is achieved automatically. The default IP is achieved automatically. P a g e | 22 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 24: Server Settings

    After the function is turned off, only registered users that already exist in the system can use the locker. It is suitable for gymnasiums, schools, and other scenes. P a g e | 23 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 25: Restart Device

    LockerPad-7B User Manual Restart Device After clicking Restart Device button, the LockerPad-7B device will automatically restart. Show Status Bar After opening, the bottom navigation bar will be displayed for operations such as exiting the locker software and closing advertisements. After the software exits, click on the ZKBioLocker software to enter the locker software interface again.

  • Page 26: Record

    The history record includes:  The user's name.  The compartment used.  The access operation.  The access time.  The access method.  Photos taken for face verification. P a g e | 25 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
