RCA RPJ104 Multimedia Projector Manual

Remove & Close The Lens Cover

Remove the lens cover before using

Close the lens cover when unit not using

Placing Your Projector

Your projector can be installed in four different configurations ( see picture below):

Front Table:
Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

Front Ceiling: Select this suspended upside-down from the ceiling in front of the screen.

NOTE: A projector mount is required to install the projector in a ceiling.

Rear Table: Select this location with the projector placed near the floor behind the screen.

NOTE: That a special rear projection screen is required.

Rear Ceiling: Select this suspended upside-down from the ceiling behind the screen.

NOTE:
A projector mount is required to install the projector in a ceiling. A special rear projection screen is required.

To Reduce Image Distortion

It is recommended to move the projector as close to center of screen.

Distance Between The Projector And Screen

Measure the distance between the projector and where you want to position the screen. This is the projection distance.

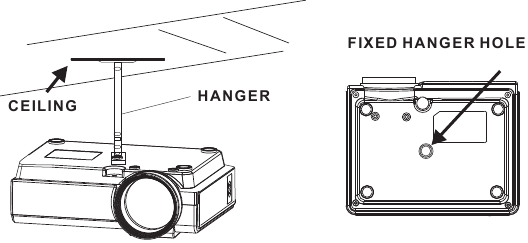

Placing Your Projector On Ceiling

When installing the projector in the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount. Before installing the projector in the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount. If in doubt, please ask the advice from an installation professorial.
NOTE: Projector mount and screw(s) not included

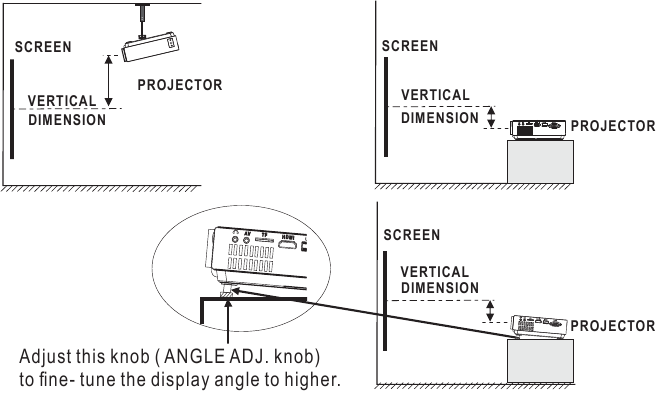

Adjust The Vertical Location

Follow below picture to adjust the vertical location.

Adjust The Focus And Keystone

Follow below picture to adjust the focus and trapezoidal screen.

Adjust the focus by turning the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible. Depending on the projected screen size, the focus near the screen edges may be less sharp than the screen center.

Keystone image is created when the projector beam is projected to the screen in an angle. Keystone correction will restore the distorted image to a rectangular or square shape.

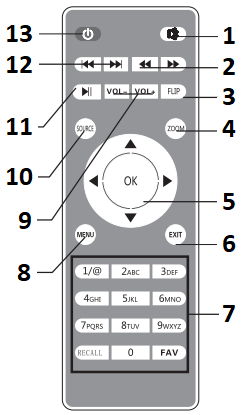

Controls Of Remote

1. MUTE AUDIO SOUND
2. SEARCH FORWARD OR REWIND
3. PRESS ROTATE SCREEN
4. ZOOM SCREEN SIZE
5. NETVIGATOR
6. EXIT THE MENU
7. OPTIONAL
8. ENTER TO MENU
9. SELECT VOLUME SOUND
10. SOURCE SOURCE SELECTOR
11. PLAY / PAUSE
12. SKIP NEXT / PREVIOUS FILE
13. POWER ON / OFF

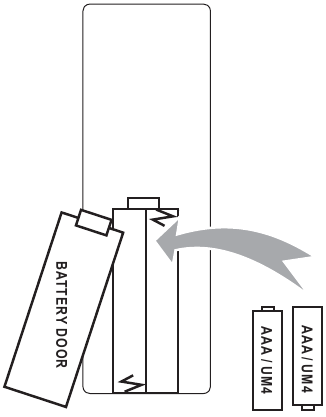

Install / Remove Battery Of Remote

Remove the battery compartment cover on the back of your remote by carefully sliding to open. The battery cover can then be lifted away. Fit the correct batteries (not included), referring to the polarity markings. Finally, replace the cover.

NOTES:

• Batteries shall now be exposed to excessive heat such as sunshine, fire
• Be sure that the battaries are installed polarity correctly.
• Do not mix old and new batteries.
• Only same or equivalent type batteries as recommend are to be used.
• Do not dispose of batteries in fire, battery may explode or leak. Do not try to recharge a battery

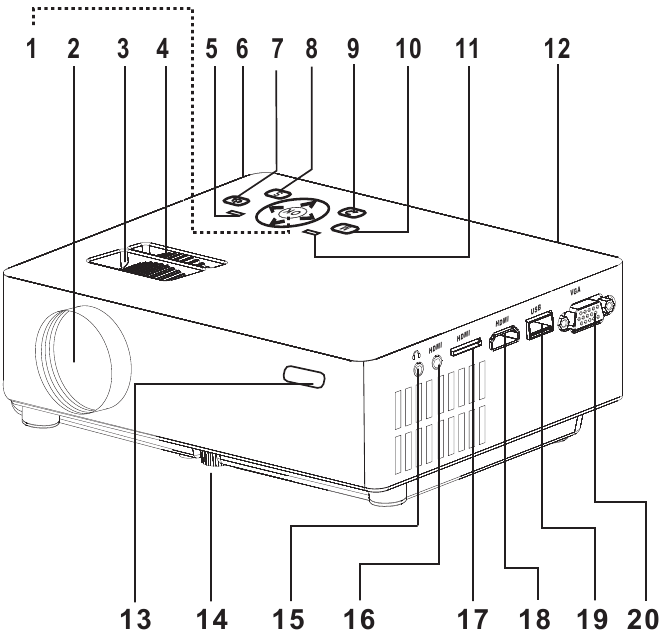

Controls Of Projector

1. NETVIGATOR Buttons
2. LENS
3. FOCUS ADJ. Knob
4. TRAPEZOIDAL ADJ. Knob
5. POWER on Indicator
6. DC IN jack
7. POWER Button
8. SOURCE Button
9. RETURN Button
10. MENU Button
11. STANDY indicator
12. IR Window ( Rear Side)
13. IR Window ( Front Side)
14. ANGEL ADJ. Knob
15. EAR PHONE Jack
16. AV OUT Jack
17. TF Card Slot ( Micro SD Card )
18. HDMI Port
19. USB Port
20. VGA Port

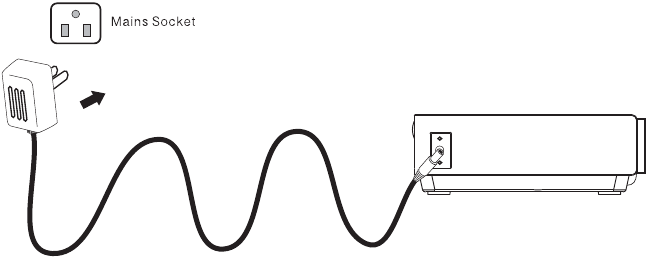

Install Power Adapter

Follow below picture to connect power adapter
Connect small end of adapter FIRST. Plug the adapter body to power outlet.

Main Operation

- Press the button to turn on unit, press again to turn off.
/ SOURCE - Press the button to select input source.
/ MENU - Press the button to enter projector menu.
- Press the buttons to select screen item of projector menu.
/ EXIT - Press the button to exit the projector menu.
- Press the buttons to fast search forward and rewind on USB / TF.
- Press the buttons to search next or previous file on USB / TF.
VOL+ / VOL - Press the buttons to select correct sound.
- Press the button to play/pause the connect USB / TF card.
FLIP – Press the button to rotate / mirror projector screen
ZOOM - Press the button to select image scale.
- Press to muting the audio sound of your projector. Press again to resume.

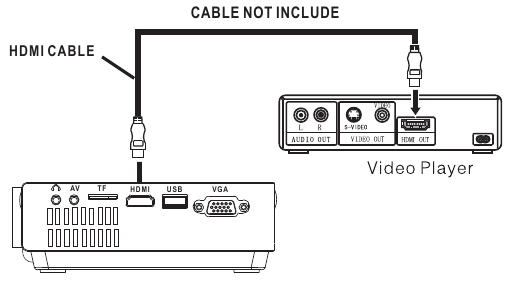

Connect HDMI Show The Image On Projector Screen

Follow below picture to connect HDMI cable and device.

1. Turn off the unit before connect HDMI cable.
2. After connect, press the button to turn on unit and power indicator will light GREEN
3. Press the / SOURCE button to HDMI mode and the video of HDMI device will show on projector screen.
4. Press the button to turn off unit power.

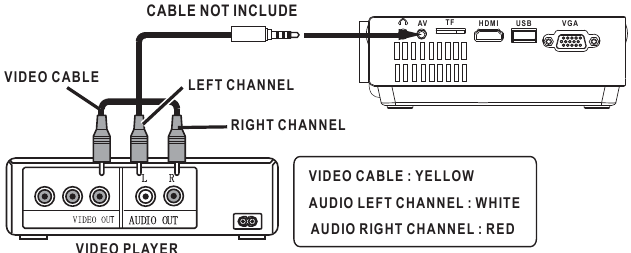

Connect AV Show The Image On Projector Screen

Follow below picture to connect AV cable and device.

1. Turn off the unit before connect AV cable.
2. Use AV cable to connect follow below figure
3. After connect, press the button to turn on unit and power indicator will light GREEN
4. Press the / SOURCE button to AV mode and the video of AV device will show on projector screen
5. Press the button to turn off unit power.

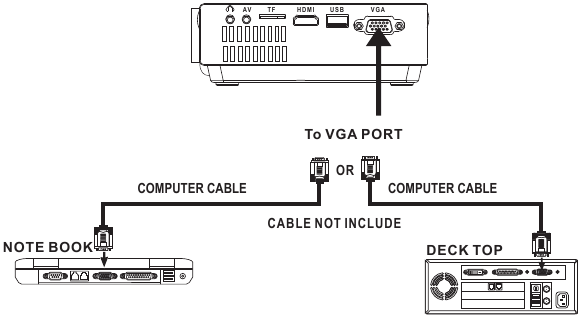

Connect VGA Show The Image On Projector Screen

Follow below picture to connect HDMI cable and device.

1. Turn off the unit before connect VGA cable.
2. Press the button to turn off power of your projector before connection.
3. A er connect, press the button to turn on unit and power indicator will light GREEN
4. Press the / SOURCE button to VGA mode and the video of VGA device will show on projector screen.
5. Press the button to turn off unit power.


Please refer to the following table to adjust the output signal from computer

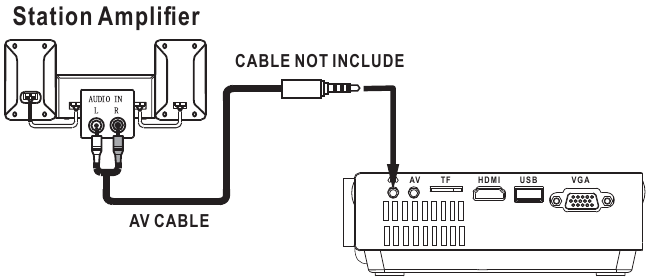

Connect Audio Output ( Aux Out / Line Out / Earphones)

Follow below picture to connect audio cable and device.

1. Press the button to turn off power of your projector before connection.
2. Use audio cable to connect follow below figure.
3. After connect and turn on both units. Your projector sound from external device now.
4. After using, turn off both unit


Install USB Device And Micro Sd Card "TF"

Follow below picture to install USB and TF card Turn off the unit before install USB / TF card.

Using TF Card And USB Playback (Media Player)

Install USB / TF device:

1. Turn off the unit before install USB / TF card.
2. Install the USB device into USB port.
3. After connect, press the button to turn on unit and the power indicator light GREEN.
4. Press the / SOURCE button to enter and use buttons to search the MEDIAPLAYER mode
5. After selection, use buttons to search the MUSIC / PHOTO / MOVIE icon and press the button to enter. If necessary, use the button to select TF card or USB and press the button to enter.
6. Use buttons to search the correct file and press the button to preview playback file and press the button of unit or button of remote to start playback.
7. Press button to fast search forward and rewind.
8. Press button to search next or previous file.
9. During playback, press the button to pause and press again to resume.

NOTE: Remove USB / TF device, press the button to turn off power FIRST.

Sub-Menu on Photo screen
When photo playback, press the buton and more function screen show on lower (figure 1). Use the button to select icon and press the button to play special function.	Figure 1
Sub-Menu on Music screen
When music playback, press the button and more function screen show on lower (figure 2 ). Use the button to select icon and press the button to play special function.	Figure 2
Sub-Menu on Movie screen
When movie playback, press the button and more function screen show on lower (figure 3). Use the button to select icon and press the button to play special function.	Figure 3

Using Bluetooth Playback

Pairing is the term used when two Bluetooth devices are connected wirelessly for the first time. This allows the devices to see each other and sets up a one to one communication channel between both devices.

Bluetooth Connection

1. Press the button to turn on unit.
2. Press the button to enter the menu screen.
3. Use the button to select right side menu.
4. Use the button to select Bluetooth column.

5. Press the button to enter Bluetooth menu.
6. Use the button to select " ON"
7. Turn on your External Bluetooth Speaker and select to Bluetooth pairing mode
8. A few seconds, you hearing " do" sound that your unit and external Bluetooth speaker connected.
9. After connection completed, the unit sound to External Bluetooth speaker.

Disconnect the Bluetooth

1. Press the button to enter the menu screen.
2. Use the button to select above menu.
3. Use the button to select Bluetooth column.
4. Press the button to enter Bluetooth menu.
5. Use the button to select " OFF" that the Bluetooth disconnect.

Using the projector Menu

Press button to enter projector menu. Press again to previous status

	Use buttons to select manual page. This manual showed on right upper of view screen.
	For service center use only.
	Use the button to select, press the button to enter and show below information.
Using Projector Menu 2.0
Press button to enter projector menu. Press again to previous status.
	Use buttons to select manual page. This manual showed on right upper of view screen.
	Use to select different picture effect to Soft / Standard / Vidid / User. Use or to select Contrast / Brightness / Color / Sharpness digit If chose User item.
	Use to select different color temperature to Cool / Medium / Warm / User. Use to select Red / Green / Blue digit If chose User item. Follow below figure.
	Use buttons to select screen ratio 4:3 or 16:9. Follow below figure.
	Use buttons to select Off / Low / Middle / High / Default.
	Use buttons to select Off / Low / Middle / High / Default.
	Use to select rotate 0 / rotate 1 / rotate 2 / rotate 3 to set screen angle.
Color temper... (temperature)
Customer define	Parameter
red	0-100
blue	0-100
green	0-100
Aspect Ratio
4:3	The signal in a 4:3 aspect ratio projection image
16:9	The signal in a 16:9 aspect ratio projection image
Using Projector Menu 3.0
Press button to enter projector menu. Press again to previous status.
	Use buttons to select manual page. This manual showed on right upper of view screen.
	Use to select different sound effect Standard / Movie / Music / Sports / User. If select User, follow below figure to set digit.
	Use to select Balance level to 0-50.
	To select Off / On.
	Use to select different sound effect to Off / Dolby Virtual / Surround.
	To select Off / On for Bluetooth connect. Set to "ON" to turn on Bluetooth function.
Sound Mode - User	Parameter
Treble	0-100
Bass	0-100
Using Projector Menu 4.0
Press button to enter projector menu. Press again to previous status.
	Use buttons to select manual page. This manual showed on right upper of viewing screen.
	Use / to select clock to Day / Month / Year / Hour / Minutes.
	Use / to select timer turn off to Day / Hour / Minutes.
	Use / to select timer turn on to Day / Hour / Minutes.
	To select sleep timer turn to Off / 10min / 20min / 30min / 60min / 90min.
	To select auto sleep function to turn Never / 4 hour / 6 Hour / 8 hour.
Using Projector Menu 5.0
Press button to enter projector menu. Press again to previous status.
	Use buttons to select manual page. This manual showed on right upper of viewing screen.
	Use button to select different language. Follow below figure.
	Use buttons to select Y or N. If choose "Y" that your unit will go to factory default setting.
	Optional

Languages

Specifications

This product is manufactured and sold by Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of RCA TrademarkManagement and are used under license by Curtis International Ltd. Any other product, service, company, trade or product name and logo referenced herein are neither endorsed nor sponsored by RCA Trademark Management or its affiliates.
