RPJ136
MODEL NO.

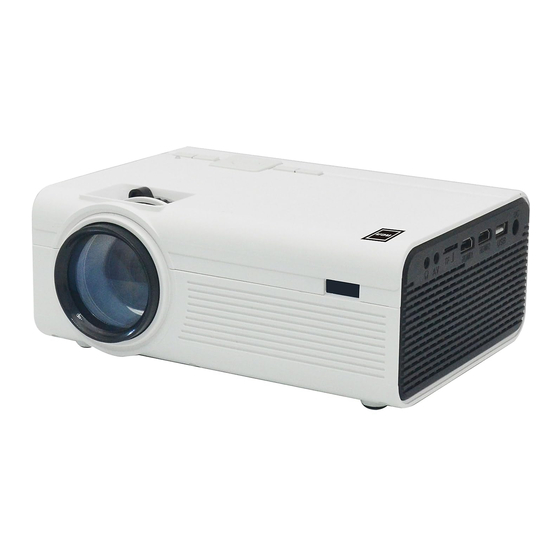

MULTIMEDIA PROJECTOR
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered
trademarks or trademarks of RCA TrademarkManagement and are used
under license by Curtis International Ltd. Any other product, service,
company, trade or product name and logo referenced herein are neither
endorsed nor sponsored by RCA Trademark Management or its affiliates.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RCA RPJ136
Summary of Contents for RCA RPJ136

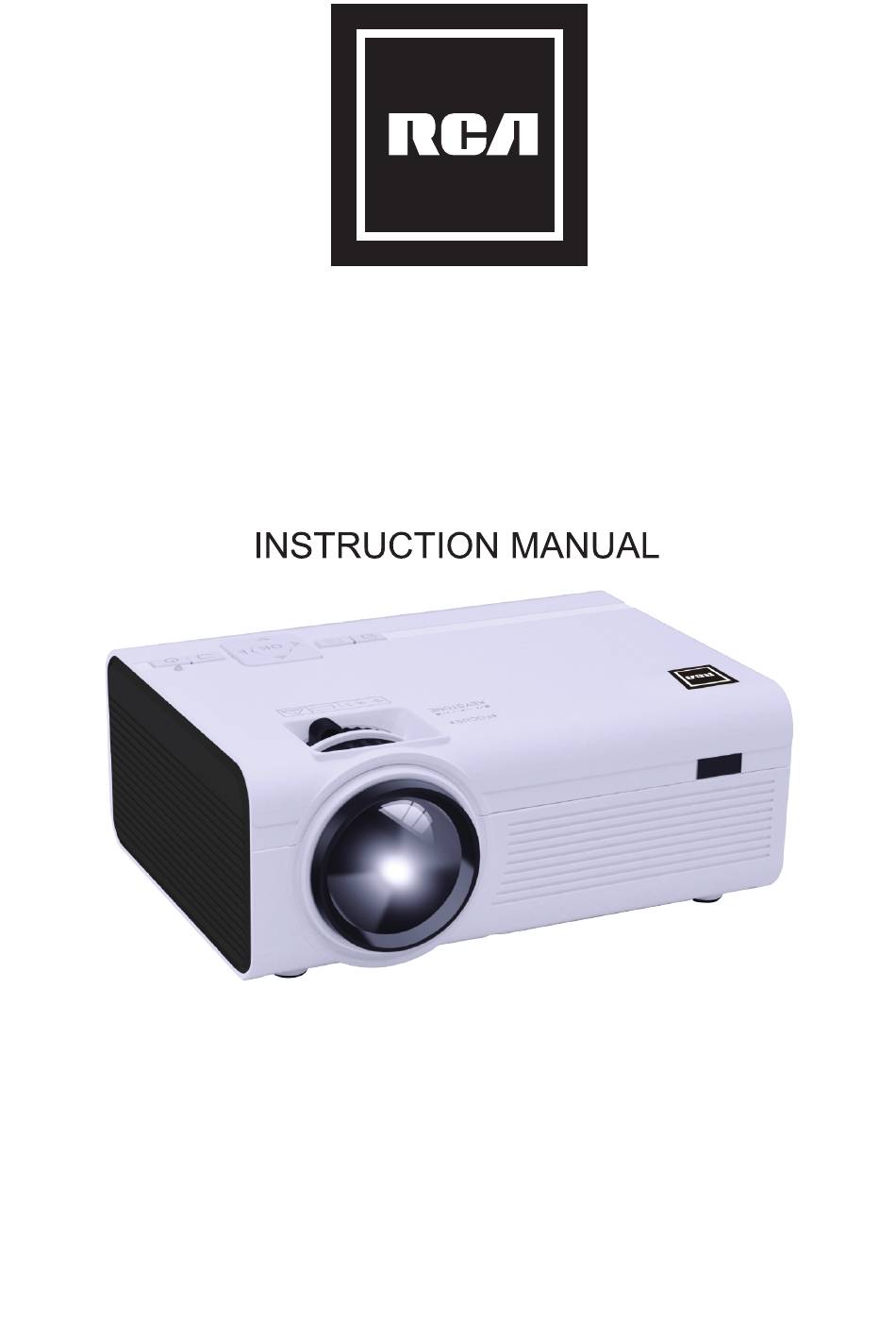

- Page 1 PLEASE READ BEFORE OPERATING THIS EQUIPMENT This product is manufactured and sold by Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of RCA TrademarkManagement and are used under license by Curtis International Ltd. Any other product, service, company, trade or product name and logo referenced herein are neither endorsed nor sponsored by RCA Trademark Management or its affiliates.
- Page 2 Important Safety Instruc ons 1. Read these Instruc ons. 2. Keep these Instruc ons. 3. Heed all Warnings. 4. Follow all instruc ons. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ven la on openings. Install in accordance with the manufacturer’s instruc ons.
- Page 3 Addi onal Warnings and Precau ons 1. Do not look directly into the projector light. 2. Don’t touch the project lens 3. Mains adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
-
Page 4: Fcc Warning
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. In The Box Main unit RPJ136 FAV/ x RECALL Remote AC Power Adapter Lens Cover... -
Page 5: Table Of Contents
Table of Contents Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - P1 Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - P2 FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4... -
Page 6: Remove & Close The Lens Cover
Remove & Close The Lens Cover Remove the lens cover before using Close the lens cover when unit not using REMOVE CLOSE LENS COVER LENS COVER Placing Your Projector Your projector can be installed in four different configurations ( see picture below): Front Table: Select this location with the projector placed... -
Page 7: Distance Between The Projector And Screen
Square /Rectangle It is recommended to move the projector as close to center of screen. Distance Between The Projector And Screen Measure the distance between the projector and where you want to position the screen. This is the projection distance. "... -
Page 8: Adjust The Vertical Location
Follow below picture to adjust the vertical location. SCREEN SCREEN PROJECTOR VERTICAL VERTICAL DIMENSION DIMENSION PROJECTOR SCREEN VERTICAL DIMENSION PROJECTOR Adjust this knob ( ANGLE ADJ. knob) to fine- tune the display angle to higher. Adjust The Focus And Keystone Follow below picture to adjust the focus and trapezoidal screen. -
Page 9: Controls Of Remote
Controls Of Remote ZOOM FLIP SEARCH NETVIGATOR EXIT MUTE MENU SKIP SOURCE PLAY /PAUSE VOLUME Install / Remove Ba ery Of Remote AAA / UM4 AAA / UM4 BATTERY DOOR Remove the battery compartment cover on the back of your remote by carefully sliding to open. -
Page 10: Controls Of Projector
Controls Of Projector 3 4 5 13 14 15 9 10 Micro SD Card HDMI Port 1 HDMI Port 2 USB Port DC IN jack VGA Port TRAPEZOIDAL ADJ. Knob POWER on Indicator FOCUS ADJ. Knob IR Window ( Rear Side) IR Window ( Front Side) LENS ANGEL ADJ. -
Page 11: Install Power Adapter
Install Power Adapter Follow below picture to connect power adapter Connect small end of adapter FIRST. Plug the adapter body to power outlet. - Press the button to turn on unit, press again to turn off. / SOURCE - Press the button to select input source. / MENU - Press the button to enter projector menu. -
Page 12: Connect Av Show The Image On Projector Screen
Connect HDMI Show The Image On Projector Screen Follow below picture to connect HDMI cable and device. Turn off the unit before connect HDMI cable. light GREEN / SOURCE Press the device will show on projector screen. There are 2 HDMI input, HDMI1 interface corresponds to HDMI 1 in SOURCE mode , and HDMI2 interface corresponds to HDMI 2 in SOURCE mode. -
Page 13: Connect Vga Show The Image On Projector Screen
Connect VGA Show The Image On Projector Screen Follow below picture to connect HDMI cable and device. Turn off the unit before connect VGA cable. Press the button to turn off power of your projector before connection. light GREEN / SOURCE Press the will show on projector screen. -
Page 14: Connect Audio Output (Aux Out / Line Out / Earphones)
Connect Audio Output ( Aux Out / Line Out / Earphones) Follow below picture to connect audio cable and device. Press the button to turn off power of your projector before connection. Use audio cable to connect follow below figure. After connect and turn on both units. -
Page 15: Using Tf Card And Usb Playback
Using TF Card And USB Playback (Media Player) Install USB / TF device: 1. Turn off the unit before install USB / TF card. 2. Install the USB device into USB port. GREEN. / SOURCE 4. Press the search the MEDIAPLAYER mode. button to remote to start playback. -
Page 16: Using Projector Menu 1.0
Using Projector Menu 1.0 Press button to enter projector menu. Press again to previous status. Picture Mode Standard buttons to select manual page. Contrast Brithness This manual showed on right upper of view Color screen. Sharpness Tint Color Temperature Medium Aspect Ratio Auto Noise Reduction... -
Page 17: Using Projector Menu 2.0
Using Projector Menu 2.0 Press button to enter projector menu. Press again to previous status. Sound Mode Standard Treble buttons to select manual page. Bass This manual showed on right upper of view Balance screen. Auto Volume Surround Sound Off TO SELECT to select different sound effect Standard / Movie / Music / Sports / User. -
Page 18: Using Projector Menu 3.0
0 / rotate 1 / rotate 2 / Panel Flip Rotate 0 PRESS OK rotate 3 to set screen angle. TO SELECT INFO PRESS OK Model: FDX-A01 SN:RPJ136 SW Ver: V7.0 LOGO: RCA FL040CT_30 English Hrvatski Nederlands Chinese Franais... -
Page 19: Using Projector Menu 4.0
Using Projector Menu 4.0 Press button to enter projector menu. Press again to previous status. Clock - - - - buttons to select manual page. Off Timer Off On Timer Off This manual showed on right upper of viewing Sleep Timer Off screen. -
Page 20: Specifications
Specifications Light Source Type 800 x 480 Display Native Resolution 1080p , 1080i , 720p, 576i , 480p, and 480i HDMI Input Supported Video Resolution. Operating 36W; Standby 0.8W Power Consumption Power Input DC 12V , 3.5A Connect Included Adapter Included Adapter Input AC100-240V,50/60Hz Connect DC input of unit... -
Page 21: Troubleshooting
TROUBLESHOOTING Before resorting the maintenance service, please kindly check by yourself with the following chart. 1.Power light is on. If it is not on, check the projector is plugged into the mains, that the socket is switched on, and then press the power button on the projector.
Need help?
Do you have a question about the RPJ136 and is the answer not in the manual?
Questions and answers
How do I connect my RCA RPJ136 Projector to a RCA speaker with red positive and black negative cables, what would I need?
To connect an RCA RPJ136 projector to an RCA speaker using red (positive) and black (negative) cables:
1. Turn off the projector before making any connections.
2. Use an audio cable that matches the projector’s audio output and the speaker’s input. If your speaker uses bare wire (red and black), you may need a 3.5mm to RCA adapter or a compatible amplifier.
3. Connect the audio output from the projector to the speaker:
- If the projector has a 3.5mm audio output jack, use a 3.5mm to RCA cable.
- Connect the red wire to the red (positive) terminal and the black wire to the black (negative) terminal on the speaker.
4. Power on both the projector and speaker after connection.
This setup will allow sound from the projector to play through the external RCA speaker.
This answer is automatically generated
Can the projector play what's on your phon3
The RCA RPJ136 projector has HDMI, AV, and VGA connectivity options. If a smartphone supports HDMI output (via an adapter, such as HDMI to USB-C or Lightning), it can be connected to the projector to play content. However, direct wireless screen mirroring is not mentioned in the provided information.
This answer is automatically generated
Can projector be connected to a smart phone
Yes, the RCA RPJ136 projector can be connected to a smartphone. For an iPhone, a lightning to HDMI adapter is required. For an Android phone, a Micro USB or Type C to HDMI adapter is needed. These adapters are sold separately.
This answer is automatically generated
