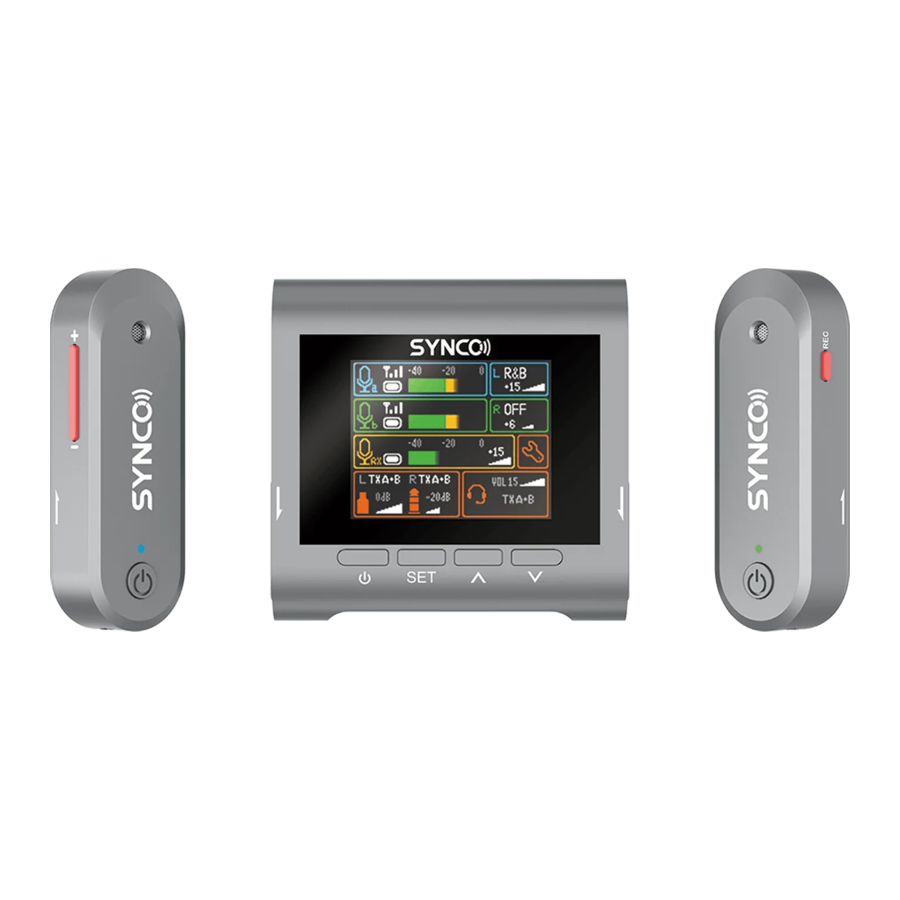

Synco G3 - Wireless Recording Microphone Manual

Caring For Your SYNCO Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, impact of external force.
• Do not attempt to disassemble the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
• Failure to follow all the instructions may result in mechanics damage.
• Warranty does not apply to human errors.

Package List

RX Receiver x1
TX Transmitter x2
Mic Windshield x2
TRRS to TRRS Cable x1
Type-C to Type-C Cable x1
Carrying Bag x1
User Manual x1
Lightning to Type-C Adapter x1
Usb-A to Type-C Adapter x1

Product Introduction

TX Transmitter

1. Volume Control Button
2. Built-In Mic
3. Switch Button
4. 3.5mm Monitoring Port
5. Recording Button
6. Pocket Clip
7. Contacts (For Charging And File Transmission)

RX Receiver

1. Switch Button/Back Button
2. Setting Button
3. Up Option Button
4. Down Option Button
5. Display Screen
6. Type C/Digital Output Port
7. 3.5mm TRS/TRRS Output
8. 3.5mm Monitoring Port
9. Rx Built-In Mic
10. Pocket Clip

TX Indicator

Working Indicators	Blue/green indicator on transmitter corresponds to the A/ B transmitter shown on the receiver screen
	Blue/green indicator flashes	The transmitter waiting for connection
	Blue/green indicator keeps on	The transmitter successfully connected to the receiver
	Blue / green indicator lights up and flashes at the same time	Reset completed
	Orange indicator on	Charging
	Orange indicator off	Fully charged

Recording Indicators	Red indicator on	Recording on
	Red indicator off	Recording off

Operations

Tx Transmitter

Power On

Method1:Push out the TX upwards in the direction shown in the figure. The TX automatically powers on and the blue and green indicators light up and flash.

Method 2:Long press the switch button on the front of the transmitter for 3 seconds, and the blue and green indicators light up and flash.

Power Off & Charging

Method 1:Slide the TX into the receiver in the direction shown in the figure, and the orange indicator lights on for automatic charging. The orange indicator turns off and the TX automatically shut down when fully charged.

Method 2:Long press the switch button on the front of the TX for 3 seconds, the blue/green indicator turns off, and the TX shut down.

Method 3:The TX automatically shuts down in 5 minutes when there is no connection or recording.

Reset

The TX automatically power on when took out from the RX. Long press the switch button for 3 seconds to shut it down, then long press the switch button for 8 secondsuntil the blue and green indicator flashe. Reset completed.

Recording

Recording on: Long press the recording button on the side of the TX for 3 seconds until the red light on.

Recording off: Long press the recording button for 3 seconds until the red light turns off.

Note: A single recording audio file lasts for a maximum of 22 hours (48K16bit)

File Transfer

Put back the TX into the RX and set the card reading mode in the RX to read the files.

Monitoring

Insert the listening device into 3.5mm monitoring port for the RX input sound, such as the RX microphone sound/the RX input audio from mobile phone.

Adjust the five-level monitoring volume when press the volume button on the TX.

Note: This port of the TX is used as output only, not input.

RX Receiver

Power On /Off

Long press the power button on the RX for 3 seconds until the screen turns on/off to switch on/off.

Reset

Press the up and down buttons for 8 seconds to reset the RX when power on.

Paring

Automatic paring:
Take out the TX after turn on the RX, the TX will automatically turn on and pair with the RX.

Manual pairing:
Method 1:After the RX turns on, enter the setting panel for pairing without taking out the transmitter,
Method 2:Take out the TX and reset it first. Enter the setting panel for when the receiver powers on.

File Transfer

1. Connect the Type-C port of the RX to the output of the mobile phone/computer through adaptor cable.
2. Connect the 3.5mm OUT output port of the RX to the device such as camera through TRRS/TRS cable.
3. The 3.5mm monitoring port of the RX is used for monitoring and can be set as the TRS output port in the Settings panel.

The output LR has 3 channels: TXA-TXB-RX. The device supports a maximum of 3 outputs, and the output devices corresponding to TRRS and TRS channels can be combined freely.

Monitoring

3.5mm Monitoring port of the RX supports 32 ω earphones for in-ear monitoring to mobile phone input or computer input audio.

Display Screen

1. Transmitter A
2. Transmitter B
3. Transmitter Signal
4. Transmitter Power
5. Transmitter Power Level
6. Sound Effect Of Left Channel
7. Gain Value Of Left Channel
8. Sound Effect Of Right Channel
9. Gain Value Of Right Channel
10. Receiver
11. Receiver Power
12. Power Level Of Receiver Microphone Power Level
13. Gain Value Of Receiver
14. Frequency Setting/Version Information
15. Output Channel Option
16. USB Port Output Gain
17. 3.5Mm Port Output Mode
18. 3.5Mm Port Output Gain
19. Monitoring Port Output Mode
20. Output Channel Option
21. Monitoring Port Volume

Interface Selection and Button Operation

1. Press the Setting button or the Up and Down Option button. The screen highlights shows the selected panel.
2. Press the Up and Down option buttons to switch the panel, and then press the Settings button to select the operation page of the settings panel.
3. On the operation page, press the Up and Down button to switch between different parameter categories. Press the operation button again as the screen flashes as a prompt. Press the Up and down option key to switch between different options of this parameter.
4. Press the Power/Return button to return to the previous stage.

Setting Content Description

1. When the TX A/B memory card is full, the icon will blink red. After selecting the panel of TX A/B, press the setting button to enter the operation page to mute the microphone and view the recording duration.

2. On the operation page of the RX panel, you can mute the receiver microphone and modify the gain.
3. Enter The Operation Page Of The Channel Panel:
   (1) The noise reduction gear of the channel can be changed. There are three level noise reduction: 75/150/300.
   (2) The high frequency lifting of the channel can be set on/off.
   (3) 5 EQ sound effects can be selected for the channel.
   (4) The gain adjustment of the sound channel can be set.

4. Enter the frequency setting operation panel to open the frequency and view the version. When the frequency matching function is enabled, a status pop-up will be displayed, indicating the frequency matching succeeds or fails.
5. The output panel operation page is displayed. The output of the 3.5mm port is (TRRS/TRS), and different microphones are selected for different channels.
   The function of type -C port is as follows: charging only/ data reading + charging/ reading L transmitter memory file/ reading R transmitter memory file/ mobile phone mode.


NOTE:

1. Select Phone mode in the Setting if heat occurs when using the Apple adapter or Type-C connection to the phone. In this case, the phone will not supply power to the receiver in reverse, reducing the heat generated by the interface, and the phone will powered up longer.
2. Please check whether the receiver is set to TRRS, when using 3.5 TRRS audio cable to connect mobile phone. (TRRS is for mobile phone, TRS is for camera).

6. Enter the operation page of the monitoring panel, you can adjust the monitoring volume of the receiver and switch the monitoring port mode. After the 3.5mm monitoring port is set from monitoring to output, the output mode and volume are associated with the setting of the out port.

Specifications

TX Transmitter

Microphone

RX Receiver

Microphone
