Synco P1T / P1L - Wireless Microphone Manual and Video Review

Caring For Your SYNCO Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, impact of external force.
• Do not attempt to disassemble the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
• Failure to follow all the instructions may result in mechanics damage.
• Warranty does not apply to human errors.

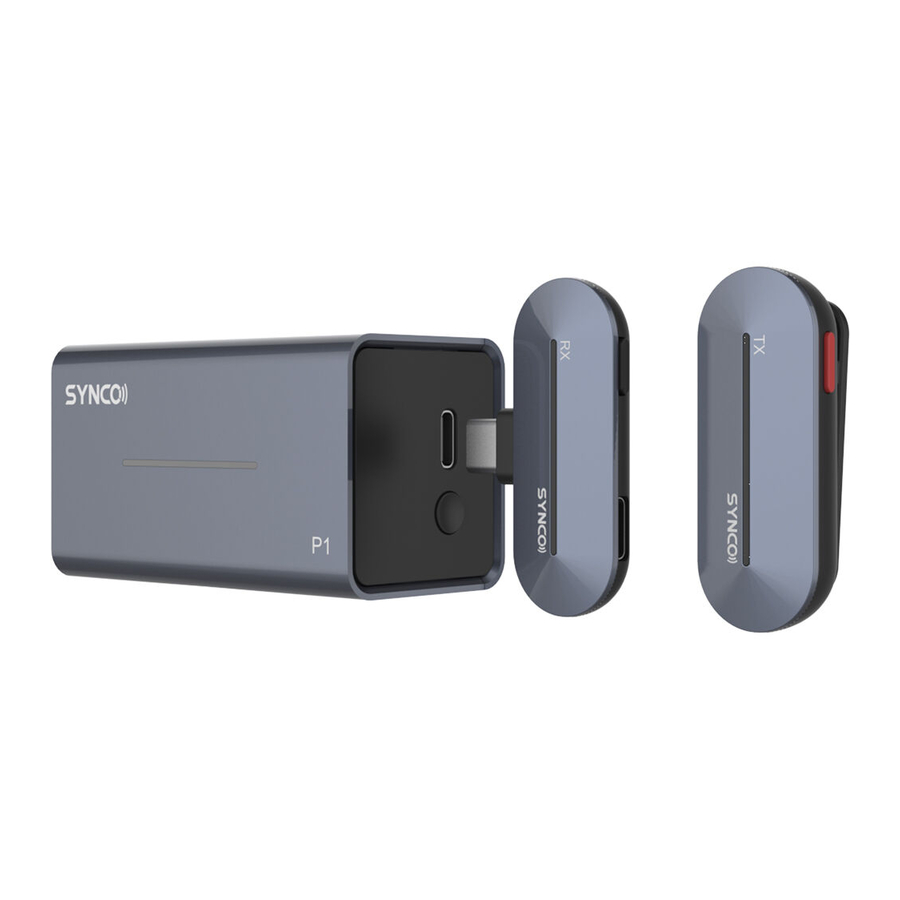

Package List

TX Transmitter x1
RX Receiver (Type-C or Lightning Connector) x1
Wireless Charging Case x1
Charging Cable x1
Type-C to 3.5mm Adapter x1

Product Instruction

TX Transmitter

1. Power
2. Working Indicators
3. Built-in Mic
4. Contacts
5. Pocket Clip

RX Receiver

1. Vocal Effects
2. Type-C Port
3. Working Indicators
4. Connector
5. Contacts

Wireless Charging Case

1. Pairing/ Power Prompt
2. Type-C Port
3. Working Indicators
4. Contacts

Indicator — Transmitter (Double press the Power button to turn off light effect)

Working Indicators (White Light)
Flash concurrently	System unpaired
Single light flashes	Low battery
Illuminate sequentially (Light effect on)	System paired, normal working
Single light keeps on (Light effect off)	System paired, normal working
Working Indicators (Red Light)
Single light keeps on (In the case)	Charging, and then turns off when fully charge

Indicator — Receiver

Working Indicators (White Light)
Flash concurrently	System unpaired
Illuminate sequentially	System paired
Single light keeps on & Illuminate sequentially	Original sound
Single light flashes twice & Illuminate sequentially	Vocal effects on

Indicator — Wireless Charging Case

Working Indicators (White Light)
Illuminate sequentially	Pairing

Operations

Usage

1. Tap on the right side of charging case to pop out the drawer

2. Take the TX and RX out
3. TX should boot automatically as it leaved the case, and switch itself off automatically when returning to the case.
   (Forcible switch: Long press the Power button on TX for 3 seconds)
4. RX should boot automatically as it is plugged into smartphone

Manual Pairing

1. Place the TX and RX in the case with their contacts are connected with the case's
2. Long press the Pairing button on the case for 3 seconds with the drawer open

3. The indicators on the TX and RX should light up and illuminate sequentially when pairing is successful

Note: The transmitter will automatically switch off if it is unpaired or disconnected for 5 minutes

Charging

Charge the TX: Place the TX in the case with contacts connected with the case's.
Charge the case: Connect the case with power supply via the charging cable.

Check the power

TX: Short press the Power button, the indicators will light up according to remain power for 5 seconds
Charging Case: Short press the Power Prompt button, the indicators will light up according to remain power for 5 seconds

Use vocal effects

Short press the Vocal Effects button on the receiver to switch sound effects: Original >> Studio FX >> KTV FX >> Voice Amplification >> EDM (Electronic Dance Music) >> Baby FX >> Male to Female >> Female to Male >> Monster FX.
Default effect: Original

Charging phone device

Plug your phone charging cable into the Type-C Port on the receiver.

In-Ear monitoring

Plug the included Type-C to 3.5mm Adapter into the Type-C Port on the receiver. Then plug in your headphones to real-time monitor mic recording and device's backgrounding.
Note: The included Type-C to 3.5mm Adapter is exclusive, not available for other devices.

Specifications

TX Transmitter

RX Receiver

Wireless Charging Case

Warranty

1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product..
2. The warranty period begins on the date of purchase of brand new, unused products by the first end-user.. Original SYNCO products are entitled to 12-month limited warranty service.

• If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact SYNCO's customer service through email at support@syncoaudio.com.

Guangzhou Zhiying Technology Co., Ltd

Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
support@syncoaudio.com
www.syncoaudio.com
https://www.facebook.com/syncomicrophones

Videos

P1L Video Review

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Synco P1T / P1L - Wireless Microphone Manual and Video Review
