Guangzhou Zhiying Technology Co., Ltd

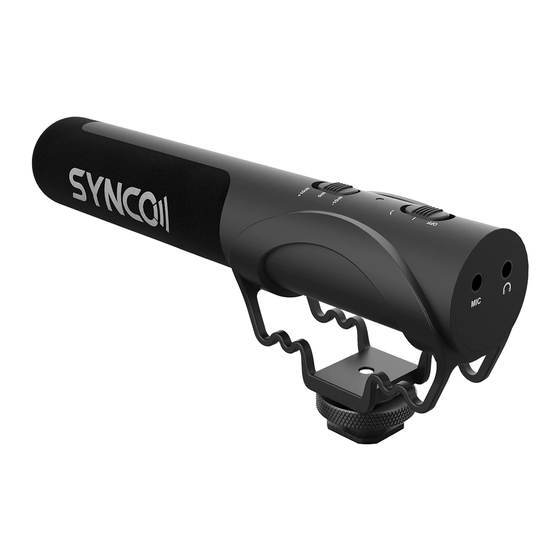

Mic-M3 Microphone
Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
User Manual
support@syncoaudio.com
Thank you for choosing SYNCO Mic-M3,
www.syncoaudio.com
Please read this manual carefully before use and follow all instructions mentioned herein.
https://www.facebook.com/syncomicrophones
Advertisement
Table of Contents
Related Manuals for Synco Mic-M3
Summary of Contents for Synco Mic-M3
- Page 1 Guangzhou Zhiying Technology Co., Ltd Mic-M3 Microphone Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000 User Manual support@syncoaudio.com Thank you for choosing SYNCO Mic-M3, www.syncoaudio.com Please read this manual carefully before use and follow all instructions mentioned herein. https://www.facebook.com/syncomicrophones...
-
Page 2: Table Of Contents
Contents Package List.............................1 Feature Introduction........................2 Warning.............................2 Main Structure..........................3 Function Introduction........................4 ① 100Hz High-Pass Filter ② Gain Adjustment ③ Powered by Two AAA Batteries ④ Specifications Mount on Camera, Smartphone and Tripod................6 Trouble Shooting..........................7 Warranty............................8... -
Page 3: Package List
Super Cardioid Polar Pattern, Interference Tube A Selectable 100Hz High-Pass Filter for Environmental Noise Reduction Powered by 2 pieces of AAA Batteries Support (-10，0，+10db) Gain Adjustment SYNCO Mic-M3 Microphone x1 LED Working Status Light Canvas Pouch x1 3.5mm Port for Audio Monitoring... -
Page 4: Main Structure
Main Structure Function Introduction 1. 100Hz High-Pass Filter Open the High-Pass Filter Turn on the microphone(LED indicator shining) Turn off the microphone 2. Gain Adjustment Increase 10dB Output Gain 10dB 0dB Output Gain Reduce 10dB Output Gain -10dB 3. Powered by Two AAA Batteries ①... -
Page 5: Mount On Camera, Smartphone And Tripod
4. Specifications Mount on Camera, Smartphone and Tripod Element Back Electret Condenser Polar Pattern Super Cardioid Frequency Response 30Hz-20KHz Signal to Noise Ratio ＞78dB, A-Weighted Dynamic Range 119dB Maximum SPL 135 dB SPL Camera (3.5mm-TRS cable) Smartphone(3.5mm-TRRS cable) Sensitivity -41dB±2dB RL=0.68KΩ Vs=1.5V (1KHz 0dB=1V/Pa) Output Impedance 0.68KΩ... -
Page 6: Trouble Shooting
Keep a distance with the sound source. Artificial damage, e.g. crash, squeeze, scratch, or soaking Modifications to a product by its user or a third party without prior written consent of SYNCO, e.g. replacement of element or circuit, label alteration... - Page 7 Customer Name: is missing, only sales return or chargeable service will be provided. Phone Number: USER If the SYNCO product is out of the warranty coverage, the service and the parts cost will be charged. INFORMATION Email: Address: Sales Date:...
