Wiring Diagram Package 4 - Code 3 CELS Installation Manual

PAR36 LT HD
DRIVER SIDE
TYP SEE PAGE 5 CHART
FOR WIRE COLORS
TYP SEE PAGE 5 CHART
FOR WIRE COLORS
NOTE: THE PAR36 & THE XT4 MIRROR LIGHT OUTPUTS
ARE TIED (SYNCRONIZED) TO LIGHT TOGETHER
SIMULTANEOUSLY! THE OUTPUT WIRES THAT ARE
SYNCRONIZED ARE AS FOLLOWS!
BLUE WIRE OUTPUT IS SYNCD WITH THE YELLOW
GRAY WIRE OUTPUT IS SYNCD WITH THE ORANGE / BLK
ORANGE WIRE OUTPUT IS SYNCD WITH THE GRAY / BLK
BLUE / BLK WIRE OUTPUT IS SYNCD WITH THE YELLOW / BLK
REAR
OUTPUT
WIRES
WIRES 1 THRU 6
ARE ARROWSTIK
DUAL & SINGLE
COLOR LIGHT
HEAD WIRES
NOTE: WIRES 7 THRU 12
ARE FOR DUAL COLOR CITADEL
ONLY! DO NOT CONNECT THESE
WIRES IF YOU HAVE A SINGLE
COLOR CITADEL
THESE BUTT
SPLICES NOT
REQUIRED

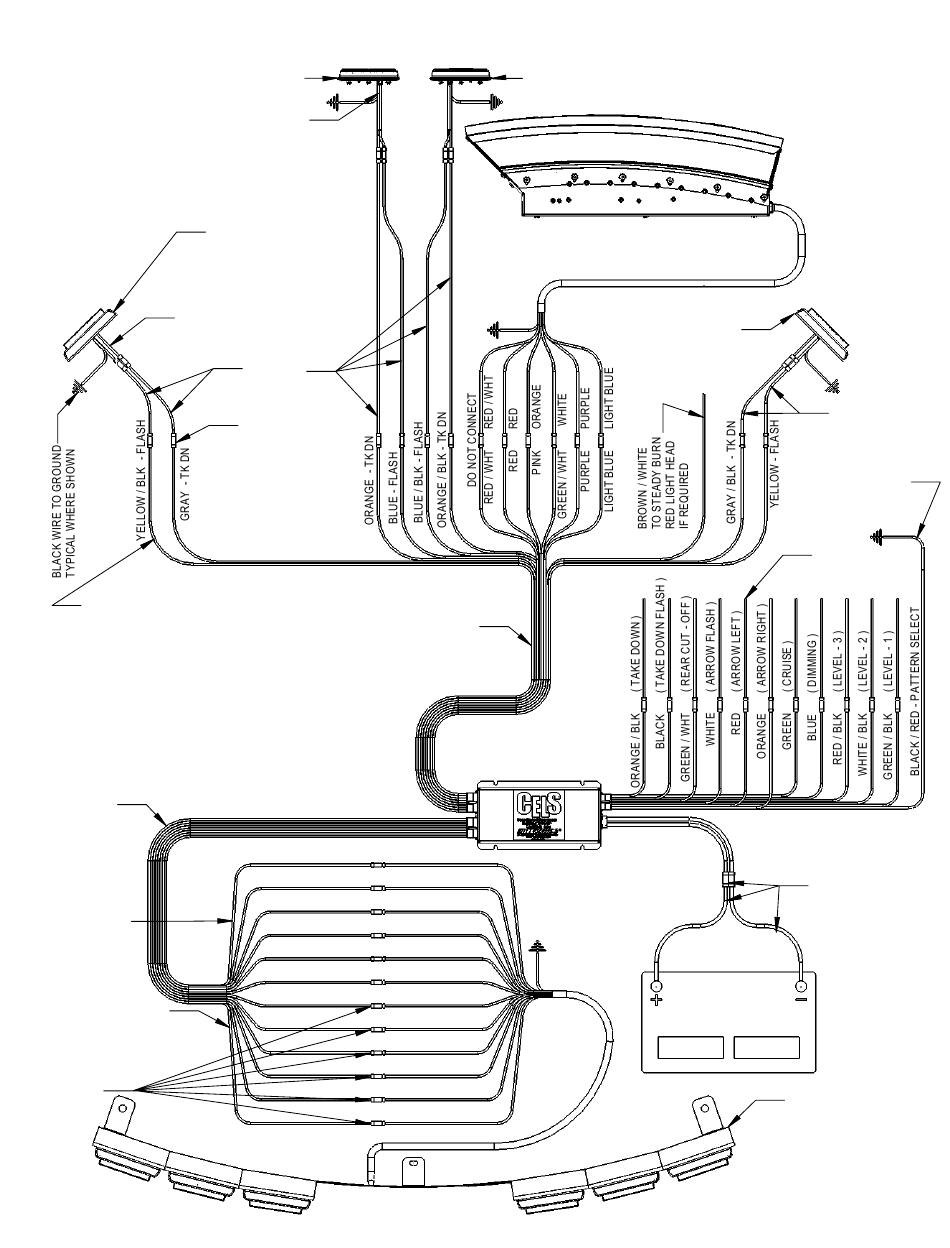

CELS WIRING DIAGRAM - PACKAGE - 4
DRIVER
SIDE VIEW
XT4 MIRROR
LIGHT
CUSTOMER
SUPPLIED
WIRE TYP
CUSTOMER
SUPPLIED
22 AMP
BUTT SPLICE
TYPICAL
YELLOW 1 YELLOW
GRAY 2 GRAY
GREEN 3 GREEN
VIOLET 4 VIOLET
TAN 5 TAN
ORANGE 6 ORANGE
7
8
9
10
11
12
CITADEL
PAR36 LT HD
PASSENGER SIDE
PASSENGER SIDE
SUPERVISOR-U
FRONT
OUTPUT
WIRES
9
PASSENGER
SIDE VIEW
XT4 MIRROR
LIGHT
ATTACH BLACK / RED
WIRE TO GROUND
AFTER PROGRAMMING
IS COMPLETE
CUSTOMER
SUPPLIED
WIRE TYP
CONTROL INPUT
WIRES
POWER & GROUND
WIRES WILL REQUIRE
CUSTOMER SUPPLIED
12 GAGE WIRE, 12 GAGE
BUTT SPLICES, & 20 AMP
FUSE
FORD PI SUV CITADEL
SHOWN. WIRING IS THE
SAME FOR THE TAHOE
CITADEL
CUSTOMER
SUPPLIED
WIRE TYP
