Wiring Diagram Package 6 - Code 3 CELS Installation Manual

REAR
OUTPUT
WIRES
WIRES 1 THRU 6
ARE ARROWSTIK
DUAL & SINGLE
COLOR LIGHT
HEAD WIRES
NOTE: WIRES 7 THRU 12
ARE FOR DUAL COLOR CITADEL
ONLY! DO NOT CONNECT THESE
WIRES IF YOU HAVE A SINGLE
COLOR CITADEL

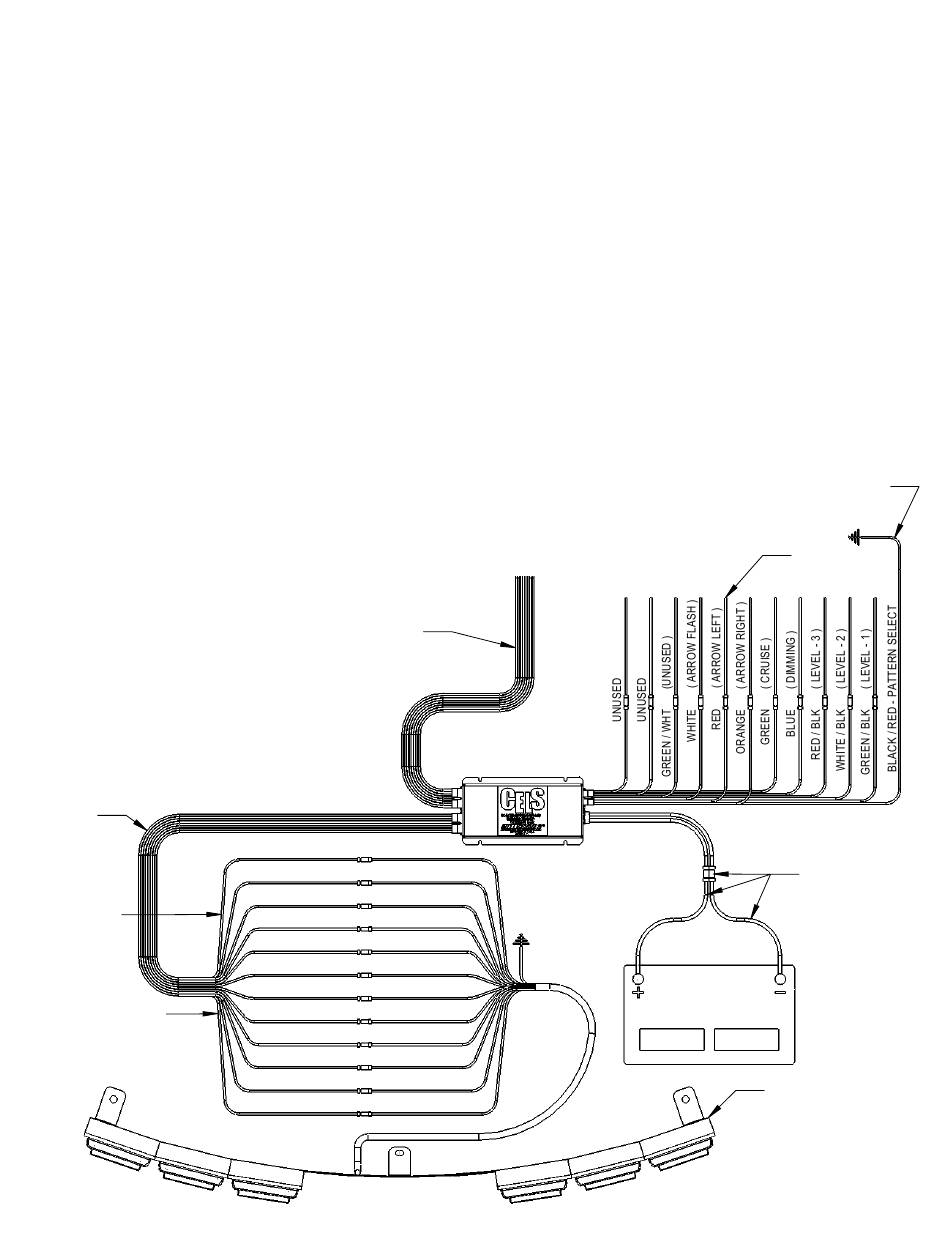

CELS WIRING DIAGRAM - PACKAGE - 6
FRONT
OUTPUT
WIRES
NOT USED
YELLOW 1 YELLOW
GRAY 2 GRAY
GREEN 3 GREEN
VIOLET 4 VIOLET
TAN 5 TAN
ORANGE 6 ORANGE
BLUE 7 BLUE
WHITE 8 WHITE
PINK 9 PINK
GREEN / WHT 10 GREEN / WHT
RED / WHT 11 RED / WHT
BROWN 12 BROWN
CITADEL
11
ATTACH BLACK / RED
WIRE TO GROUND
AFTER PROGRAMMING
IS COMPLETE
CUSTOMER
SUPPLIED
WIRE TYP
CONTROL INPUT
WIRES
POWER & GROUND
WIRES WILL REQUIRE
CUSTOMER SUPPLIED
12 GAGE WIRE, 12 GAGE
BUTT SPLICES, & 20
AMP FUSE
FORD PI SUV CITADEL
SHOWN. WIRING IS THE
SAME FOR THE TAHOE
CITADEL
