3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.2 Gen 1 B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

3.3 Jumper Settings

The EX-1185HMVS-2 will be delivered with the setting Bus-Power.
cut the power at the data line.

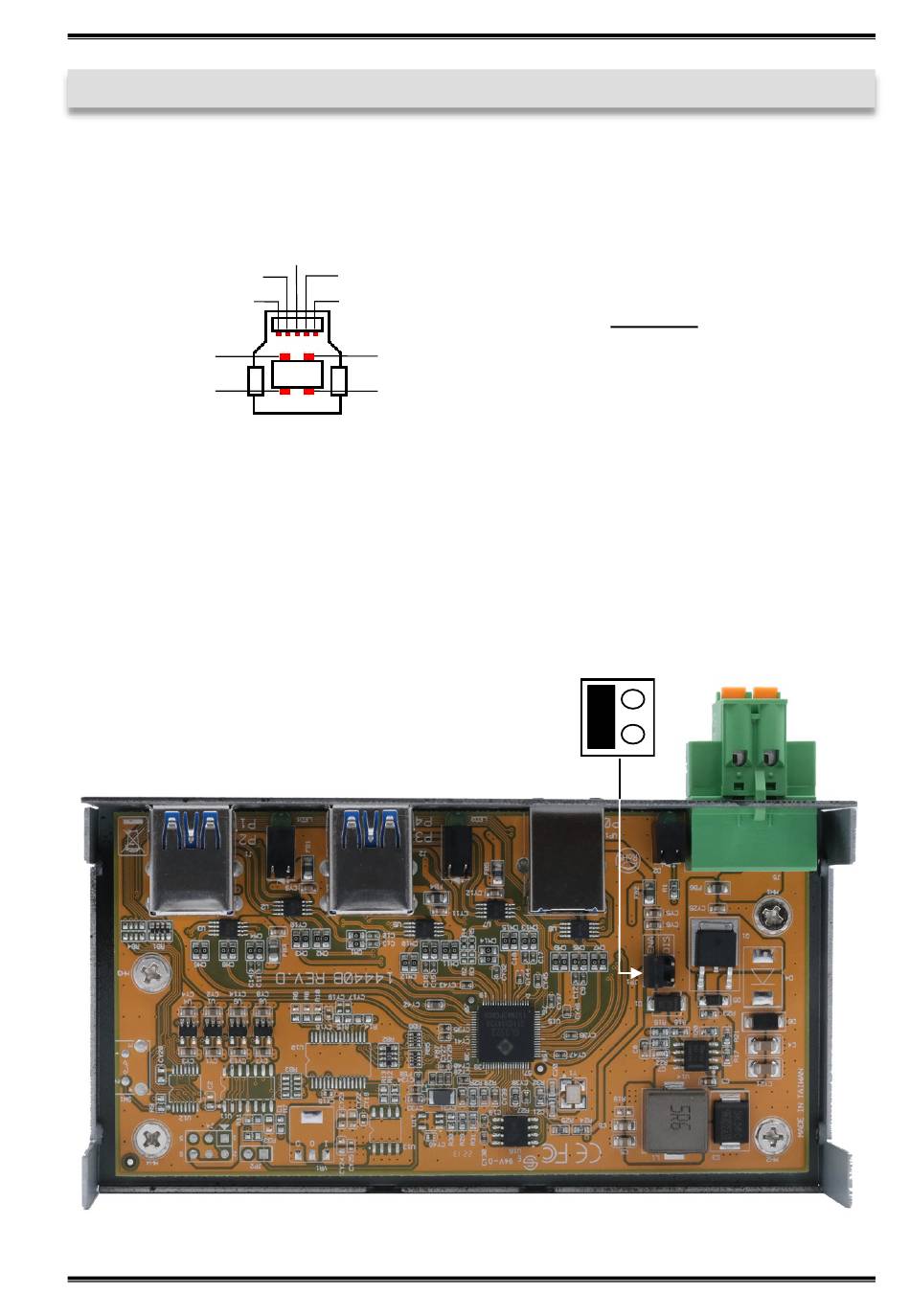

Then you must set the jumper JP9 from ENA (Enable) to DIS (Disable). See the following picture.
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
For this you open the case with the four screws on both sides.
Attention!
Never plug in with force
or in wrong direction.
But you have the possibility to
ENA DIS
