Zoeller 810 Owner's Manual

NOTICE TO INSTALLER: Instructions must remain with installation.
Product information presented
here re fl ects con di tions at time
of publication. Consult factory
re gard ing dis crep an cies or
in con sis ten cies.
visit our web site:
www.zoeller.com

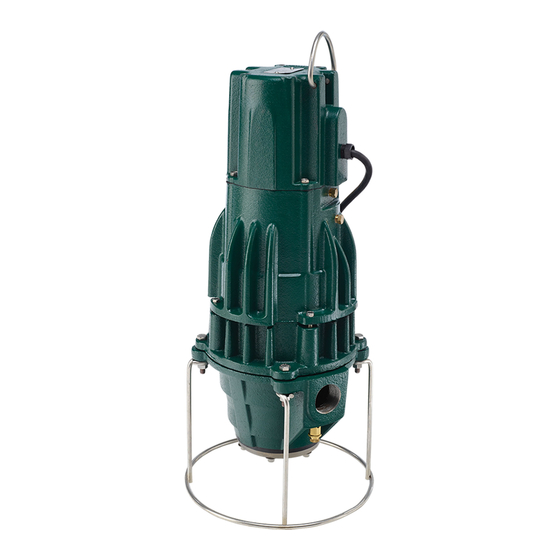

MODELS 810 & 815 SUBMERSIBLE GRINDER UNITS
Congratulations on the purchase of a Zoeller submersible
progressing cavity grinder pump. For over sixty years the name
Zoeller has rep re sent ed the standard for sub mers ible de w a ter ing
and sew age pumps. The same high quality work man ship and
easy main te nance design has been in cor po rat ed into this line
of heavy-duty sub mers ible progressing cavity grinder pumps.
This Zoeller pump will pro vide years of trou ble-free service when
installed ac cord ing to the manufacturer's recommendations.
This manual in cor po rates the in stal la tion, operation,
Maintenance, and service instructions into one doc u ment to aid
Table of Contents

Safety Instructions ....................................................................... 1

Limited Warranty, Checklist And Application ..........................2-3
General Information ..................................................................... 3
Pump Wiring Instructions ............................................................ 4
Typical Outdoor Prepackaged System ....................................... 5
Installation And Operation Instructions ...................................... 6
Maintenance .................................................................................. 7
Service Checklist .......................................................................... 8
Owner's Information
Model Number: ______________ Date Code: _______________
Simplex
Packaged System
Job Name: ____________________________________________
Distributor: ____________________________________________
Date of Purchase: _________ Zoeller S/O No.: ______________
Contractor: ____________________________________________
Date of Installation: ____________________________________
System Readings During Start-up: Voltage _____ Amps ______
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
OWNER'S MANUAL
Duplex
Field Assembled System
© Copyright 2010 Zoeller Co. All rights reserved.
in the own er ship of a Zoeller submersible wastewater prod uct.
Please read and re view this manual before installing the prod uct.
Follow the steps in this manual for a proper start-up. Many items
con tained with in, when fol lowed cor rect ly, will not only ensure
a long and prob lem-free life for the pump, but also save time
and money during installation. Ref er ence FM2435 and FM2436
for replacement parts on 810 and 815 Series Progressing
Cavity Grind er Pumps respectively. Should fur ther as sis tance
be necessary please call our Tech ni cal Ser vice De part ment at
1-800-928-PUMP (7867).
Safety Instructions
TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MA JOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND ON THE PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE IN STAL LA TION
AND OPERATION OF THIS UNIT AND MUST BE KEPT WITH
THE PUMP.
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the pump or in the
man u al, look for one of the following signal words
and be alert to the potential for personal injury or
property damage.
Warns of hazards that WILL cause serious personal
injury, death or major property damage.
Warns of hazards that CAN cause serious personal
injury, death or major property damage.
Warns of hazards that CAN cause personal injury
or prop er ty damage.
INDICATES SPECIAL INSTRUCTIONS WHICH ARE
VERY IMPORTANT AND MUST BE FOLLOWED.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND WARNINGS
PRIOR TO PERFORMING ANY WORK ON THIS PUMP.
MAINTAIN ALL SAFETY DECALS.
REFER TO WARRANTY ON PAGE 2.
1
SECTION: 6.10.025
FM2458
0610
Supersedes
0809
