Zoeller 810 Manual

NOTICE TO INSTALLER: Instructions must remain with installation.
Product information presented
here reflects conditions at time of
publication. Consult factory regarding
discrepancies or inconsistencies.
*
* NOTE: Applicable to 50 Hz units only.

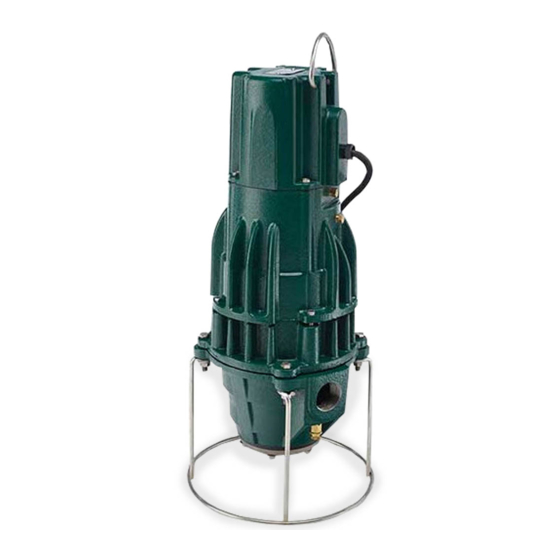

MODELS 810 & 815 SUBMERSIBLE GRINDER UNITS
Congratulations on the purchase of a Zoeller submersible
progressing cavity grinder pump. Since 1939 the name Zoeller
has represented the standard for submersible dewatering and
sewage pumps. The same high quality workmanship and easy
maintenance design has been incorporated into this line of
heavy-duty submersible progressing cavity grinder pumps. This
Zoeller pump will provide years of trouble-free service when
installed according to the manufacturer's recommendations.
This manual incorporates the installation, operation,
maintenance, and service instructions into one document to aid

Table of Contents

Safety Instructions ....................................................................... 1
Limited Warranty, Checklist and Application ..........................2-3
General Information ..................................................................... 4
Pump Wiring Instructions ............................................................ 4
Typical Outdoor Prepackaged System ....................................5-6
Installation Instructions ............................................................... 6
Operation Instructions ..............................................................6-7
Maintenance .................................................................................. 7
Service Checklist .......................................................................... 8
Owner's Information
Model Number: ______________ Date Code: _______________
 Simplex
 Packaged System
Job Name: ____________________________________________
Distributor: ____________________________________________
Date of Purchase: _________ Zoeller S/O No.: ______________
Contractor: ____________________________________________
Date of Installation: ____________________________________
System Readings During Start-up: Voltage _____ Amps ______
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347 USA
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961 USA
+1 (502) 778-2731 • 1-800-928-7867 • FAX +1 (502) 774-3624
OWNER'S MANUAL
 Duplex
 Field Assembled System
© Copyright 2017 Zoeller
50/60Hz
in the ownership of a Zoeller submersible wastewater product.
Please read and review this manual before installing the product.
Follow the steps in this manual for a proper start-up. Many items
contained within, when followed correctly, will not only ensure
a long and problem-free life for the pump, but also save time
and money during installation. Reference FM2435 and FM2436
for replacement parts on 810 and 815 Series Progressing
Cavity Grinder Pumps respectively. Should further assistance
be necessary please call our Product Support Department at
1-800-928-PUMP (7867) or +1-502-778-2731.

Safety Instructions

TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MAJOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND ON THE PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE INSTALLATION
AND OPERATION OF THIS UNIT AND MUST BE KEPT WITH
THE PUMP.
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the pump or in the
manual, look for one of the following signal words
and be alert to the potential for personal injury or
property damage.
Warns of hazards that WILL cause serious personal
injury, death or major property damage.
Warns of hazards that CAN cause serious personal
injury, death or major property damage.
Warns of hazards that CAN cause personal injury
CAUTION
or property damage.
INDICATES SPECIAL INSTRUCTIONS WHICH ARE
VERY IMPORTANT AND MUST BE FOLLOWED.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND WARNINGS
PRIOR TO PERFORMING ANY WORK ON THIS PUMP.
MAINTAIN ALL SAFETY DECALS.
REFER TO WARRANTY ON PAGE 2.
Co. All rights reserved.
®
