Zoeller 81 Series Installation Instructions

Notice to Installer: Instructions must remain with installation.
Product information presented
here reflects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
Register your
Zoeller Pump Company
Product on our website:
http://reg.zoellerpumps.com/
PREINSTALLATION CHECKLIST — ALL INSTALLATIONS
Tested to UL Standard UL778
& Certified to CSA
Standard C22.2 No. 108
1. Inspect your pump. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before using.
2. Carefully read the literature provided to familiarize yourself with specific details regarding installation and use. These materials should be retained
for future reference.
1. Make sure there is a properly grounded receptacle available. All pumps are
furnished with provisions for proper grounding to help protect you against
the possibility of electrical shock. (SEE WARNING BELOW)
2. Make certain that the receptacle is within the reach of the pump's power
supply cord. DO NOT USE AN EXTENSION CORD. Extension cords that are
too long or too light do not deliver sufficient voltage to the pump motor. But
more important, they could present a safety hazard if the insulation were
to become damaged or the connection ends were to fall into the sump.
3. Make sure the pump electrical supply circuit is equipped with fuses
or circuit breakers of proper capacity. A separate branch circuit is
recommended, sized according to the National Electrical Code for the
current shown on the pump motor identification label.
4. Installation and checking of electrical circuits and hardware should only be
performed by a qualified licensed electrician.
5. A proper cover should be placed over the pit whenever a column pump is
installed to help protect against injury and to prevent debris from falling into
the pit.
6. FOR YOUR PROTECTION ALWAYS DISCONNECT PUMP FROM ITS POWER
SOURCE BEFORE HANDLING. Single phase pumps are supplied with a
3-prong grounded plug to help protect you against the possibility of electrical
shock. DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND
PIN. The 3-prong plug must be inserted into a mating 3-prong grounded
receptacle. If the installation does not have such a receptacle, it must be
changed to the proper type, wired and grounded in accordance with the
National Electrical Code and all applicable local codes and ordinances.
7. DO NOT USE FOR PUMPING FLAMMABLE LIQUIDS.
8. Prop65 Warnings for California residents: Cancer and Reproductive Harm-
www. P65Warnings.ca.gov.

PUMP PERFORMANCE/GALLONS PER MINUTE DEWATERING AND SUMP

Vertical lift of pump
Feet
5
10
15
20
Shut-off Head
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
TEL: (502) 778-2731 • 1 (800) 928-PUMP • FAX: (502) 774-3624
INSTALLATION INSTRUCTIONS

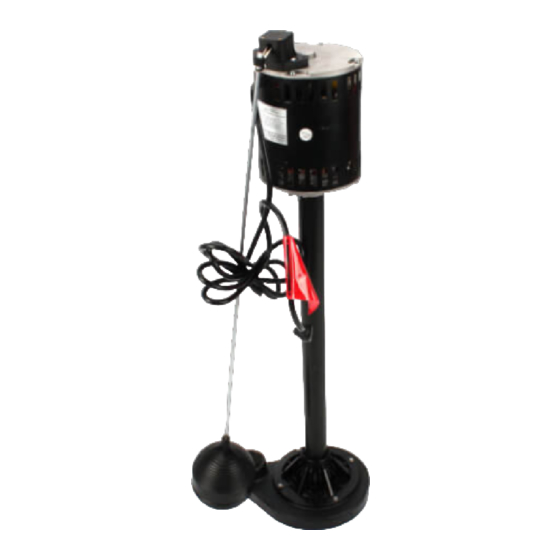

PEDESTAL PUMPS
DEWATERING AND SUMP
81, 82, 84 SERIES
SEE BELOW FOR
LIST OF WARNINGS
81 Series
Meters Gallons Liters
1.5 50 189
3.0 36 136
4.6 10 38
6.1 -- --
16 ft. (4.9 m)
© Copyright 2019 Zoeller
CAUTION
1. Check to be sure your power source is capable of handling the
voltage requirements of the motor, as indicated on the pump motor
identification label.
2. Note: This unit is designed for indoor applications where the motor
is mounted above the pit cover and protected from water, water
spray, and high humidity.
3. Maximum continuous operating temperature for standard model pumps
must not exceed 130 °F (54 °C).
REFER TO WARRANTY ON PAGE 2.
82 Series
Gallons Liters Gallons
50 189 59
41 155 51
28 106 38
4 15 17
21 ft. (6.4 m)
Co. All rights reserved.
®
Visit our website:
zoellerpumps.com
DATE INSTALLED:
MODEL NUMBER:
SEE BELOW FOR
LIST OF CAUTIONS
84 Series
Liters
223
193
144
64
24 ft. (7.3 m)
FM1935
1219
Supersedes
1014
