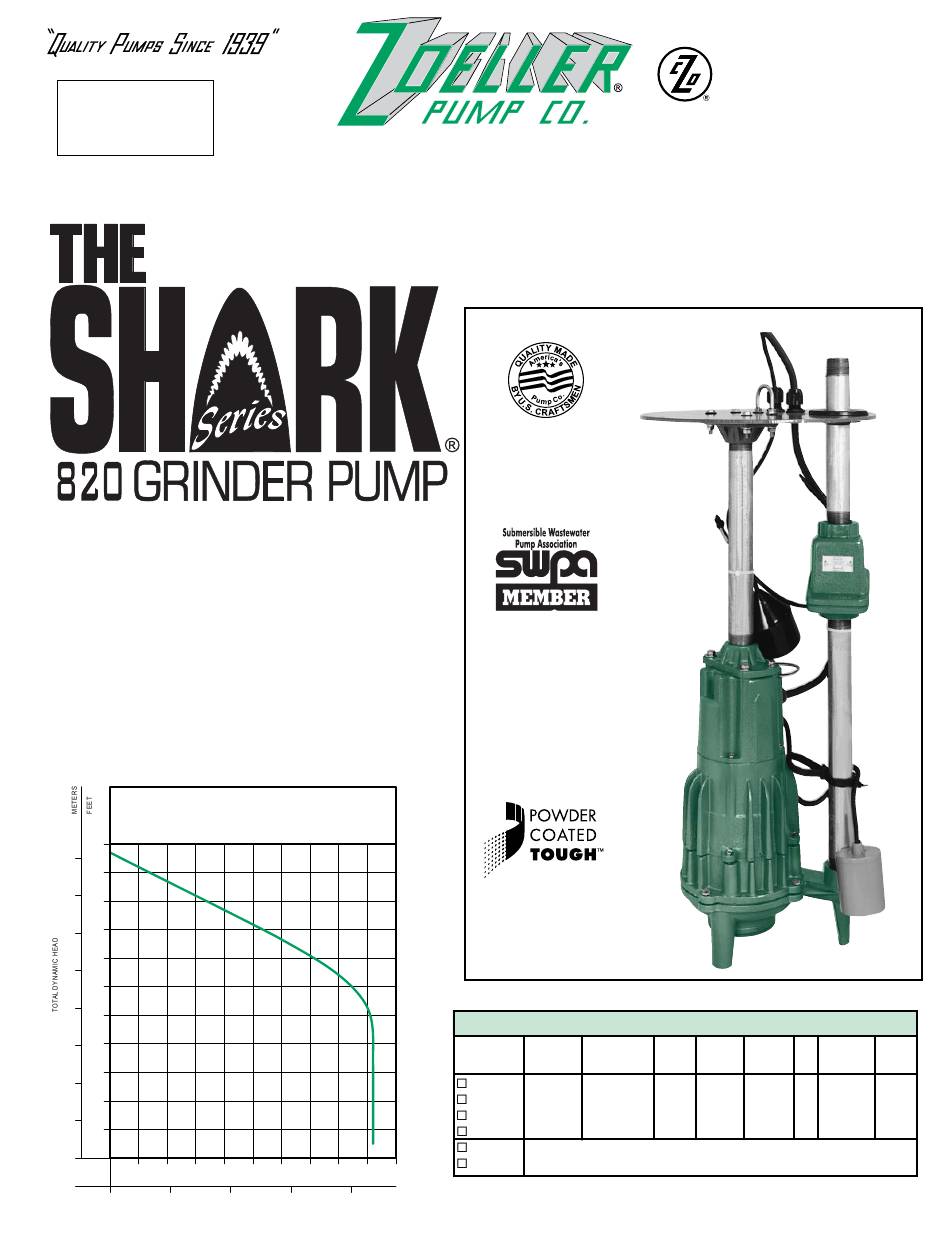

Zoeller SHARK Series Quick Start Manual

Product information presented
here refl ects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.

FEATURES:

• Rust Resistant Steel Cover (Epoxy Coated)
• 2 HP, 60 Hz, 1 Ph, 3450 RPM, Automatic Grinder Pump with
Integral Control. (See FM1478)
• Upper and Lower Ball Bearings
• Corrosion resistant powder coated epoxy fi nish
• 1¼" NPT Galvanized Piping
• 1¼" Cast Iron Check Valve
• 1¼" Rubber Discharge Pipe Seal.
• Grinder Control Float factory set to match pressure collector
system "ON" level
• Adjustable Alarm Float Switch preset at factory
• Maximum operating temperature 130°F (54°C)

PUMP PERFORMANCE CURVE

MODEL 820
110
32
100
28
90
80
24
70
20
60
16
50
40
12
30
8
20
4
10
0
5 10 15 20
GALLONS
LITERS
0 40
FLOW PER MINUTE
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
25 30 35 40 45 50
80 120 160
010440
© Copyright 2006 Zoeller Co. All rights reserved.

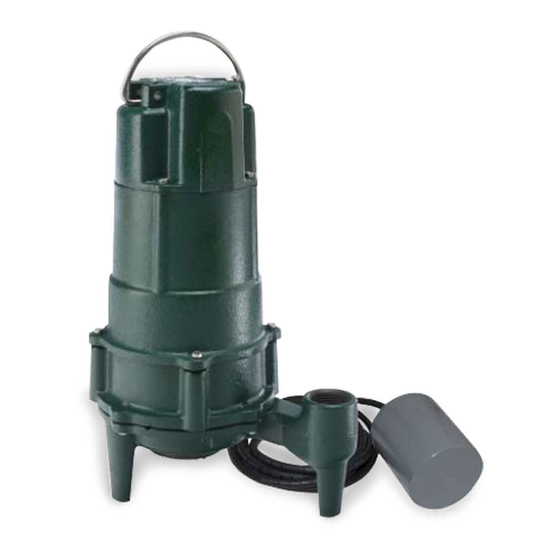

SIMPLEX REPLACEMENT GRINDER FOR
POSITIVE DISPLACEMENT GRINDERS
(For Pump Prefi x Identifi cation see News & Views 0052)
WD820/WH820
AUTOMATIC
Product may not be exactly as pictured.
SIMPLEX REPLACEMENT GRINDER
820 GRINDER • 2 HP, 1¼" N.P.T. • VERTICAL DISCHARGE
Assembly Assembly Pump
Part Number Weight Part Number Weight
932-0005 129 lbs. 820-0011
932-0006 129 lbs. 820-0005
932-0007 130 lbs. 820-0013
932-0008 130 lbs. 820-0014
10-1195 Adapter kit J-box assembly for pumps w/quick disconnect plug connection.
10-1196 Adapter kit discharge assembly for pumps w/gooseneck discharge.
* WD & WH grinder pumps are completely automatic with starting controls in pump switch case.
SECTION: 2.50.030
visit our web site:
www.zoeller.com
Pump Model Volts Ph Mode
92 lbs. WD820* 230 1 Auto
92 lbs. WH820* 200 1 Auto
93 lbs. WD820 230 1 Auto/Man. 13.7
93 lbs. WH820 200 1 Auto/Man. 15.5
FM1563
1106
Supersedes
0803
Amp
13.7
15.5
