Summary of Contents for Festo SPAE

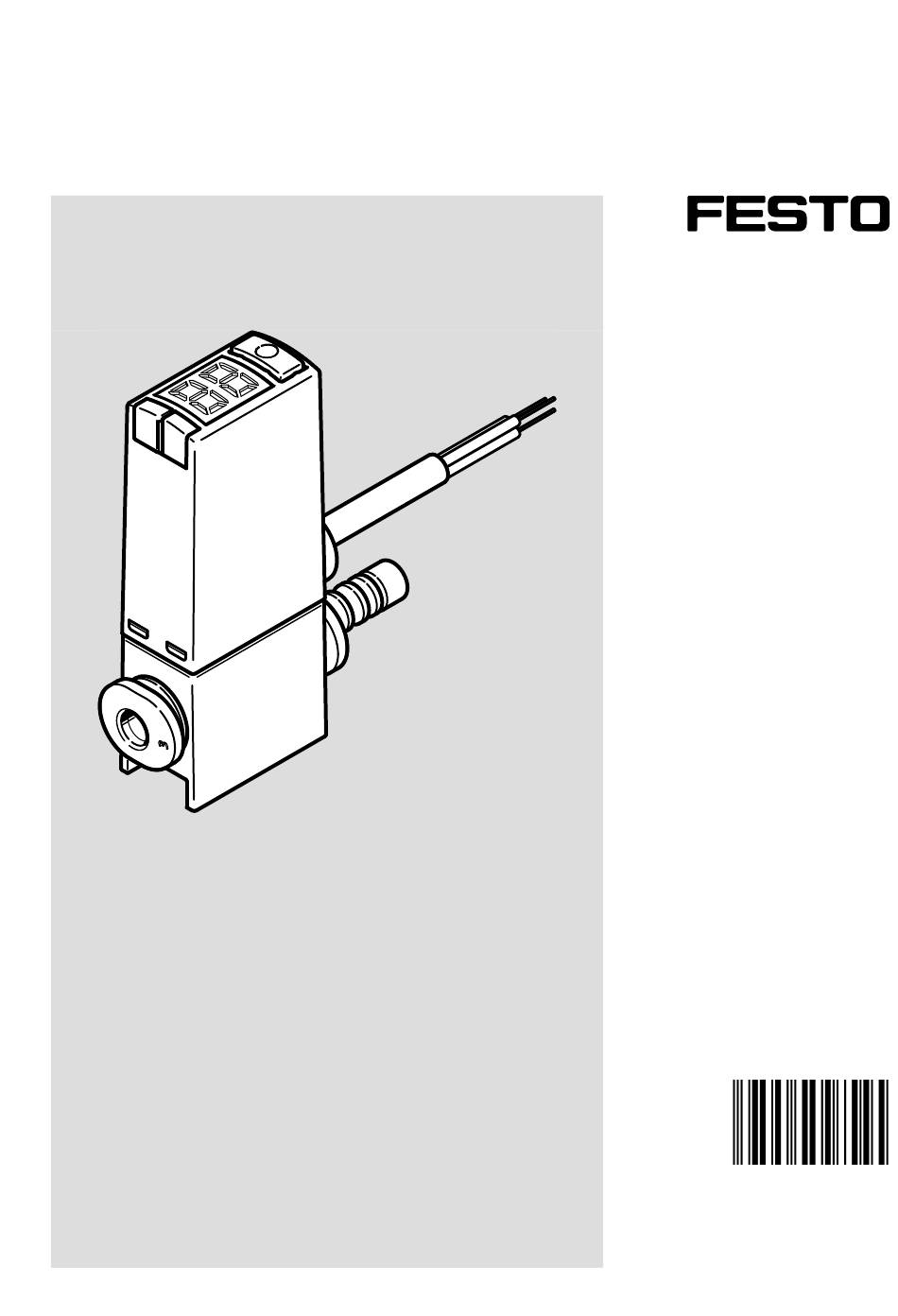

- Page 1 SPAE Pressure sensor Operating instruc- tion 8185191 8185191 2022-12c [8185193]...
- Page 2 Translation of the original instructions IO-Link is a registered trademark of its respective trademark holder in certain countries.
-
Page 3: Table Of Contents
11.1 Technical data for UL/CSA certification ........20 Festo — SPAE — 2022-12c... -
Page 4: Applicable Documents
Safety Applicable Documents All available documents for the product è www.festo.com/sp. Safety Safety instructions – Only use the product in its original condition without unauthorised modifications. – Only use the product if it is in perfect technical condition. – Observe the identifications on the product. -
Page 5: Additional Information
– The output connectors are: Not investigated for field wiring. – The unit is considered acceptable for use in a max ambient of: 50 °C. Additional information – Contact the regional Festo contact if you have technical problems è www.festo.com. – Accessories and spare parts è www.festo.com/catalogue. Product overview... - Page 6 Switching logic normally open contact ‘di’ Switch display on and off: ‘On’ = always on; ‘1’ … ‘20’ = switch off after 1 … 20 minutes ‘do’ Aligning the numeric indicator on the display: ‘do’ = default alignment; ‘op’ = rotated 180° ‘op’ Festo — SPAE — 2022-12c...
-
Page 7: Operating Key
– Display of the selected switching status. – Display of the current settings. SHOW mode – Setting or modification of parameters. EDIT mode – Acceptance of the current measured value to determine the switching TEACH mode point. Tab. 4: Operating statuses Festo — SPAE — 2022-12c... -
Page 8: Switching Functions
Normally open contact (N/O) Normally closed (N/C contact) Switching function: – Window comparator – 2 switching points (P1, P2) TEACH mode: – 2 teach-in points (TP1, TP2) – tP1 = P1, tP2 = P2 Tab. 6: Window comparator Festo — SPAE — 2022-12c... -
Page 9: Assembly
Mounting sensor on mounting clip Product variant SPAE-...-Q... and mounting clip SAMH Fig. 2: Mounting clip SAMH 1. Slide the sensor into the mounting clip with the cable outlet at the top or with the cable outlet at the bottom. -
Page 10: Mounting Sensor On Plate
Assembly Mounting sensor on plate Product variant SPAE-...-F Fig. 4: Flange hole pattern SPAE-…-F Pressure port hole: maximum Æ 2 mm – Check that the sealing ring is correctly seated. max. 0,3 Nm Fig. 5: SPAE-...-F Mounting sensor on QS plug connector Product variant SPAE-...-S... -
Page 11: Installation
If the security code is enabled, the parameter entry option is blocked: ‘LC’ flashes briefly, then the value 1 appears. 1. Press the operating key repeatedly until the security code is set. 2. Press and hold the operating key. Ä The parameter entry option is unblocked. Festo — SPAE — 2022-12c... -
Page 12: Teaching Switching Point In Teach Mode
The teach function is blocked when the security code is activated. • Enable parameter entry è Entering security code. Setting switching point with a teach pressure at F0 1. Apply the teach pressure to the sensor. Festo — SPAE — 2022-12c... -
Page 13: Replicating Parameters
– The master sensor and device sensor have the same design with reference to the parameters, i.e. they have the same device ID. – The master sensor is connected to the device sensor and the power supply è Fig. 7. – Parameterisation of the device sensor must not be blocked via IO-Link. Festo — SPAE — 2022-12c... - Page 14 è 9 Fault clearance. 3. If an additional sensor is to be parameterised, connect the additional sensor and repeat step 1 and step 2. 4. Press the operating key briefly. Ä The RUN mode is active. Festo — SPAE — 2022-12c...
-
Page 15: Menu Structure
Commissioning Menu structure Fig. 8: Menu structure If the value ‘nP’ is selected when setting the switching output, operation of the IO-Link is not possible. Festo — SPAE — 2022-12c... -
Page 16: Operation
Display ‘Er’/‘Co’ IO-Link communication error sensor (Pn) – Check line – When replicating, use sensors Display ‘Er’/‘Id’ Device ID error, devices do not have the same design with the same pressure range (same device ID) Festo — SPAE — 2022-12c... -
Page 17: Removal
Compressed air in accordance with ISO 8573-1:2010 [7:4:4], lubricated operation pos- sible Temperature of medium [°C] 0 … 50 Ambient temperature [°C] 0 … 50 Tab. 10 Output, general Accuracy at room temperature [% FS] ± 1.5 Accuracy in ambient temperature range [% FS] ± 2.5 Festo — SPAE — 2022-12c... - Page 18 < 30 Ready-state delay [ms] Reverse polarity protection All connections against one other Tab. 14 Electromechanics Electrical connection Cable 3-wire, open end Max. permissible line length 30, with IO-Link 20 Cable sheath material Tab. 15 Festo — SPAE — 2022-12c...
- Page 19 [bar] –1 … 1 –1 … 10 0 … –0.25 0 … –0.5 0 … –1 range [psi] –14.5 … 14.5 –14.5 … 145 0 … –3.625 0 … –7.25 0 … –14.5 Overload [MPa] –0.1 … 0.5 –0.1 … 1.5 –0.1 … 0.1 –0.1 … 0.2 –0.1 … 0.5 range [bar] –1 … 5 –1 … 15 –1 … 1 –1 … 2 –1 … 5 [psi] –14.5 … 72.5 –14.5 … 217.5 –14.5 … 14.5 –14.5 … 29 –14.5 … 72.5 Tab. 18 Festo — SPAE — 2022-12c...
-
Page 20: Technical Data For Ul/Csa Certification
Tab. 20: General IO-Link specification 11.1 Technical data for UL/CSA certification Ambient conditions UL/CSA Pollution degree Operating temperature 0 … 50 °C/ 32 … 122 °F Relative humidity 0 … 100% For use in wet locations Tab. 21: Ambient conditions UL/CSA Festo — SPAE — 2022-12c... - Page 22 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Internet: © 2022 all rights reserved to Festo SE & Co. KG www.festo.com...
