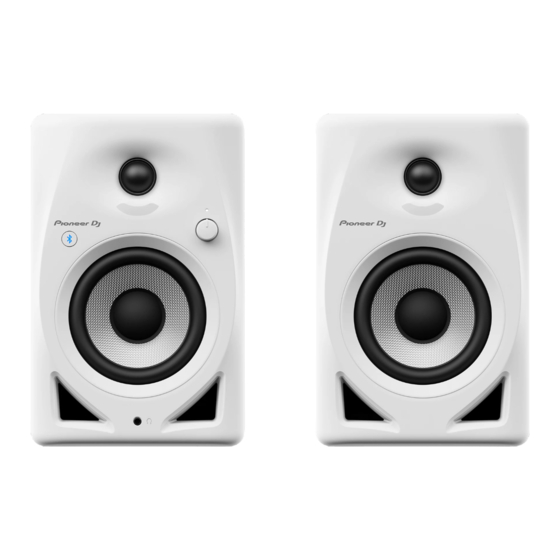

- Page 1 Instruction Manual DM-40D / DM-40D-W Active Monitor Speaker pioneerdj.com/support/ For FAQs and other support information for this product, visit the above site.
- Page 2 Before you start How to read this manual Thank you for choosing this Pioneer DJ product. Be sure to read this manual, the “Quick Start Guide” and the “Precautions for Use” which are also included with this product. These documents include important information that you should understand before using the speakers.
- Page 3 7 Grooves 8 Headphone terminal Adjust the airflow of the bass reflex ducts to radiate low This is a 3.5 mm stereo mini jack type output terminal. frequencies smoothly. Connecting headphones mutes the sound output from the speakers and outputs the sound only from the headphones. Rear panel 1 RCA INPUT terminals These are RCA pin type unbalanced input terminals.
- Page 4 Installation and connections How to install • The speakers should ideally be placed at an angle of 30° to the A speaker’s playback sound is delicately influenced by conditions in the listening room. To produce optimum listening left and right (for a total of 60°) from the listening position, and conditions, take due consideration of the conditions of your facing inward.
- Page 5 Additional information Troubleshooting If you think something is wrong with the speakers, check the information below and refer to the [FAQ] for the DM-40D at the URL below. pioneerdj.com/support/ • Inspect devices connected with the speakers.
- Page 6 Specifications Type ................................2-Way Active Speaker Amplifier Amplifier type ................................ Class D with DSP Amplifier output ..........................Lch: 19 W / 4 Ω, Rch: 19 W / 4 Ω Input terminals (unbalanced input) ................RCA pin jacks × 1, 3.5 mm stereo mini jack × 1 Input impedance ..................................10 kΩ Output terminal ............................3.5 mm stereo mini jack × 1 Speaker Enclosure ..................................Bass reflex Enclosure material ..............................
- Page 7 © 2022 AlphaTheta Corporation. All rights reserved. 6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN 〒220-0012 神奈川県横浜市西区みな とみ らい4丁目4番5号 横浜アイ マークプレイ ス6階 6F, Йокогама i-Mark Place, 4-4-5 Минатомирай, Ниси-ку, Йокогама, Канагава 220-0012 ЯПОНИЯ Artemis Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QE, U.K. TEL: +44-203-7617-220 2050 W.
