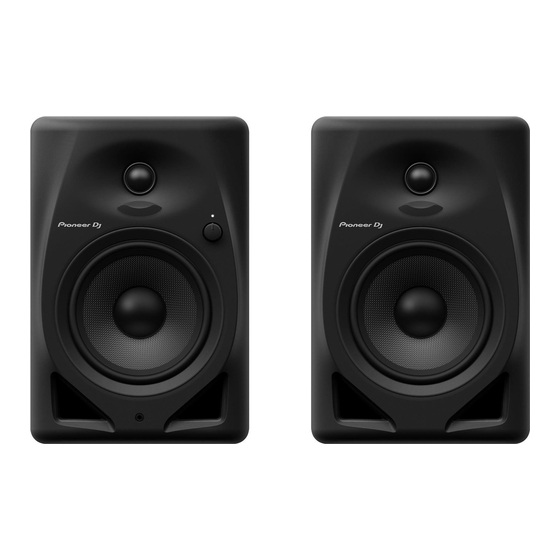

- Page 1 Instruction Manual DM-50D / DM-50D-W Active Monitor Speaker pioneerdj.com/support/ For FAQs and other support information for this product, visit the above site.
-
Page 2: Before You Start
Before you start How to read this manual Thank you for choosing this Pioneer DJ product. Be sure to read this manual, the “Quick Start Guide” and the “Precautions for Use” which are also included with this product. These documents include important information that you should understand before using the speakers. -
Page 3: Rear Panel
7 Grooves 8 Headphone terminal Adjust the airflow of the bass reflex ducts to radiate low This is a 3.5 mm stereo mini jack type output terminal. frequencies smoothly. Connecting headphones mutes the sound output from the speakers and outputs the sound only from the headphones. Rear panel 1 RCA INPUT terminals These are RCA pin type unbalanced input terminals. -
Page 4: Installation And Connections
Installation and connections How to install A speaker’s playback sound is delicately influenced by • The speakers should ideally be placed at an angle of 30° to the conditions in the listening room. To produce optimum listening left and right (for a total of 60°) from the listening position, and conditions, take due consideration of the conditions of your facing inward. -
Page 5: Additional Information
Additional information Troubleshooting If you think something is wrong with the speakers, check the information below and refer to the [FAQ] for the DM-50D at the URL below. pioneerdj.com/support/ • Inspect devices connected with the speakers. -
Page 6: Specifications
Specifications Type ................................2-Way Active Speaker Amplifier Amplifier type ................................ Class D with DSP Amplifier output ..........................Lch: 25 W / 4 Ω, Rch: 25 W / 4 Ω Input terminals (balanced input) ........................... 1/4″ TRS jacks × 1 Input terminals (unbalanced input) ................RCA pin jacks × 1, 3.5 mm stereo mini jack × 1 Input impedance ..................................10 kΩ... - Page 7 © 2021 AlphaTheta Corporation. All rights reserved. 6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN 6F, Й а а i-Mark Place, 4-4-5 М а а , Н - , Й а а, Ка а а а 220-0012 ЯПОНИЯ Artemis Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QE, U.K.
