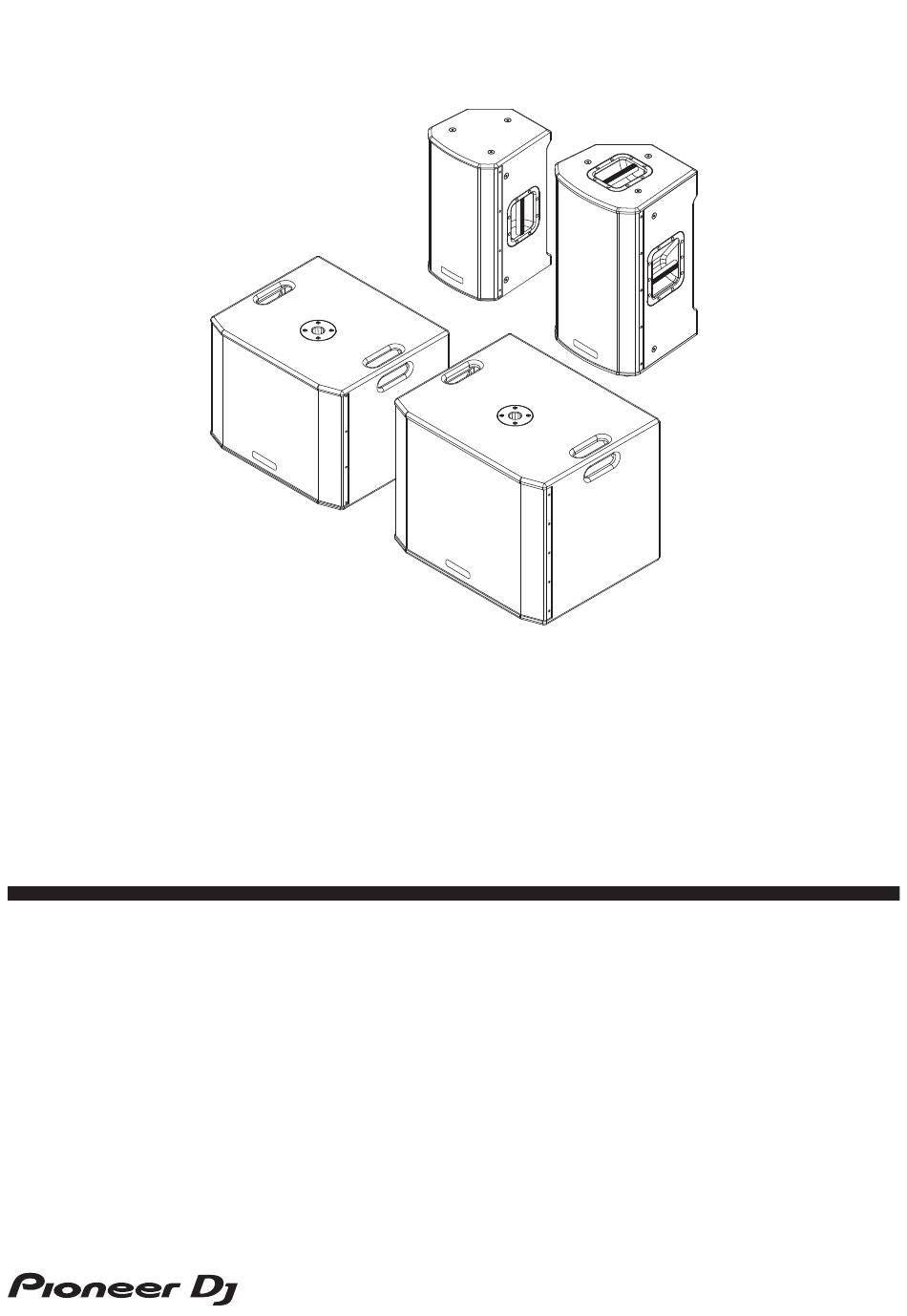

  • Page 1 Instruction Manual XPRS2 Series XPRS102 / XPRS122 / XPRS1152S / XPRS1182S Active Loudspeaker / Active Subwoofer pioneerdj.com/support/ For other support information for this product, visit the above site.

  • Page 2: How To Read This Manual

    3 INPUT1 How to read this manual Level control for the LINE/MIC INPUT 1. INPUT Balanced input for sources such as mixing consoles, instruments, or microphones. Connections can be made via a 1/4-inch TRS or XLR Thank you for choosing this speaker. To make sure you get the most from connector.

  • Page 3: Dsp Control

    Rear panel DSP control (subwoofer model) With the integrated DSP control menu, you can choose from multiple DSP and system settings on the speaker. To access the DSP control menu, follow the steps below. 1. Press the MASTER VOL knob and the DSP control menu will appear.
  • Page 4 Back MENU 12.1K Default: 0 decibels You can use the Input Settings menu to configure the speaker’s input 2.52K Range: -18 decibels – +18 decibels sensitivity control as well as the Delay and Phase control settings. 500.0 ALLBYPASS will be deleted, invalidating all set EQs. 101.5 FLAT is to restore all adjusted EQs to factory settings.

  • Page 5: Installation And Connections

    The combinations shown in the following diagrams are recommended for the XPRS2 Series. Using a different combination may result in the speakers toppling over and possibly causing damage or injury. To use a speaker pole, check the cautions below and perform the installation safely.
  • Page 6 Active subwoofer and active satellite speaker Connections CAUTION Make your initial connections with all the equipment powered For active full-range speaker system off and ensure all the main volume controls are turned down completely. 1. Connect one end of a signal cable to the Output Left/Right on your CAUTION mixer and connect the other end of the cable to the Line Input on Make your initial connections with all the equipment powered...
  • Page 7 DIGITAL SIGNAL PROCESSING MASTER DISPLAY SIG/LIMITER HI-Z POWER STEREO MIC/LINE HI-Z/LINE MIX OUT Vocal Microphone DJ Mixer, Etc. Instrument The direction of the arrow indicates the signal path. Factory presets MONITOR Subwoofer No Sub...

  • Page 8: Specifications

    Specifications Model XPRS102 Model XPRS1152S System type Multi-purpose, 2-way active loudspeaker with System type 15” active vented subwoofer DSP controls Power rating Class D 4000 W (peak) Transducer low 10” woofer, 2.5” voice coil Transducer low 15” ferrite woofer, 3” (76 mm) voice coil with Transducer driver 1”...
  • Page 9 © 2022 AlphaTheta Corporation. All rights reserved. 6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN 〒220-0012 神奈川県横浜市西区みな とみ らい4丁目4番5号 横浜アイ マークプレイ ス6階 6F, Й а а i-Mark Place, 4-4-5 М а а , Н - , Й а а, Ка а а а 220-0012 ЯПОНИЯ Artemis Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QE, U.K.
