Website:
www.huanuoav.com
Monitor Wall Mount
Instruction Manual
Model:HNWDS1
Thank you for choosing this HUANUO product! At HUANUO
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.huanuoav.com/reviews if you
are satisfied. Should you have any issues, please don't
hesitate to contact us.
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
support@huanuoav.com (US/CA)
1
Advertisement
Related Manuals for HUANUO HNWDS1
Summary of Contents for HUANUO HNWDS1
- Page 1 Monitor Wall Mount Instruction Manual Model:HNWDS1 Thank you for choosing this HUANUO product! At HUANUO we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.huanuoav.com/reviews if you are satisfied.
-
Page 2: Weight Restrictions
IMPORTANT SAFETY INFORMATION • Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our customer service at support@huanuoav.com CAUTION: Avoid potential personal injuries and property damage! •... - Page 3 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is within 4.4-17.6 Ibs (2-8 kg).
- Page 4 Tools Neede (Not Included) Phillips 5/32 in.(4mm) 3/8 in.(10mm) Wood Drill Concrete Drill Supplied Parts and Hardware for Step 1 Screw M6.3x55mm M10x45mm [01] Supplied Parts and Hardware for Step 2 15/64 in.(6mm) Large Allen Key M-F1(x1) Monitor Plate [02] Bolt Bolt M5mm...
- Page 5 1a.Wood Stud Option [01] [01] . Drill 3 pilot holes using a 5/32 in.(4mm) diameter drill bit. Make sure the depth is not less than 2 11/64 in.(55mm). [01] 2 11/64 in.(55mm) 5/32 in. (4mm) [01] screws [01]...
- Page 6 1b.Solid Concrete or Concrete Block Option [01] [01] Drill 3 pilot holes using a 3/8 in.(10mm) diameter drill bit. Make sure the depth is not less than 2 23/64in.(60mm） [01] (2 23/64in.) 3/8in.) screws [01] [01]...
- Page 7 2. Attach the Monitor Plates to the Monitors Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns. -Too short will not hold the monitor. -Too long will damage the monitor. Too Short Too Long Correct...
- Page 8 Round [02] M-F1 (Large Allen Key) 3. Secure the Monitors to Arms...
- Page 9 4. Adjust Gas Spring Tension Be sure to keep the arm in horizontal position during adjustment. Or else, it would be difficult to adjust the mount or damage the mount. 1. If the monitor can stay at the desired height by itself, no adjustment needed. 2.
- Page 10 5. Adjust the Tilt Angle 1. Slightly loosen both tilts bolts [T]. 2. Adiust monitors to your desired tilt angle. 3. Retighten both tilt bolts [T] to fix the tilt angle. 6. Route the Cables along the Arms...
- Page 12 Thank you again choosing this HUANUO product! All of us at HUANUO do appreciate your product purchase. We hope that you are as happy with your product as we designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
Need help?
Do you have a question about the HNWDS1 and is the answer not in the manual?
Questions and answers

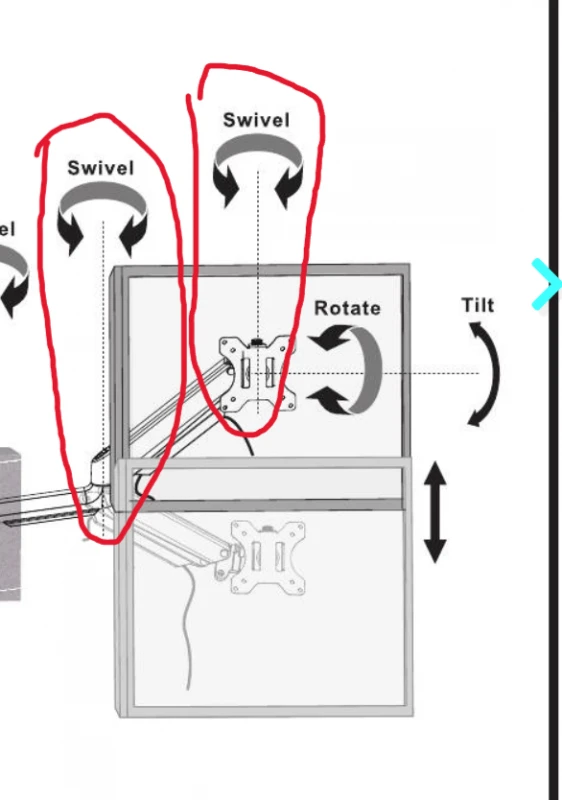

I am having a problem with the arm moving alone, I dont think is a gas problem since its moving to the sides, both where the monitor and the arm On the image I tell which parts are moving, I already tried making the screws stronger and weaker and none helped me
The HUANUO HNWDS1 arm may move on its own if the gas spring tension is not properly adjusted. If the monitor rises by itself, the arm tension is too high. If it falls, the tension is too low.
To fix this:
- If the monitor rises, press the arm to a horizontal position and use the large Allen key (M-F1) to turn the bolt clockwise (“-” direction) to reduce tension.
- If the monitor falls, lift the arm to a horizontal position and turn the bolt counter-clockwise (“+” direction) to increase tension.
Adjust only until the monitor stays at the desired height on its own.
This answer is automatically generated
