- Page 1 Modern Series 60-Watt or 120-Watt Fixed-Biased 3-Channel High-Gain Tube Amplifier Head Owner’s Manual www.sonictoneamps.com Made in the USA...
- Page 2 Table of Contents Introduction ............... Safety Instructions ............Features ................Front Panel ................. Rear Panel ................Warranty ................Specifications ..............SonicTone Amplification, LLC P.O. Box 24456 New Orleans, LA 70184 contact@sonictoneamps.com www.sonictoneamps.com Made in the USA...
- Page 3 Introduction I’d like to personally thank you for purchasing the SonicTone Patriot tube amplifier. I know how important every player’s tone is to them and that consideration goes into every amp. Part of the flagship Modern Series line up, the Patriot is an American-voiced 3-channel high gain machine.
- Page 4 Features The Patriot is a fixed-biased, high-gain 3-channel tube amplifier that uses five (5) 12AX7 preamp tubes. The 60-watt model uses two (2) 6L6 power tubes and the 120-watt model uses four (4) 6L6 power tubes. The features include: 3 channels with independent gain and volume controls 2 separate 3-band EQs (Shared EQ between channels 2 and 3) Presence and resonance controls Master volume...

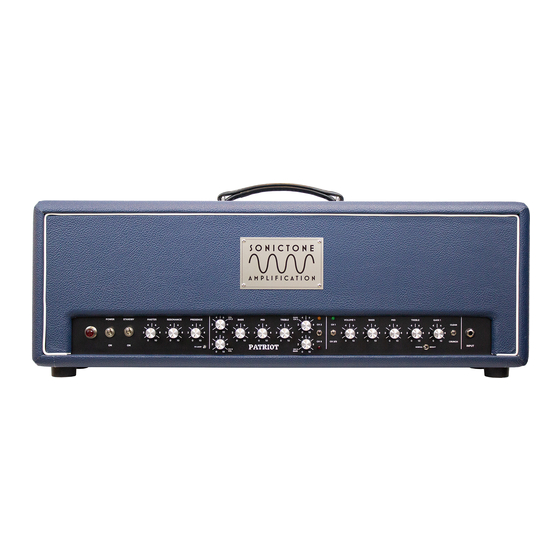

- Page 5 Front Panel POWER STANDBY MASTER RESONANCE PRESENCE BASS TREBLE VOLUME 1 CH 2 CH 1 VOLUME GAIN CH 3 CH 2/3 FX LOOP Pilot Light – illuminates when the amp is Volume 2 – control to adjust the volume on channel 2. turned on.
- Page 6 Rear Panel Footswitch Jack – 7-pin DIN jack to plug the provided footswitch cable into. FX Series/Parallel Switch – switch to operate the FX loop in either series or parallel mode. In parallel mode, the original signal is allowed to pass through unaffected and the send control acts as a “wet/dry blend” to mix the level of affected signal into the mix with the unaffected signal.
- Page 7 Rear Panel (continued) Impedance Selector Switch – switch to select the correct impedance of the speaker load hooked up to the amp. Bias Probes – test jacks to check the bias values of the power tubes.* Full/Half Power Switch – switch to change the power setting between half and full power. This feature changes the operation of the power tubes between pentode (full) and triode (half.) The amount of power reduction in wattage is approximate.** Fuse Holders –...
- Page 8 Specifications Product Series: Modern Series Product Model: Patriot Head AC Input & Fuses: U.S. Standard IEC jack rated for 120V @ 60Hz Slo-blo mains fuse: 60W - 3A; 120W - 4A Slo-blo high voltage (B+) fuse: 60W - 0.5A; 120W - 1A Tubes &...
