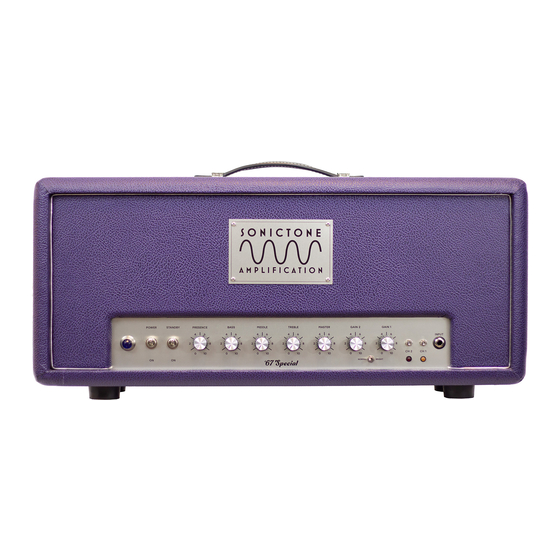

- Page 1 Vintage Series 50-Watt Fixed-Biased Tube Amplifier Head or 1x12 Combo Owner’s Manual www.sonictoneamps.com Made in the USA...
- Page 2 Table of Contents Introduction ............... Safety Instructions ............Features ................Front Panel ................. Rear Panel ................Warranty ................Specifications ..............SonicTone Amplification, LLC P.O. Box 24456 New Orleans, LA 70184 contact@sonictoneamps.com www.sonictoneamps.com Made in the USA...
- Page 3 Introduction I’d like to personally thank you for purchasing the SonicTone ‘67 Special tube amplifier. I know how important every player’s tone is to them and that consideration goes into every amp. Carefully designed and hand-built here in the U.S., the ‘67 Special is an homage to that classic British rock sound from the late 1960’s.
- Page 4 Features The ‘67 Special is a 50-watt fixed-biased tube amplifier that uses three (3) 12AX7 preamp tubes, two (2) EL34 power tubes and one (1) GZ34 rectifier tube. The features include: 2 channels with independent parallel gain control (footswitchable) Shared 3-band EQ with presence Master volume A bright switch on channel 1 Buffered FX loop, bypassable...
- Page 5 Front Panel Pilot Light – illuminates when the amp is turned on. Power Switch – turns the amp on. Standby Switch – allows the amp to be played. When the standby is off, the tubes are kept warm, but the amp will not make any sound. Presence –...
- Page 6 Rear Panel Footswitch Jack – 5-pin DIN jack to plug the provided footswitch cable into. FX Loop Return Jack – mono input jack for the FX loop return signal. FX Loop Bypass Switch – switch to fully bypass the FX loop circuit. FX Loop Send Jack –...
- Page 7 2-Year Limited Warranty This amplifier is protected with a limited, 2-year warranty for any and all defective issues with the build workmanship and parts, excluding tubes, transformers and speakers. The warranty does not cover general wear and tear, neglect, misuse or abuse, damage from liquids (water, alcohol, etc.), disasters, acts of God or unauthorized modifications.
- Page 8 Specifications Product Series: Vintage Series Product Model: ‘67 Special Head or 1x12 Combo AC Input & Fuses: U.S. Standard IEC jack rated for 120V @ 60Hz 3A slo-blo mains fuse 0.5A slo-blo high voltage (B+) fuse Tubes: Three (3) 12AX7 preamp tubes...
