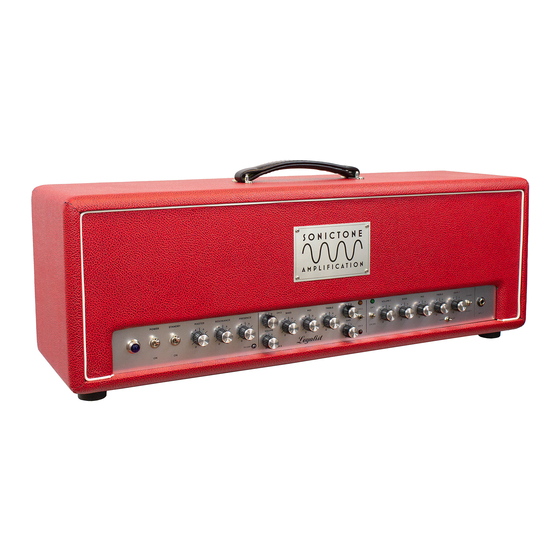

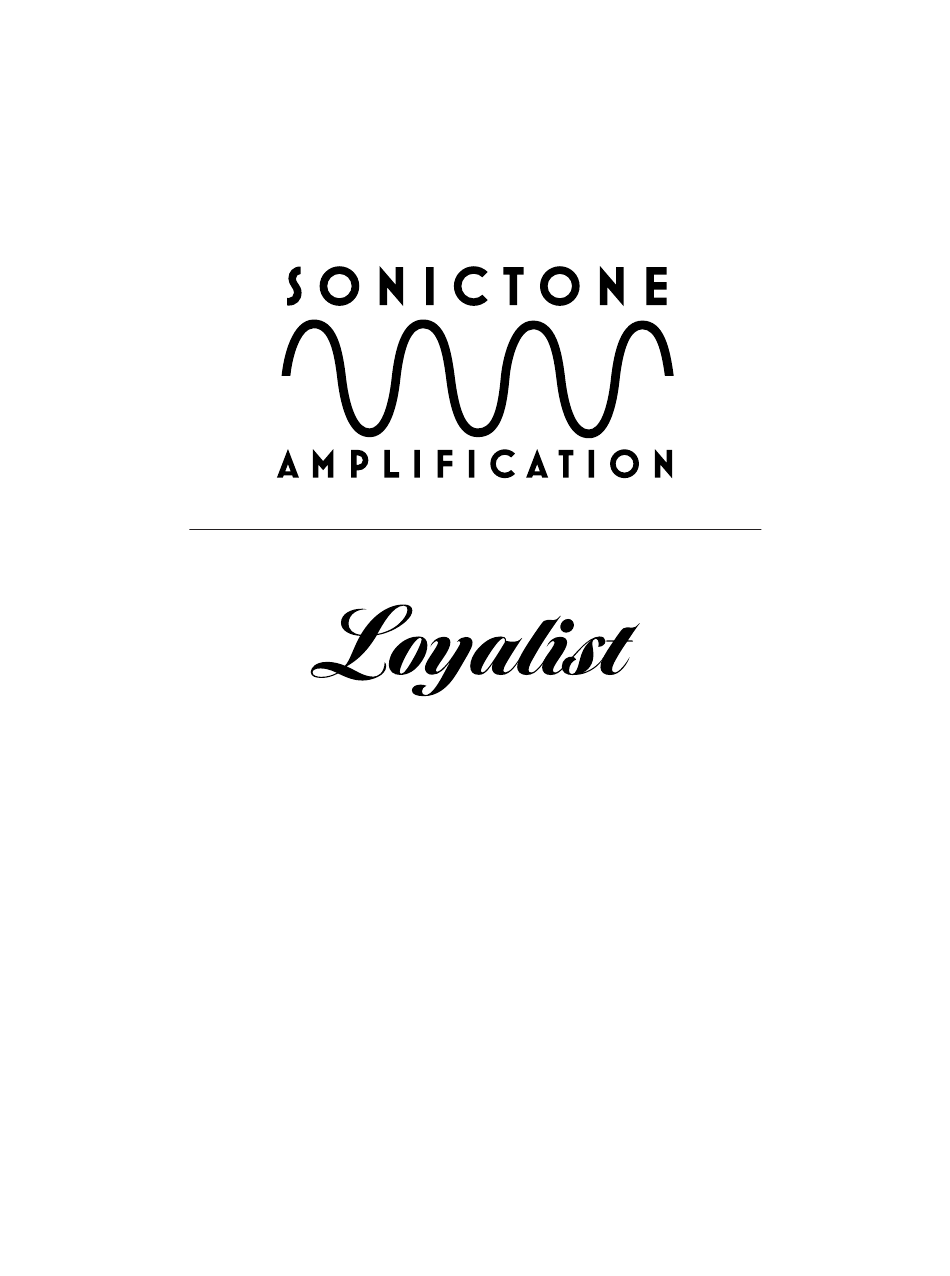

- Page 1 Modern Series 50-Watt or 100-Watt Fixed-Biased 3-Channel High-Gain Tube Amplifier Head Owner’s Manual www.sonictoneamps.com Made in the USA...
-
Page 2: Table Of Contents
Table of Contents Introduction ............... Safety Instructions ............Features ................Front Panel ................. Rear Panel ................Warranty ................Specifications ..............SonicTone Amplification, LLC P.O. Box 24456 New Orleans, LA 70184 contact@sonictoneamps.com www.sonictoneamps.com Made in the USA... -
Page 3: Introduction
Introduction I’d like to personally thank you for purchasing the SonicTone Loyalist tube amplifier. I know how important every player’s tone is to them and that consideration goes into every amp. Part of the flagship Modern Series line up, the Loyalist is a British-voiced 3-channel high gain machine. -
Page 4: Features
Features The Loyalist is a fixed-biased, high-gain 3-channel tube amplifier that uses five (5) 12AX7 preamp tubes. The 50-watt model uses two (2) EL34 power tubes and the 100-watt model users four (4) EL34 power tubes. The features include: 3 channels with independent gain and volume controls 2 separate 3-band EQs (Shared EQ between channels 2 and 3) Presence and resonance controls Master volume... -
Page 5: Front Panel
Front Panel POWER STANDBY MASTER RESONANCE PRESENCE BASS TREBLE VOLUME 1 CH 2 CH 1 VOLUME GAIN CH 3 CH 2/3 Loyalist FX LOOP Pilot Light – illuminates when the amp is Volume 2 – control to adjust the volume on channel 2. turned on. -
Page 6: Rear Panel
Rear Panel Footswitch Jack – 7-pin DIN jack to plug the provided footswitch cable into. FX Series/Parallel Switch – switch to operate the FX loop in either series or parallel mode. In parallel mode, the original signal is allowed to pass through unaffected and the send control acts as a “wet/dry blend” to mix the level of affected signal into the mix with the unaffected signal. -
Page 7: Warranty
Rear Panel (continued) Impedance Selector Switch – switch to select the correct impedance of the speaker load hooked up to the amp. Bias Probes – test jacks to check the bias values of the power tubes.* Full/Half Power Switch – switch to change the power setting between half and full power. This feature changes the operation of the power tubes between pentode (full) and triode (half.) The amount of power reduction in wattage is approximate.** Fuse Holders –... -
Page 8: Specifications
Specifications Product Series: Modern Series Product Model: Loyalist Head AC Input & Fuses: U.S. Standard IEC jack rated for 120V @ 60Hz Slo-blo mains fuse: 50W - 3A; 100W - 4A Slo-blo high voltage (B+) fuse: 50W - 0.5A; 100W - 1A Tubes &...
