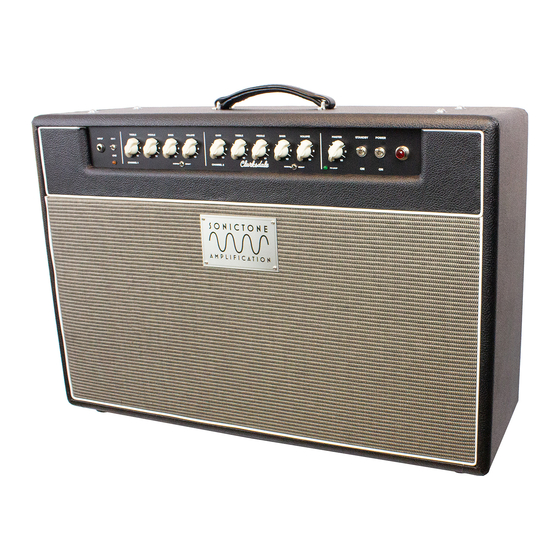

- Page 1 Vintage Series Fixed-Biased Tube Amplifier 60-Watt Head or 2x12 Combo - or - 120-Watt Head Owner’s Manual www.sonictoneamps.com Made in the USA...
- Page 2 Table of Contents Introduction ............... Safety Instructions ............Features ................Front Panel ................. Rear Panel ................Warranty ................Specifications ..............SonicTone Amplification, LLC P.O. Box 24456 New Orleans, LA 70184 contact@sonictoneamps.com www.sonictoneamps.com Made in the USA...
- Page 3 Introduction I’d like to personally thank you for purchasing the SonicTone Clarksdale tube amplifier. I know how important every player’s tone is to them and that consideration goes into every amp. Carefully designed and hand-built here in the U.S., the Clarksdale represents a timeless and classic era of rock n roll that has endured through the decades.
- Page 4 Features The Clarksdale is a fixed-biased tube amplifier that uses four (4) 12AX7 preamp tubes. The 60-watt model uses two (2) 6L6 power tubes and one (1) GZ34 rectifier tube. The 120-watt model uses (4) 6L6 power tubes. The features include: 2 independent channels with separate EQs Bright switch on each channel Master volume...
- Page 5 Front Panel TREBLE MIDDLE BASS VOLUME GAIN TREBLE MIDDLE BASS VOLUME INPUT CH 1 CH 2 Clarksdale CHANNEL 1 CHANNEL 2 FX LOO BRIGHT NORMAL BRIGHT NORMAL Input Jack – mono input jack to plug your guitar into. CH 1 / CH 2 Switch & LED – switch to change between channels 1 and 2 when not using the footswitch. The LED illuminates when channel 2 is engaged.
- Page 6 Rear Panel AC Jack – jack to plug the provided AC cord into. Fuse Holder – receptacle for the amp’s main fuse. (There is an additional high voltage fuse inside the amp.) Solid State/Tube Rectifier Switch – switch to change between using the tube rectifier or the solid state rectifier.
- Page 7 Rear Panel (continued) FX Loop Send Level – control to adjust the level of the send signal to the outboard FX chain. FX Loop Return Level – control to adjust the level of the return signal to the amp. FX Loop Send Jack – mono input jack for the send FX loop signal.
- Page 8 Specifications Product Series: Vintage Series Product Model: Clarksdale Head or 2x12 Combo AC Input & Fuses: U.S. Standard IEC jack rated for 120V @ 60Hz Slo-blo mains fuse: 60W - 3A; 120W - 4A Slo-blo high voltage (B+) fuse: 60W - 0.5A; 120W - 1A Tubes &...
