Crane DN5800 Service Information

SERVICE INFORMATION

MODELS AFFECTED: All BevMax 4/3/2 Classic Model Venders.

MODEL NUMBERS: DN5800/3800 – BevMax 4/3/2 Venders

Revised: 6/25/19

RE: Crane Merchandising Systems DN5800/3800-4/3/2 Validator Guard Assembly.

Reason: To provide installation instructions when installing the Validator Guard Assembly. If you have

any issues please contact your Crane Merchandising Systems Representative or the Technical Service

Department at 803-266-5001.

Order: 1 – 111250 (previous # 65701440)

1 – 104705 (previous # CR0013381)

5 – 100267 (previous # 80030423)

1 – 104883

M132.4

104883 (M132.4)

BevMax 4/3/2 Validator Guard Kit

Assembly, Validator Guard BevMax 4/3/2

Screws, Phil Pan Sems #8-18X1/2"

M132.x Installation Instructions

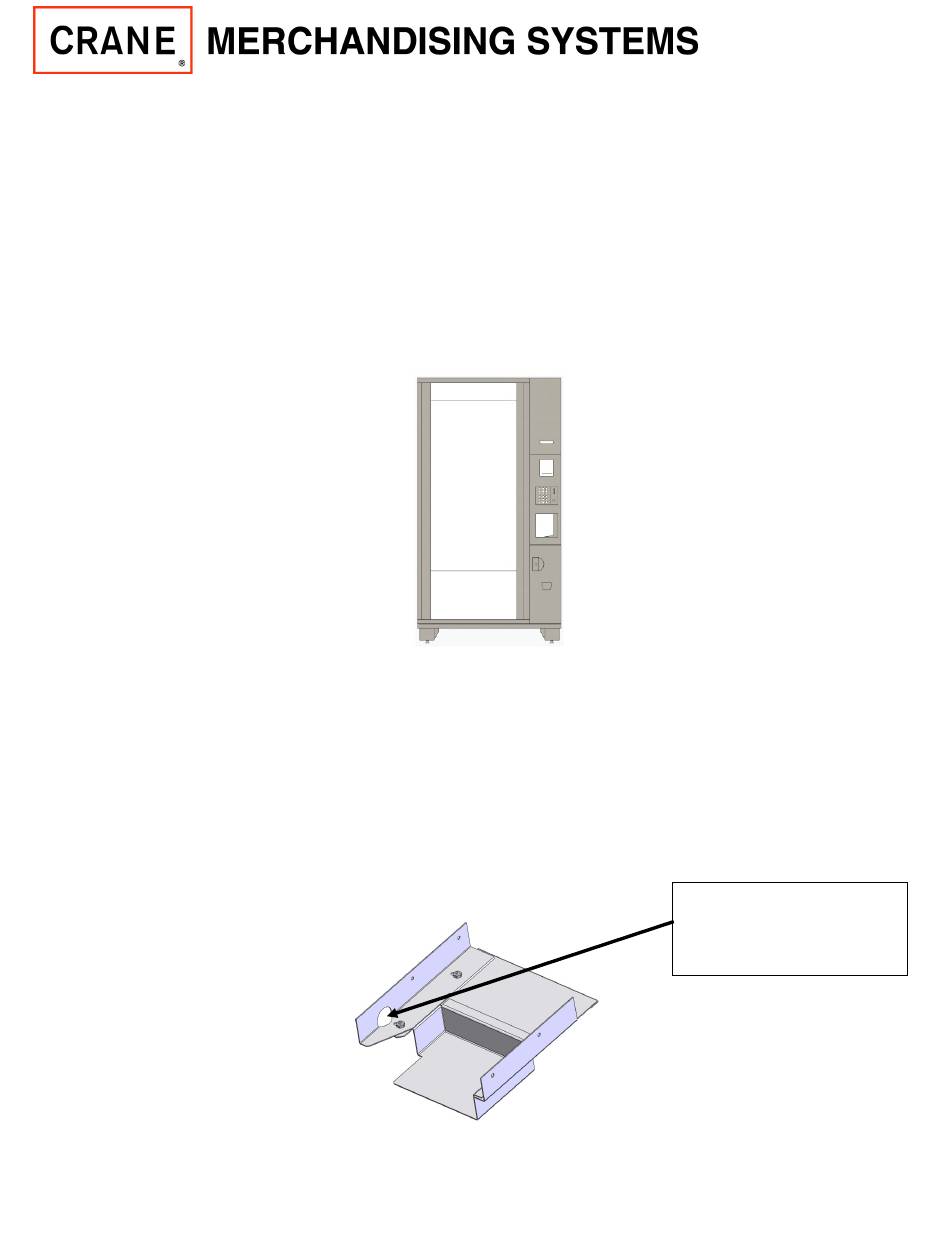

Figure 1

Page

Note access hole for the

screw to the vertical

lamp assy.

June 25, 2019

Table of Contents

Need help?

Do you have a question about the DN5800 and is the answer not in the manual?

Page 1 RE: Crane Merchandising Systems DN5800/3800-4/3/2 Validator Guard Assembly. Reason: To provide installation instructions when installing the Validator Guard Assembly. If you have any issues please contact your Crane Merchandising Systems Representative or the Technical Service Department at 803-266-5001. Order: 1 – 111250 (previous # 65701440)
Page 2 SERVICE INFORMATION Installation: 1. Unplug the vender. 2. A. If the Validator Guard 104705 (previous # CR0013381) Assembly did not arrive assembled, assemble the parts as shown in Figure1. Do not tighten the Hex Nuts at this time. B. If the Validator Guard Assembly arrived assembled, be sure the two Hex Nuts are not tight at this time.
Page 3 SERVICE INFORMATION 6. Ensure the left & right front edges of the Validator Guard Assembly are even with the front edges of the cabinet. See Figures 2 & 3. 7. Secure the Validator Guard Assembly in position with 5 Phil Pan Sems self-drilling Screws 100267 (previous # 80030423).
