SERVICE INFORMATION
MODELS AFFECTED: All BevMax 3 and 2 Model Venders.
MODEL NUMBERS: DN5800-3, DN3800-3, DN5800-2.
Revised: 10/28/15
BevMax 3/2 Port (Vend) Sensor Changes & Installation
RE:
Reason: To our valued customers. This service bulletin provides instructions for replacing the port
assembly and the port sensor on Bev Max 2 and 3 machines. Due to the unique nature of the vend
sensor both the port and sensor must be replaced when either one has been damage. The sensor is
tuned to the metal ring that rests at the bottom of the port assembly. Older port rings will not work with
the latest port sensor. If you have any issues please contact your Crane Merchandising Systems
Representative or the Technical Service Department at 803-266-5001.
Order: 1 – 64706610
Kit Contents
1 – CR0015405 Port Assembly BVG, see figure 1.
2 – CR0003022 Port Sensor Assembly with Mounting Bracket, see figure 2.
1 – M140.x
M140.x
M140.0

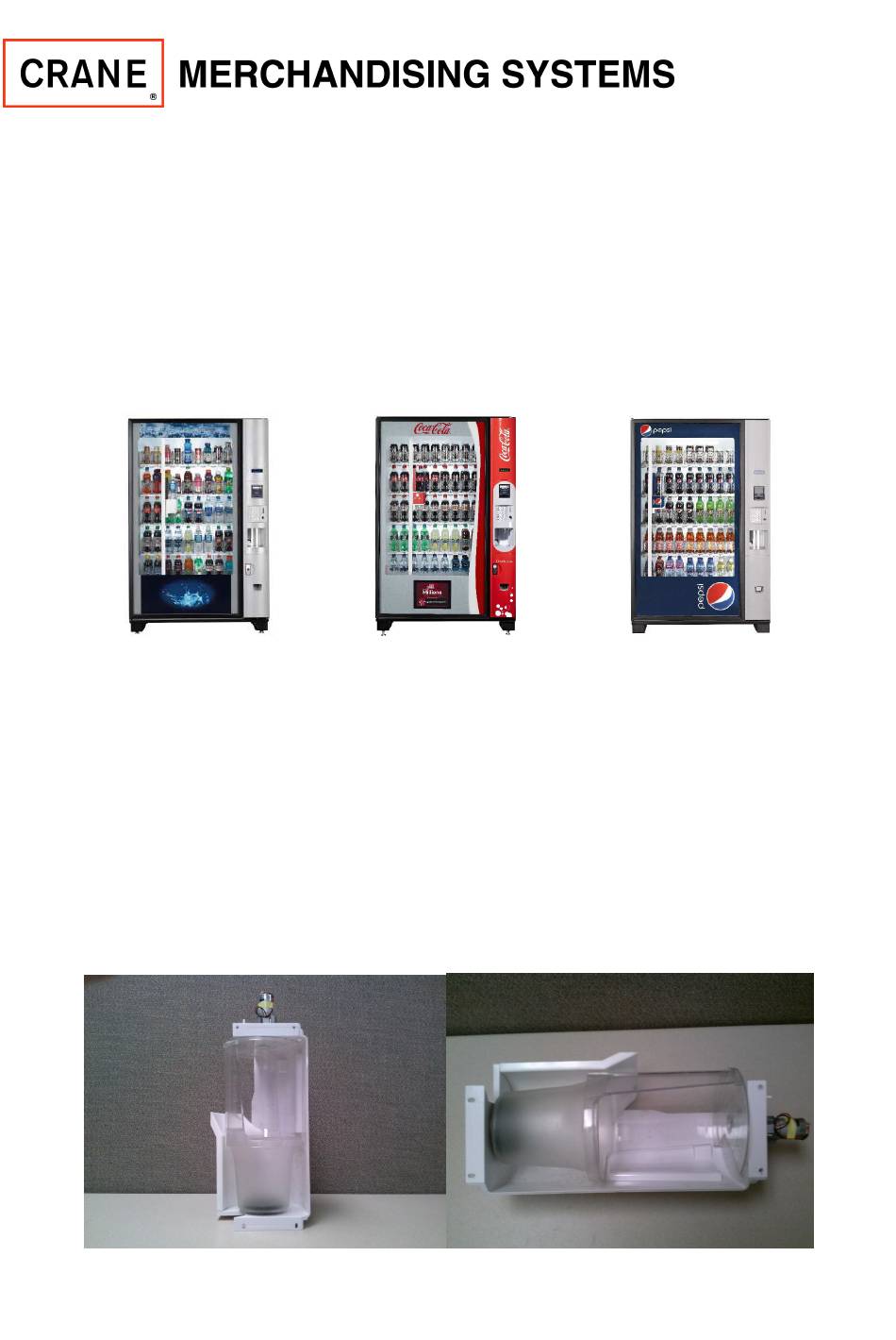

BevMax 3/2 Port (Vend) Sensor Changes & Installation Instructions
Figure 1
CR0015405
Page
1
3
of
October 28, 2015
