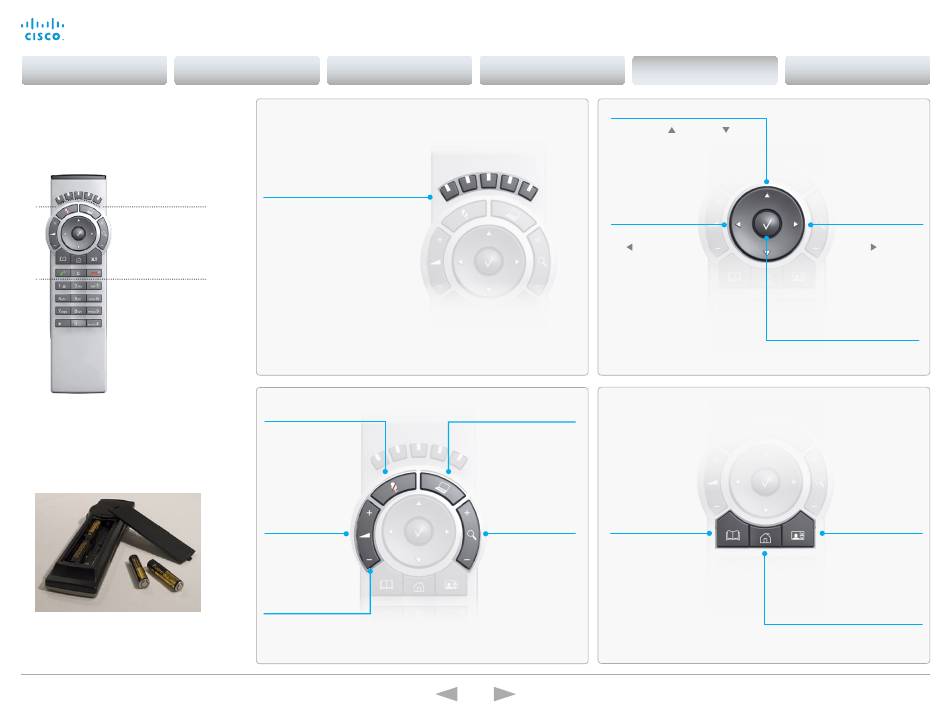

Remote control details

the functions keys in the
upper part of the remote
control correspond with
the softkeys on screen.
the middle part of the
remote control is used to
handle the video, sound,
phone book, menus and
navigation.
the lower part of the
remote control is similar
to the key pad on a
mobile phone.
Make sure the remote control has working
batteries (4 x AAA batteries).
D14639.09 Video Systems Getting Started Guide TC6.1, April 2013.
Introduction User interfaces
Function keys
each function key corresponds
to a softkey on the screen and
represents shortcuts and advanced
functions.
Microphone
Press the Microphone
key to switch between
setting the micro-
phone to on and to off.
Volume
Press + or – on
the Volume key to
adjust the codec
volume.
Mute
Press and hold the
– to mute an incom-
ing call.
Configuration
Arrow up/down
Press the up
keys to navigate in the menu and
to move the camera (pan, tilt)
when the menu on screen is not
displayed.
Arrow left
P r e s s
left arrow key to
go one step back
in the menu or to
move to the left
in a text field.
Presentation
Press the
Presentation key
to show or hide a
presentation.
Zoom Phone book
Press the Phone
Press + or – on
the Zoom key to Book key to display
zoom the camera the phone book.
in and out.
34
Getting Started Guide
Appendicies Appendices Contacts
and down arrow
t h e
Press the ok/Select key to
confirm your choice or selection.
Press the Home key to go
back to the Home menu.
Copyright © 2010–2013 Cisco Systems, Inc. All rights reserved.
Arrow right
Press the
right arrow key
to expand the
selected menu
item or to move
to the right in a
text field.
oK/Select
Layout
Press the layout
key to display the
layout menu, then
select a view in
the menu.
Home
