  • Page 1 M Series with C-Flex™...
  • Page 2 5,794,615; 6,105,575; 6,609,517; 6,629,527; 6,622,724; 6,564,797; 6,427,689; 5,645,035; 6,286,508; 6,550,478; 6,752,150, and 6,932,084. Other patents pending. REMstar, Whisper Swivel, Encore Pro, and Encore Pro SmartCard are trademarks of Respironics, Inc. NOTE: The C-Flex trademark is used under license. © 2008 Respironics, Inc. and its affiliates. All rights reserved.

  • Page 3: Table Of Contents

    1.4 System Overview .......................1-5 1.4.1 Breathing Circuit Overview ................1-6 1.5 Glossary .........................1-7 1.6 Symbol Key ........................1-8 1.7 How to Contact Respironics ..................1-8 Chapter 2: Device Controls and Displays .................2-1 2.1 Controls and Displays ....................2-1 2.1.1 Control Panel Inactivity ................2-2 2.2 Rear Panel ........................2-2 Chapter 3: Setup ..........................3-1...
  • Page 4 4.3 Using the Ramp and C-Flex Features..............4-3 4.3.1 Ramp Feature ....................4-3 4.3.2 C-Flex Comfort Feature ................4-3 4.3.2.1 C-Flex Enabled ..................4-3 4.3.2.2 C-Flex Locked ..................4-4 4.3.2.3 C-Flex Disabled .................. 4-4 4.4 Changing the Device Settings ................4-4 4.4.1 Navigating the Display Screens..............

  • Page 5: System Contents

    1: I HAPTER NTRODUCTION This chapter provides information on: YSTEM ONTENTS Your REMstar Auto M Series system includes the following items: Carrying Case User Manual Flexible Tubing Power Supply Reusable Gray Foam Filter Disposable Ultra-fine Filter AC Power Cord Device 1–1 S IGURE YSTEM...

  • Page 6: Intended Use

    NTENDED The Respironics REMstar Auto M Series system is a CPAP (Continuous Positive Airway Pressure) device designed for the treatment of Obstructive Sleep Apnea only in spontaneously breathing patients weighing >30 kg. The device is to be used only on the instruction of a licensed physician. The system can deliver CPAP therapy or Auto-CPAP therapy, both with and without C-Flex.
  • Page 7 in use. Explanation of the Warning: When the device is not in operation and the oxygen flow is left on, oxygen delivered into the tubing may accumulate within the device’s enclosure. Oxygen accumulated in the device enclosure will create a risk of fire. of an open flame.
  • Page 8 1.3.2 C AUTIONS A Caution indicates the possibility of damage to the device. to room temperature before starting therapy. Condensation may damage the device. malfunctioning. Note: Additional warnings, cautions, and notes are located throughout this manual. 1.3.3 C ONTRAINDICATIONS When assessing the relative risks and benefits of using this equipment, the clinician should understand that this device can deliver pressures up to 20 cm H O.

  • Page 9: System Overview

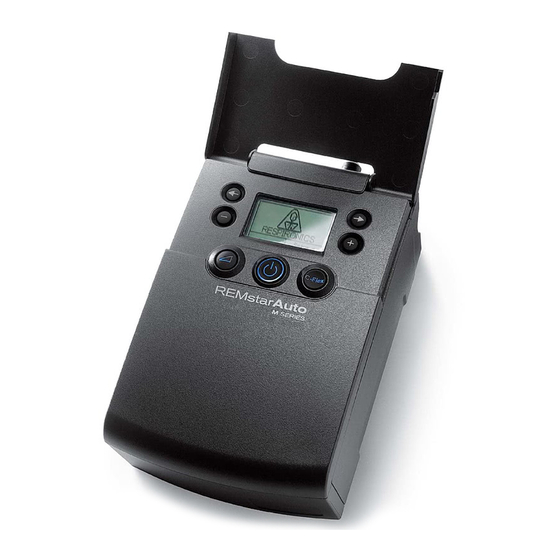

    YSTEM VERVIEW The REMstar Auto M Series device, shown in Figure 1–2, is a CPAP (Continuous Positive Air- way Pressure) device designed for the treatment of Obstructive Sleep Apnea (OSA). It can deliver CPAP therapy or Auto-CPAP therapy. When prescribed for you, the device provides several special features to help make your therapy more comfortable.
  • Page 10 EVICE EATURE ESCRIPTION Accessory Module If applicable, insert the optional accessory card here. Air Outlet Connect the flexible tubing here. C-Flex Button This button allows you to change the C-Flex comfort set- ting, if C-Flex is prescribed for you. See Chapter 4 for more information about C-Flex.

  • Page 11: Glossary

    Note: The exhalation port may be part of the interface or may be part of a separate exhalation device, but is required to minimize the potential for CO rebreathing. LOSSARY The following terms and acronyms appear throughout this manual: CRONYM EFINITION Active State The state of the device when power is applied, the airflow is on, and...

  • Page 12: Symbol Key

    ESPIRONICS To have your device serviced, contact your home care provider. If you need to contact Respiron- ics directly, call the Respironics Customer Service department at 1-724-387-4000 or +49 8152 93060. You can also use one of the following addresses:...

  • Page 13: Controls And Displays

    2: D HAPTER EVICE ONTROLS AND ISPLAYS This chapter describes the device’s control buttons and displays, patient circuit connections, and rear panel connections. ONTROLS AND ISPLAYS Figure 2–1 shows the three primary control buttons on the REMstar Auto M Series device. C-Flex 2–1 P IGURE...

  • Page 14: Control Panel Inactivity

    The device’s display screen shows the set pressure, patient data, instructions, and error messages. See Chapter 4 for instructions on navigating the display screens. Figure 2–3 provides a view of the entire device control panel, with the cover door open. Placement Area for Optional Quick Reference Label...

  • Page 15: Chapter 3: Setup

    3: S HAPTER ETUP This chapter provides instructions on how to: NSTALLING THE ILTERS Caution: A properly installed, undamaged foam filter is required for proper operation. The device uses a gray foam filter that is washable and reusable, and an optional white ultra-fine filter that is disposable.

  • Page 16: Where To Place The Device

    Note: See Chapter 7, Cleaning and Maintenance, for information on how to clean or replace the air filters. HERE TO LACE THE EVICE Place the device on a firm, flat surface somewhere within easy reach of where you will use it. Make sure the filter area on the back of the device is not blocked by bedding, curtains, or other items.
  • Page 17 2. Connect the tubing to the mask: If you are using a mask with a built-in exhalation port, connect the mask’s connector to the flexible tubing, as shown in Figure 3–3. Exhalation Port Mask's Connector Flexible Tubing Connector 3–3 C IGURE ONNECTING A ASK WITH...

  • Page 18: Using Ac Power

    UPPLYING OWER TO THE EVICE You can power the device using AC or DC power. Caution: If this device has been exposed to either very hot or very cold tempera- tures, allow it to adjust to room temperature before beginning the following setup procedures.

  • Page 19: Using Dc Power

    Damage to the vehicle or the device may occur. Caution: Only use a Respironics DC Power Cord, Portable Battery Pack, and Battery Adapter Cable. Use of any other system may cause damage to the device or vehicle.

  • Page 20: Complete Assembly Example

    OMPLETE SSEMBLY XAMPLE Figure 3–7 shows an example of how a complete assembly will look, with breathing circuit con- nected and power applied to the device. 3–7 F IGURE INAL SSEMBLY XAMPLE HOWN WITH PTIONAL CCESSORY ODULE Figure 3–8 shows an example of how you should route your tubing and situate your device on your nightstand for the best setup possible.
