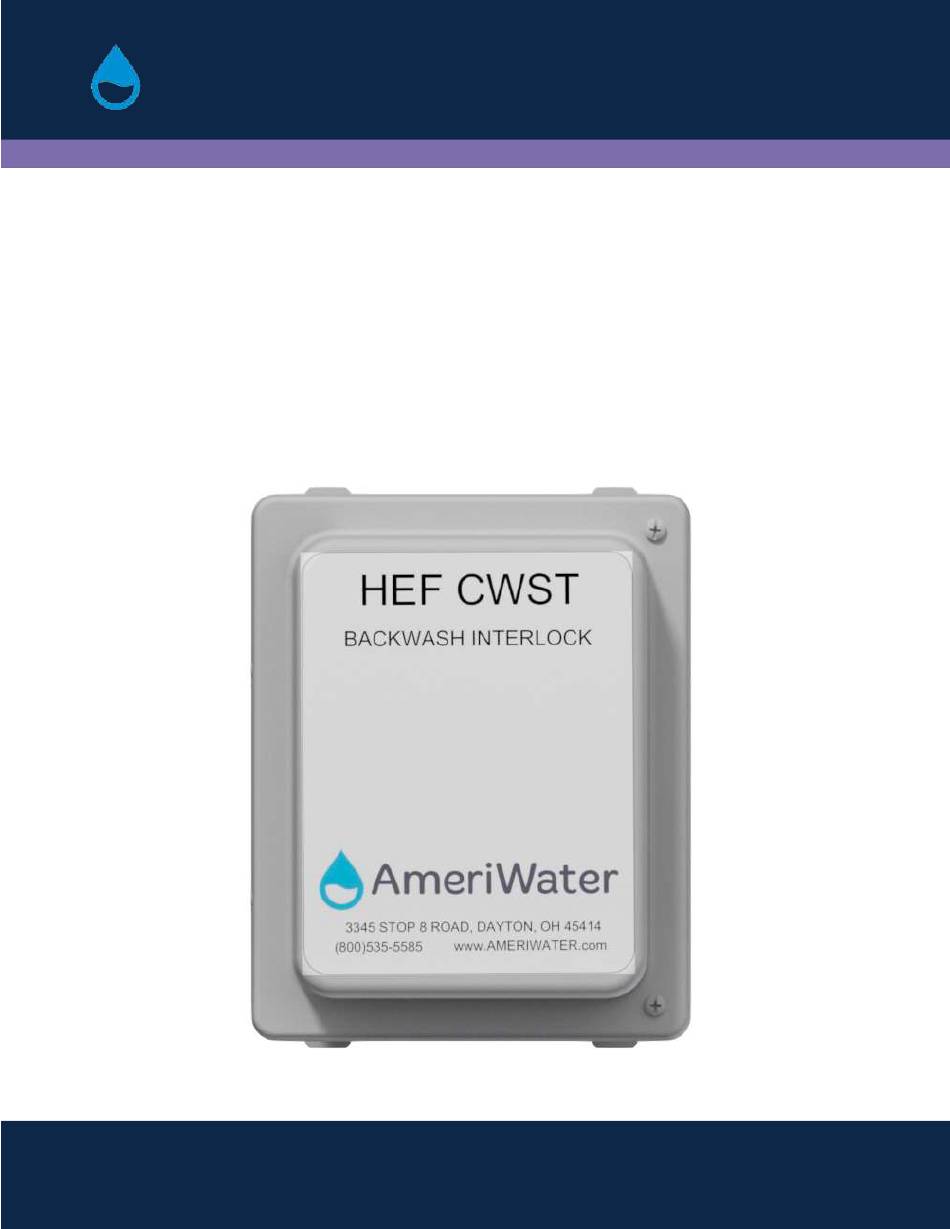

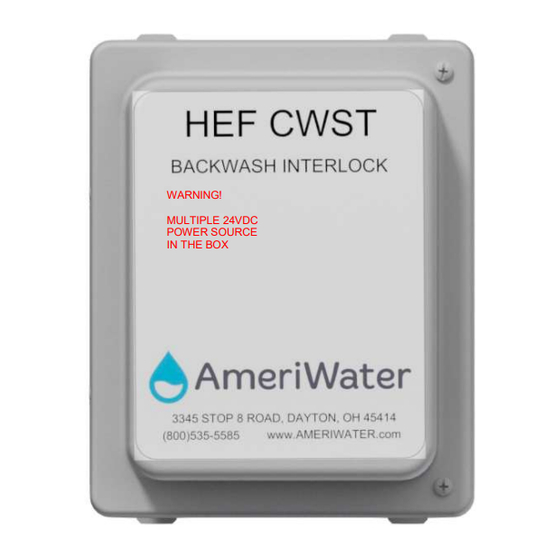

- Page 1 HEF CWST Backwash Interlock Panel Kit for Standard HEF CWST Product WARNING! MULTIPLE 24VDC POWER SOURCE IN THE BOX 3345 Stop 8 Rd, Dayton, OH 45414 | 800 535 5585 | www.ameriwater.com 98-2034 Rev A Manufactured With Pride in The USA...
-
Page 3: Table Of Contents
DRAWINGS ..........................4 CONTACT DETAILS For all service enquiries contact: AmeriWater 3345 Stop 8 Rd Dayton, Ohio 45414 Tel No. 800-535-5585 (Or your local authorized AmeriWater dealer) Useful Telephone Nos. Tel No……………………………… Contact Name:………………………………. Tel No……………………………… Contact Name:………………………………. 98-2034 Rev A... -
Page 4: Theory Of Operation
The panel should be located in a central location to all the HEF CWST systems for ease of wiring all the interlock signals to their respective control panels. The individual HEF CWST control panels provide the power required to activate the relays inside the interlock panel. -
Page 5: Start-Up
The physical connection between Tank 4 and the Backwash Interlock Panel is made thru hard wiring. Wire runs need to be completed after the Backwash Interlock Panel has been centrally located to all HEF units and the HEF main control panels have been set. Follow the HEF CWST 4 Wiring Layout for proper connections. -
Page 6: Drawings
T1-1D (INTERLOCK) CR2, CR3, and CR4 N.O. Output to 24VDC 1L (HEF CWST) T1-1L (INTERLOCK) CR2, CR3, and CR4 N.O. Output to PLC * Inputs are 24VDC / Outputs are Relay type HEF CWST 1 Wiring Layout 98-2034 Rev A... - Page 7 T2-1D (INTERLOCK) CR1, CR3, and CR4 N.O. Output to 24VDC 1L (HEF CWST) T2-1L (INTERLOCK) CR1, CR3, and CR4 N.O. Output to PLC * Inputs are 24VDC / Outputs are Relay type HEF CWST 2 Wiring Layout 98-2034 Rev A...
- Page 8 T3-1D (INTERLOCK) CR1, CR2, and CR4 N.O. Output to 24VDC 1L (HEF CWST) T3-1L (INTERLOCK) CR1, CR2, and CR4 N.O. Output to PLC * Inputs are 24VDC / Outputs are Relay type HEF CWST 3 Wiring Layout 98-2034 Rev A...
- Page 9 T4-1D (INTERLOCK) CR1, CR2, and CR3 N.O. Output to 24VDC 1L (HEF CWST) T4-1L (INTERLOCK) CR1, CR2, and CR3 N.O. Output to PLC * Inputs are 24VDC / Outputs are Relay type HEF CWST 4 Wiring Layout 98-2034 Rev A...
- Page 10 HEF CWST Overall Wiring Layout 98-2034 Rev A...
- Page 11 Interlock Panel Layout 98-2034 Rev A...
- Page 12 HEF CWST Single Tank Terminal Layout HEF CWST Multi Tank Terminal Layout 98-2034 Rev A...
- Page 13 Polyvinyl Chloride (PVC). The AmeriWater system you have purchased may contain PVC or stainless steel parts. While warnings are only required in the State of California, AmeriWater has initiated the use of Prop 65 labeling for all products to ensure compliance with California regulations. Please note that the above warning does not necessarily mean that the product that you have purchased is unsafe.
