MVI56-PDPMV1 ♦ ControlLogix Platform
PROFIBUS DPV1 Master
To Export the Processor Files from PCB (versions prior to v2.2.0 only)

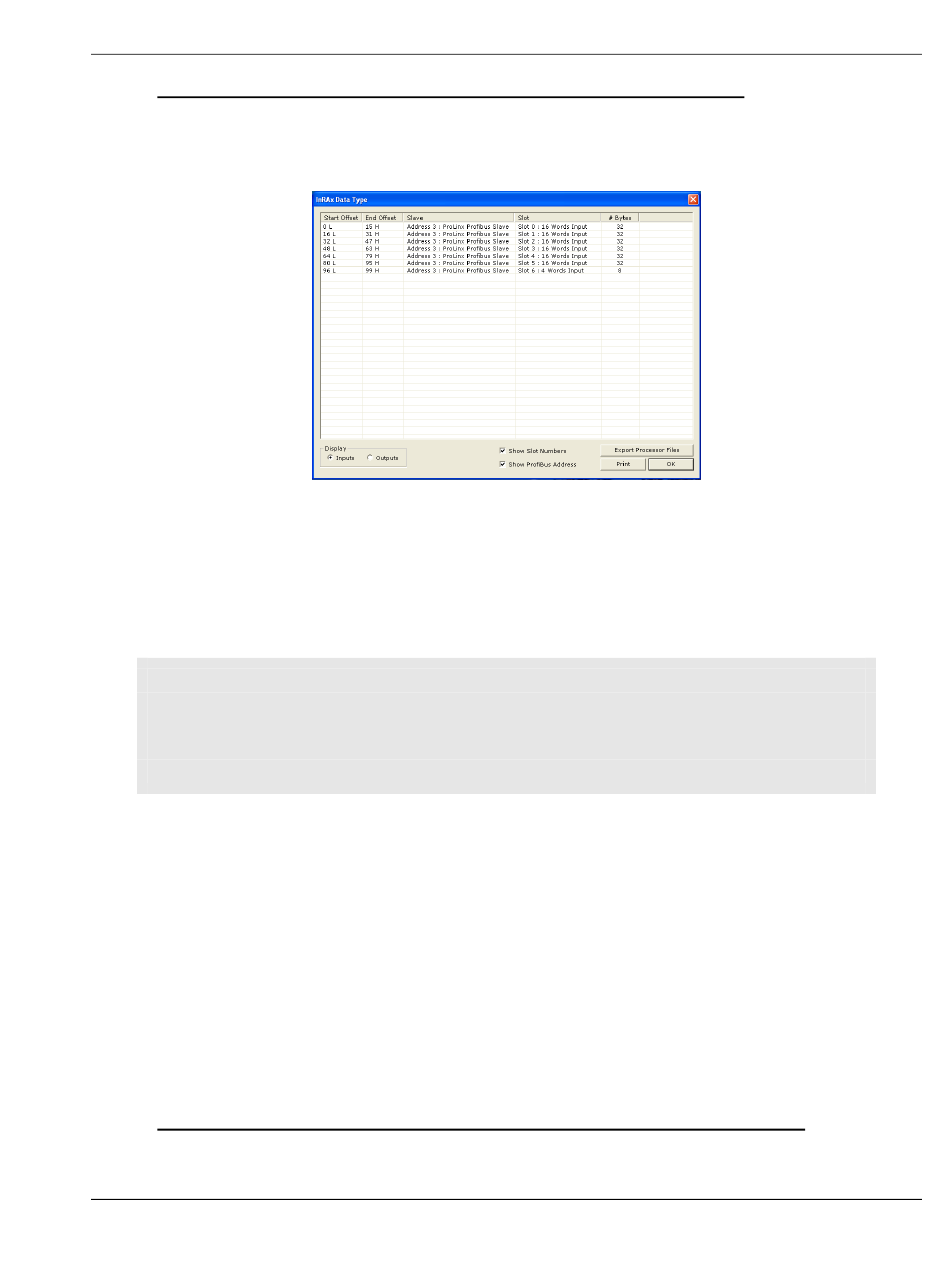

In the inRAx Data Type dialog box, click E
1
Configuration Builder will suggest a file name with the extension .L5X
(RSLogix 5000 export file).
Choose a location for the file that you can access easily from RSLogix 5000
2
(My Documents or Desktop, for example), and then click S
Click OK to close the RSLogix 5000 Data Type dialog box.
3

2.3.5 Exporting the Processor Files for PCB v2.2.0 or later

NOTE: The files created in this step are for use with RSLogix 5000, version 16 or higher. Earlier
versions of RSLogix did not support the Add-On Instructions (AOIs) created by this procedures; so
the files created here will not work with RSLogix 5000, versions 15 or earlier. For those earlier
versions of RSLogix, use the standard sample ladder logic files without AOIs. For details, see
Using the MVI56-PDPMV1 Sample Ladder Logic (page 24).
For your convenience, beginning with version 2.2.0, and later, ProSoft
Configuration Builder (PCB) will create a complete, customized Add-On
Instruction (AOI) Rung Export .L5X file that has been tailored to the specific
configuration you created for your PROFIBUS network and module configuration.
This makes integrating the MVI56-PDPMV1 module into a new or existing
application easier than it has ever been.
For additional details on how to integrate the rung import file into your RSLogix
5000 project, see Import the Ladder Rung: LEGACY (page 29) or Import the
Ladder Rung: FLEX (page 51).
The following procedure will work for either mode and will export appropriate but
different rung import files, depending on which option is selected in the U
L M
EGACY ODE
To Export the AOI Rung Import file from PCB (for version 2.2.0 and later only)
ProSoft Technology, Inc.
November 8, 2010
parameter.
P F
XPORT ROCESSOR ILES
.
AVE
Configure the Module
User Manual
. ProSoft
SE
Page 89 of 235
