ProSoft Technology inRAx MVI56-PDPMV1 User Manual page 71

MVI56-PDPMV1 ♦ ControlLogix Platform
PROFIBUS DPV1 Master

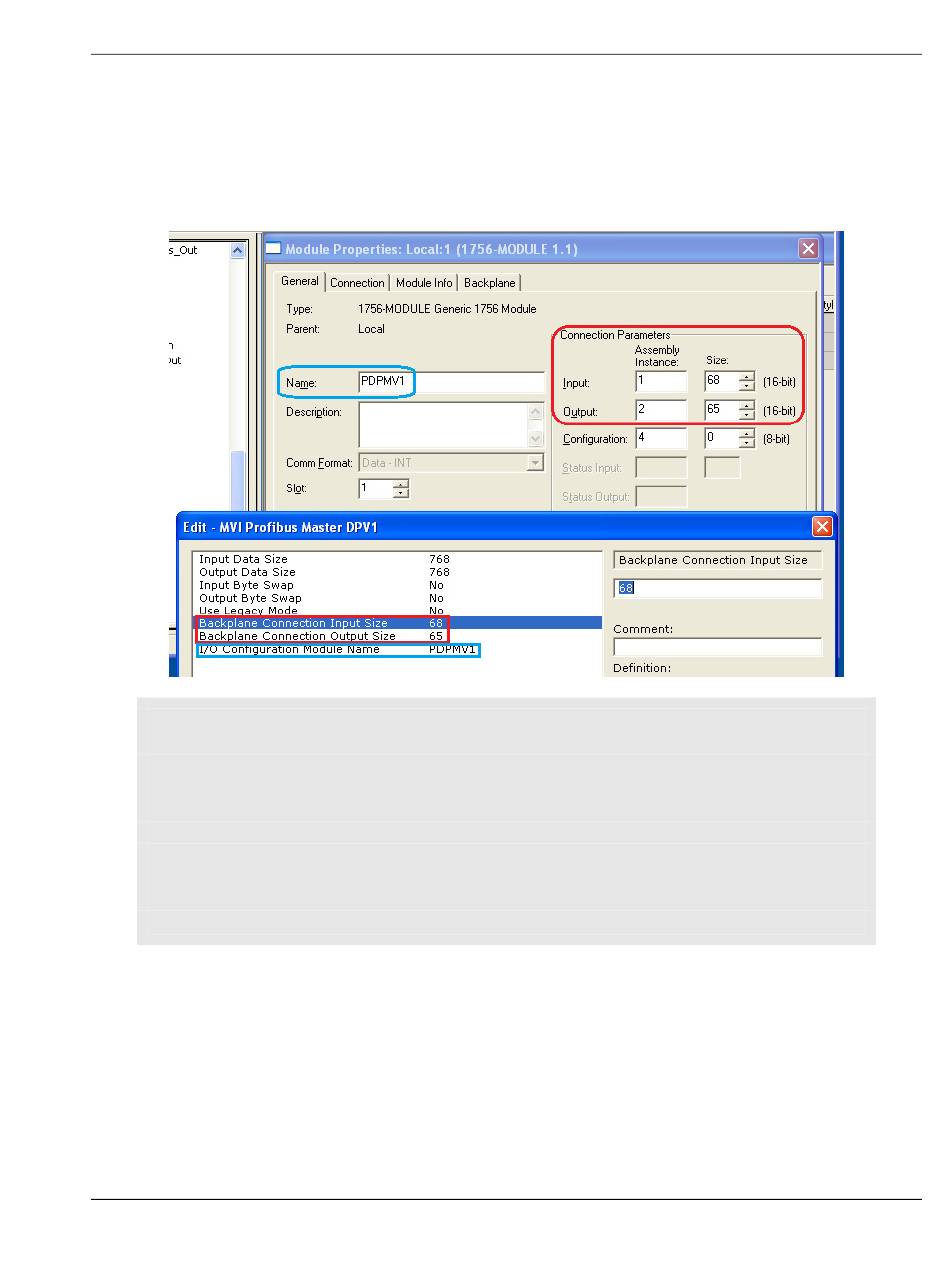

Go to the I/O Configuration folder. Locate the MVI56-PDPMV1 and right-click
5
on it to open a context menu, then left-click on P
Module Properties dialog box. Check and edit (if necessary) the I
Sizes in the Module Properties dialog so that they match those you
O
UTPUT
configured for the module in the ProSoft Configuration Builder (PCB) MVI
Profibus Master DPV1 edit window.
REMEMBER: It is also critically important that the "I/O Configuration Module Name" on the PCB
Edit box be set to match the "Name:" parameter in the RSLogix5000 Module Properties box. The
name you enter in PCB is used to create a communication path for the Status and Acyclic Data
MSG instructions. If the two names are not identical, the import may appear to have completed
successfully; but the module will not work correctly because the MSG instructions will not have the
correct module name in the MSG instruction Communication tab P
If you receive any warning messages from RSLogix 5000, during or after the import, about
duplicate data types being overwritten or not imported, you may safely ignore these messages.
The module will function correctly. You can eliminate any such warning messages by deleting all
UDTs before importing the new ladder rung file.
At this point, you are ready to import your new ladder rung file with your
6
configurations changes. Please, return to the previous section and follow the
procedure found in the topic, Export the Processor Files for PCB v2.2.0 or
later (page 89).
ProSoft Technology, Inc.
November 8, 2010
to open the
ROPERTIES
NPUT
: parameter.
ATH
Page 71 of 235
Start Here
User Manual
and
