• Includes LCC27 SafeLok regulator & hose
• Powerful 12MJ/h stainless steel burner
• Rotary ignition for easy lighting
• Generous cooking area of 1600cm 2
• Satin enamel cast iron cooking surface
• Integrated temperature gauge
• Suitable for camping applications with
direct hose and regulator connection
to gas cylinders only
• Gas certified to Australian
and New Zealand Standards.
LCC27 REGULATOR
SUPPLIED
This LCC27 Regulator can only be used
with the new safer industry standard
LCC27 Gas Cylinder Connection.
Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.

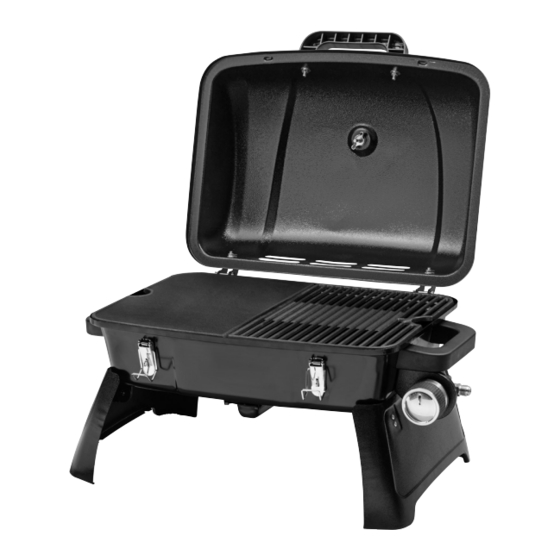

ORBITOR BBQ
For any queries or assistance call Customer Service (Australia Only)
Hours of operation: Monday to Friday 8am - 5pm EST
Do not return to place of purchase.
Important: Retain these instructions for future use.
Gasmate ® is a registered trademark of:
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living Ltd, N.Z www.gasmate.co.nz
Model No. BQ1079
1300 174 876
04425 05/22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate ORBITOR BQ1079
Summary of Contents for Gasmate ORBITOR BQ1079
- Page 1 Keep your purchase receipt, this will be required to make any claims under the 12 month warranty. Important: Retain these instructions for future use. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living Ltd, N.Z www.gasmate.co.nz...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure the control knob is OFF. •... -
Page 3: General Information
GENERAL INFORMATION NEW LCC27 GAS CYLINDER AND Hose & Regulator Safety APPLIANCE CONNECTION The regulator and hose assembly supplied with the barbecue are suitable for Propane Gas This appliance has been supplied with the new or Universal L.P.G. only. safer gas cylinder connection SafeLok LCC27 Type 27 regulator and hose connection. -
Page 4: For Your Safety
GENERAL INFORMATION • After use turn the gas cylinder valve off, FOR YOUR SAFETY wait for the flame to go out, then turn the appliance control valve off. Failure to comply with these instructions • Avoid twisting or kinking the flexible hose. could result in a fire or explosion which could cause serious bodily injury, death •... - Page 5 Keep children away from barbecue during use • DO NOT connect your appliance to a gas and until barbecue has cooled after you have cylinder exceeding 9kg capacity. finished. Do not allow children to operate barbecue. Always ensure that no sporting or physical •...
-
Page 6: Parts List
PARTS LIST Part Description Burner Handle Cooking Plate Valve & Regulator Lid Hinge Left Leg Bowl Hinge Right Leg Cooking Grate Fat Cup... -
Page 7: Hardware List
HARDWARE LIST AA: 1 PC BB: 16 PCS CC: 16 PCS DD: 16 PCS EE: 14 PCS FF: 1 PC GG: 7 PCS HH: 7 PCS II: 6 PCS JJ: 1 PC KK: 2 PCS LL: 2 PCS Hardware listed above is not scaled to exact size. A screwdriver is required on assembly and is included for your convenience. - Page 8 ASSEMBLY INSTRUCTIONS Remove any transit protection material. Estimated Assembly Time: 20 minutes. STEP 1 a) Align the holes on the right back side of body assembly (L) with the holes on the lower hinge (D). b) Insert one bolt (BB) into the pre-drilled hole, sealing it with one flat washer (DD) one spring washer (CC) and one nut (EE).
- Page 9 Step 3 a) Insert the bolts on left handle (A) into each pre-drilled hole and seal one flat washer (HH), one spring washer (GG), and one nut (II) in sequence. b) Repeat the procedure for the right handle (A). c) Tighten all the nuts using the wrench provided. Flat Washer 4 PCS Spring Washer...
- Page 10 STEP 5 Attach the gas valve assembly ensuring the injector is located into the burner tube before securing with the hardware as shown. STEP 6 Insert the ignition cable into the electrode underneath the fire box as shown.
- Page 11 STEP 7 Position the hot plate and grate as shown. STEP 8 Slide the fat cup into the guides as shown.
- Page 12 STEP 9 a) Insert the pre-attached bolts on the lid handle (A) into the holes on the front of the lid and seal with one flat washer (HH), one spring washer (GG) and one nut (II). b) Align the holes on the back side of lid with the holes on the upper hinge (C). c) Insert one bolt (BB) into each pre-drilled hole and seal with one flat washer (DD), one spring washer (CC) and one nut (EE).
-
Page 13: Lighting Procedure
GENERAL INFORMATION LIGHTING PROCEDURE CONNECTING & DISCONNECTING TO GAS SOURCE Burner Operation & Ignition System Check Familiarise yourself with the general information 1. With cylinder valve in ‘OFF’ position check and safety guidelines located at the front the Piezo igniter by pushing in and rotating of this manual. -
Page 14: Operation
OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Piezo igniter is faulty Use a long barbecue match Burner will not ignite inserted through the hole on under side of barbecue Burner has gone out Check that the gas bottle is not... -
Page 15: Care And Maintenance
CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating After cooking, turn burner control to ‘OFF’ condition and prolong their life. Your new gas and let barbecue cool before attempting barbecue is no exception. -
Page 16: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
