Acnodes APM5200 User Manual
  1. Manuals
  2. Brands
  3. Acnodes Manuals
  4. Monitor
  5. APM5200
  6. User manual

Acnodes APM5200 User Manual

20" industrial panel mount lcd monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
APM5200
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2020 Acnodes Corp.

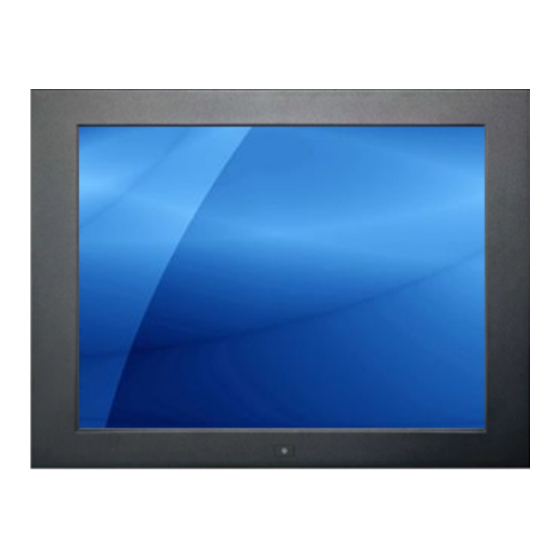

20" Industrial Panel Mount LCD Monitor
Supports 1600 x 1200 Display Resolution
Rugged Aluminum Front Bezel
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the APM5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes APM5200

Summary of Contents for Acnodes APM5200

  • Page 1 Rugged Aluminum Front Bezel User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents APM5200 < Part. 1 > Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options MCS Multi-display control solution AV2.2D Upgrade : DVI-D, S-Video + BNC &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Apm5200

    APM5200 < Part 1 > < 1.1 > Package Content APM5200 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs...

  • Page 6: Structure Diagram & Dimension

    (W x D x H) (W x D x H) Weight 512.5 x 72.1 x 391.6 mm 651 x 124 x 597 mm 7 kg 9 kg APM5200 20.2 x 2.8 x 15.4 inch 25.6 x 4.9 x 23.5 inch 15.4 lb 19.8 lb...
  • Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
  • Page 8 < 1.3 > Installation ( I ) Panel mount ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 9: Product Specifications

    < Part 2 > < 2.1 > Product Specifications APM5200 APM5200-IP Mechanical Design NEMA 4 / IP65 Protection 6mm front bezel Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm Universal mount Desktop stand...
  • Page 10 Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration APM5200 APM5200-IP Physical Specifi cation Product ( W x D x H ) 512.5 x 72.1 x 391.6 512.5 x 72.1 x 391.6 inch 20.2 x 2.8 x 15.4...

  • Page 11: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...

  • Page 12: Part 3 > Options

    < Part 3 > Options < 3.1 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units.
  • Page 13 < 3.2 > Options : AV2.2D Upgrade Options - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
  • Page 14 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
  • Page 15 < 3.3 > Options : Touchscreen & Driver 20" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
  • Page 16 < 3.3 > Options : Touchscreen & Driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4.
  • Page 17 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
