APW5220
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2020 Acnodes Corp.

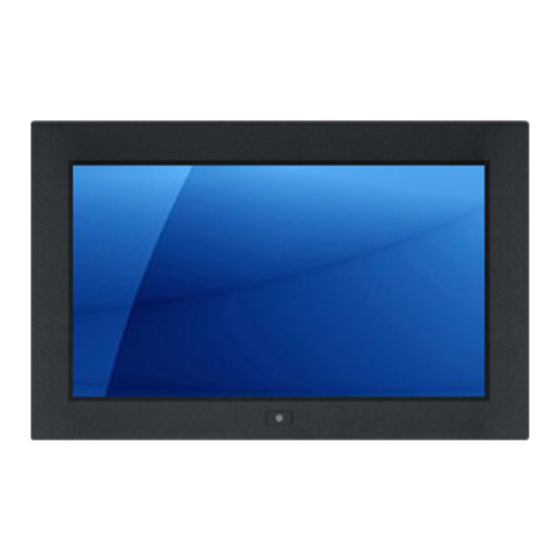

21.5" Widescreen Industrial Monitor
Supports 1920 x 1080 Full HD Resolution
Rugged Aluminum Front Bezel
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes APW5220
Summary of Contents for Acnodes APW5220
- Page 1 Rugged Aluminum Front Bezel User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents APW5220 < Part. 1 > Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input MCS Multi-display control solution P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Apw5220
< Part 1 > APW5220 < 1.1 > Package Content APW5220 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs... -
Page 6: Structure Diagram & Dimension
(W x D x H) (W x D x H) Weight 577.8 x 59.1 x 369.3 mm 659 x 117 x 640 mm 9 kg 12.7 kg APW5220 22.7 x 2.3 x 14.5 inch 25.9 x 4.6 x 25.2 inch 19.8 lb 27.9 lb... - Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
-
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications APW5220 APW5220-IP Mechanical Design Protection 6mm front bezel NEMA 4 / IP65 Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm Universal mount Desktop stnad... - Page 10 Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration APW5220 APW5220-IP Physical Specifi cation Product ( W x D x H ) 577.8 x 59.1 x 369.3 inch 22.7 x 2.3 x 14.5...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 12 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic luminous control : Control the dynamic brightness OSD Set...
-
Page 13: Part. 3 > Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty. - Page 14 < 3.2 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus...
- Page 15 < 3.3 > Upgrade Options : - HMDI ( HDMI 1.4, CEA-861-E ) - Display Port ( DP 1.0, HCDP 1.3 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Power Audio HDMI...
- Page 16 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
-
Page 17: Projected Capacitive ( 10-Point Touch )
< 3.4 > Options : Touchscreen & Driver 21" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive e-Capacitive Technology Projected Capacitive 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Capacitive Stylus Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 2048 x 2048 Touch Point Accuracy... - Page 18 < 3.4 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 19 < 3.5 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
