APM5150
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2020 Acnodes Corp.

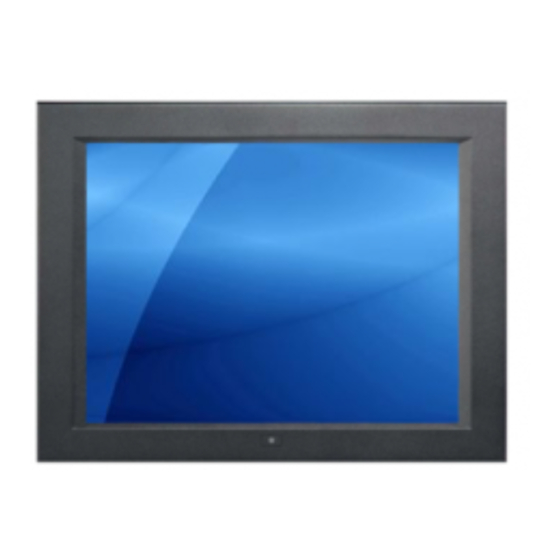

15" Industrial Panel Mount LCD Monitor
Supports 1024 x 768 Display Resolution
Rugged Aluminum Front Bezel
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes APM5150
Summary of Contents for Acnodes APM5150
- Page 1 Rugged Aluminum Front Bezel User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > APM5150 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD Product Specifications On-screen Display Operation ( OSD ) < Part. 3 > Options DVI-D Upgrade : VGA + DVI-D... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Apm5150
< Part 1 > APM5150 < 1.1 > Package Content APM5150 15" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 2 pcs... -
Page 6: Structure Diagram & Dimension
(W x D x H) (W x D x H) Weight 407 x 59.1 x 313.6 mm 615 x 113 x 523 mm 4.7 kg 7.3 kg APM5150 16 x 2.3 x 12.3 inch 24.2 x 4.4 x 20.6 inch 10.3 lb 16.1 lb... - Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 4 pcs x 4 pcs x 2 pcs Hardware set part no. UV-BK#1 Steps ■ Install 2 mounting brackets with 4 x M4*6mm screws ■...
-
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications Mechanical Design APM5150 APM5150-IP Protection 6mm front bezel NEMA 4 / IP65 Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm Universal mount Desktop stand... - Page 10 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration APM5150 APM5150-IP Physical Specification Product ( W x D x H ) 407 x 59.1 x 313.6 407 x 59.1 x 313.6 inch 16 x 2.3 x 12.3...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... -
Page 12: Part. 3 > Options
< Part 3 > Option < 3.1 > Option Table DVI-D Upgrade Options DVI-D Power HDMI Upgrade Options Audio Power HDMI out - in - in Video PC ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 13 < 3.2 > Options : Touchscreen & Driver 15" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 Touch Point Accuracy Response Speed 15 ms 20 ms...
- Page 14 < 3.2 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 15 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
