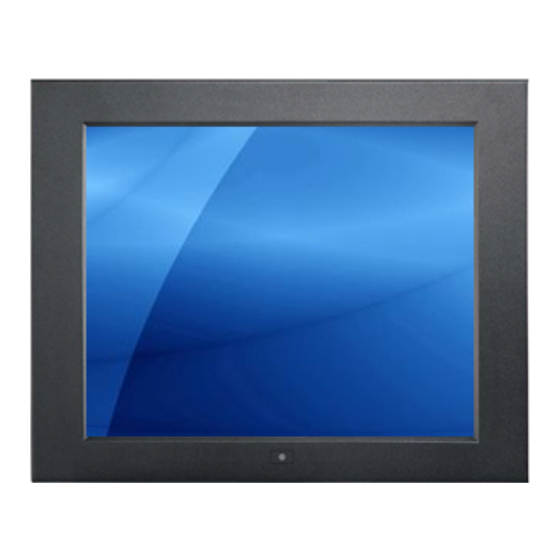

17" Industrial Panel Mount LCD Monitor
Supports 1280 x 1024 Display Resolution
Rugged Aluminum Front Bezel
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Related Manuals for Acnodes APM5170
Summary of Contents for Acnodes APM5170
- Page 1 Rugged Aluminum Front Bezel User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > APM5170 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input MCS Multi-display control solution AV4.4 Upgrade : VGA + DVI-D + HDMI + Audio...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > APM5170 < 1.1 > Package Content APM5170 17" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs...
- Page 6 (W x D x H) (W x D x H) Weight 439 x 64.2 x 356.6 mm 615 x 113 x 523 mm 6.6 kg 9.2 kg APM5170 17.3 x 2.5 x 14 inch 24.2 x 4.4 x 20.6 inch 14.5 lb 20.2 lb...
- Page 7 < 1.2 > Dimension Side View Front View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
- Page 9 < Part 2 > < 2.1 > Product Specifications Mechanical Design APM5170 APM5170-IP Protection 6mm front bezel NEMA 4 / IP65 Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm Universal mount Desktop stand...
- Page 10 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specification APM5170 APM5170-IP Product ( W x D x H ) 439 x 64.2 x 356.6 439 x 64.2 x 356.6 inch 17.3 x 2.5 x 14 17.3 x 2.5 x 14...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
- Page 12 < Part 3 > Option < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 13 < 3.2 > Options : MCS ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus...
- Page 14 < 3.3 > Options : Upgrade I/O AV4.4 upgrade I/O Audio Power DVI-D HDMI out - in - in Video PC BNC upgrade I/O Audio Power DVI-D out - in - in Video PC ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
- Page 15 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
- Page 16 < 3.4 > Options : Touchscreen & Driver 17" USB Touchscreen Specification Model e-Resistive TPC-10 Multi-touch Technology Projected Capacitive 5-Wire Resistive Touch Point Single Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 2048 x 2048 2048 x 2048 Touch Point Accuracy ±...
- Page 17 < 3.4 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 18 < 3.5 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
