Acnodes APH9190 User Manual

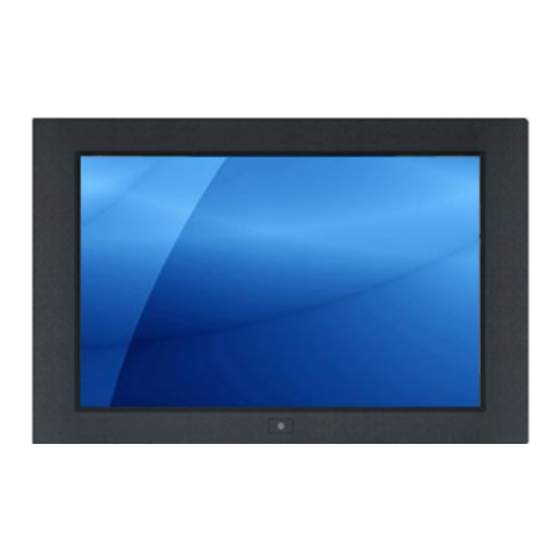

19” 1440x900 widescreen lcd aluminum front bezel 1000-nit high brightness lcd
Hide thumbs Also See for APH9190:
Table of Contents

Advertisement

Quick Links

Download this manual
APH9190
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA91710
© Copyright 2015 Acnodes Corp.
19 " 1 4 4 0 x 9 0 0 Widescreen L C D
A l u m i n u m F r o n t B e z e l
1 0 0 0 - n i t H i g h B r i g h t n e s s L C D
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APH9190 and is the answer not in the manual?

Questions and answers

Related Manuals for Acnodes APH9190

Summary of Contents for Acnodes APH9190

  • Page 1 1 0 0 0 - n i t H i g h B r i g h t n e s s L C D User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > APH9190 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > Specifications / OSD P.6 - 7 Product Specifications On-screen Display Operation ( OSD ) <...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Aph9190

    < Part 1 > < 1.1 > Package Content APH9190 W19" High Brightness LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs...

  • Page 6: Structure Diagram & Dimension

    (W x D x H) Weight Weight 508.5 x 65.6 x 338.1 mm 662 x 115 x 533 mm 5 kg 10 kg APH9190 20 x 2.6 x 13.3 inch 26.1 x 4.5 x 21 inch 11 lbs 22 lbs...
  • Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...

  • Page 8: Mounting Hardware & Installation

    < 1.3 > Panel Mount Installation M4*6mm screw M4*50mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■ Adjust the LCD panel with 8 x M4*50mm screws and fix it on the surface.
  • Page 9 < 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided...

  • Page 10: Product Specifications

    < Part 2 > < 2.1 > Product Specifications Mechanical APH9190 Design Front Panel Black, RAL 9005 Rear Casing Dark grey, RAL 7037 VESA Mounting 100 x 100mm Other Mounting Panel mount Protection 3mm protective glass Panel Size ( diagonal )
  • Page 11 Physical Product ( W x D x H ) 508.5 x 65.6 x 338.1 mm Specification 20 x 2.6 x 13.3 inch Packing ( W x D x H ) 662 x 115 x 533 mm 26.1 x 4.5 x 21 inch Net Weight 5 kgs / 11 lbs Gross Weight...

  • Page 12: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...

  • Page 13: Part 3 > Options

    < Part 3 > Options < 3.1 > Option Table Options SDI *** HDMI * or DVI-D S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector Quad display TV ( Analog ) * Auto / switch dimming About SDI ( 1 ) The AD board will be upgraded to version 3.0, and this comes standard with HDMI, DVI-D,...
  • Page 14 < 3.2 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Acnodes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
  • Page 15 < 3.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and...

  • Page 16: Av2.2D Upgrade : Dvi-D, S-Video + Bnc & Audio

    < 3.4 > Options : AV2.2D Upgrade Options - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio Power BNC S-Video DVI-D...
  • Page 17 POWER Switches on or off the TV MUTE Turn on or off the speaker Switch to AV mode Select channels. For channel numbers 10 and above, 0- 9 enter the second digit within two seconds. V + / - Increase or decrease the speaker volume CH + / - Increase or decrease the channel number MENU...
  • Page 18 < 3.5 > AV3.0 Upgrade Options : - HMDI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio Power BNC S-Video DVI-D...

  • Page 19: Resistive / Capacitive ( Single Point Touch )

    < 3.6 > Options : Touchscreen & driver HW19" USB Touchscreen Specification Model e-Resistive TCB e-Capacitive Technology 5-Wire Resistive Capacitive Single Single Touch Point Input Type Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 Touch Point Accuracy Response Speed 15 ms 20 ms...
  • Page 20 < 3.6 > Options : Touchscreen & driver TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4.
  • Page 21 < 3.7 > Options : DC Power Model Input rating Input voltage: 24-Volt 48-Volt Input range: 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage: 12-Volt 12-Volt...
  • Page 22 < 3.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - DTL - 26482 MIL - type MS3470W8-33P DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design flexibility possible.
  • Page 23 < 3.9 > Options : Quad Display QD Specification Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate 1.0 Vpp, 75 Ohm x 4 Camera Input Video Input 1.0 Vpp, 75 Ohm x 1...

  • Page 24: Tv ( Analog )

    < 3.10 > Options : TV ( Analog ) Audio Power BNC S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller.
  • Page 25 How to Use RC-2 Remote Controller INPUT MUTE -/-- AUTO FREEZE MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP POSITION SOURCE AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
  • Page 26 < 3.11 > Options : Auto Dimming DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor will be installed on the display front panel when auto dimming is ON in OSD menu.
