Acnodes APW5240 User Manual

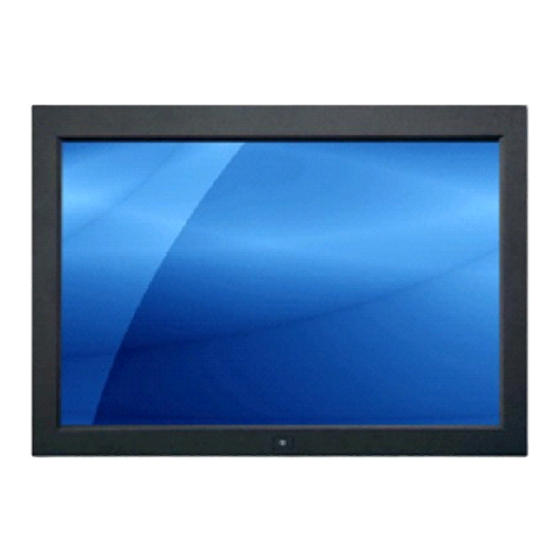

24.1" widescreen industrial monitor supports 1920 x 1200 wuxga resolution rugged aluminum front bezel
Hide thumbs Also See for APW5240:

Advertisement

Quick Links

Download this manual
APW5240
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2022 Acnodes Corp.
24.1" Widescreen Industrial Monitor
Supports 1920 x 1200 WUXGA Resolution
Rugged Aluminum Front Bezel
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the APW5240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes APW5240

Summary of Contents for Acnodes APW5240

  • Page 1 Rugged Aluminum Front Bezel User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, June 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents APW5240 < Part. 1 > Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD Product Specifi cations On-screen Display Operation ( OSD ) Picture In Picture ( PIP ) / Picture By Picture ( PBP ) Remote Controller ( RC-2 ) P.11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Apw5240

    < Part 1 > APW5240 < 1.1 > Package Content APW5240 24” High Resolution LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs...

  • Page 6: Structure Diagram & Dimension

    Weight 620.4 x 70.1 x 426 mm 701 x 121 x 685 mm 10.9 kg 14.7 kg APW5240 24.4 x 2.8 x 16.8 inch 27.6 x 4.8 x 27 inch 24 lb 32.3 lb 620.4 x 70.1 x 426 mm 701 x 121 x 685 mm 12.4 kg...
  • Page 7 < 1.2 > Dimension Side View Front View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
  • Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 9: Product Specifi Cations

    < Part 2 > < 2.1 > Product Specifi cations Mechanical Design APW5240 APW5240-IP Protection 6mm front bezel NEMA 4 / IP65 Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm Universal mount...
  • Page 10 Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration APW5240-IP APW5240 Physical Specifi cation Product ( W x D x H ) 620.4 x 70.1 x 426 inch 24.4 x 2.8 x 16.8...

  • Page 11: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
  • Page 12 < 2.2 > On-screen Display Operation ( OSD ) Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value : Adjust the saturation of the image color Saturation Dynamic...

  • Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 14 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...

  • Page 15: Remote Controller ( Rc-2 )

    < 2.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 16: Part. 3 > Options

    < Part 3 > Option < 3.1 > Options : 3G / HD / SD-SDI Input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 17 < 3.2 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus...
  • Page 18 < 3.3 > Options : Touchscreen & Driver 24" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
  • Page 19 < 3.4 > Options : Touchscreen & Driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4.
  • Page 20 < 3.5 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
