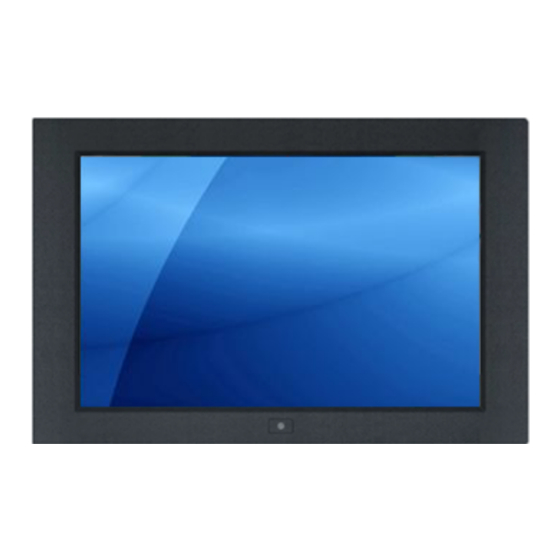

Acnodes APH9190 User Manual

Widescreen industrial lcd monitor
Hide thumbs Also See for APH9190:

Advertisement

Quick Links

Download this manual
APH9190
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2022 Acnodes Corp.
19" Widescreen Industrial LCD Monitor
Supports 1440 x 900 Resolution
1000-Nits High Brightness Display
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the APH9190 and is the answer not in the manual?

Questions and answers

Related Manuals for Acnodes APH9190

Summary of Contents for Acnodes APH9190

  • Page 1 1000-Nits High Brightness Display User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents APH9190 < Part. 1 > Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options P.10 3G / HD / SD-SDI Broadcast-grade input P.11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Aph9190

    APH9190 < Part 1 > < 1.1 > Package Content APH9190 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs...

  • Page 6: Structure Diagram & Dimension

    (W x D x H) (W x D x H) Weight 508.5 x 65.6 x 338.1 mm 662 x 115 x 533 mm 7 kg 10 kg APH9190 20 x 2.6 x 13.3 inch 26.1 x 4.5 x 21 inch 15.4 lb 22 lb...
  • Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
  • Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 9: Part. 2 > Specifications / Osd

    < Part 2 > Specifications / OSD < 2.1 > Product Specifications APH9190 Mechanical Design APH9190-IP NEMA 4 / IP65 Protection 6mm front bezel Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm...
  • Page 10 Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration APH9190 APH9190-IP Physical Specifi cation Product ( W x D x H ) 508.5 x 65.6 x 338.1 508.5 x 65.6 x 338.1 20 x 2.6 x 13.3 inch 20 x 2.6 x 13.3...

  • Page 11: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
  • Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 13 < 2.2 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to Full HD ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )

  • Page 14: Part. 3 > Options

    < Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 15 < 3.2 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus...
  • Page 16 < 3.3 > Options : Upgrade I/O HDMI Upgrade Options - HDMI ( HDMI 1.2 / HDCP 1.1 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power DVI-D...
  • Page 17 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
  • Page 18 < 3.4 > Options : Touchscreen & Driver 19" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
  • Page 19 < 3.4 > Options : Touchscreen & Driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4.
  • Page 20 < 3.5 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...

  • Page 21: Sunlight Readable : Auto Dimming

    < 3.6 > Options for Sunlight Readable : Auto Dimming DA-01 Light sensor on APH model DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu. Then display brightness changes according to its ambient brightness. Each change causes 10% in- crease or decrease on display brightness.
