HPA 100/110/120 AC / HPA 130 DC
High Voltage Test Unit
USER GUIDE
Issue:
A (11/2021) - EN
Item number:
128311818

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPA 100 AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Megger HPA 100 AC

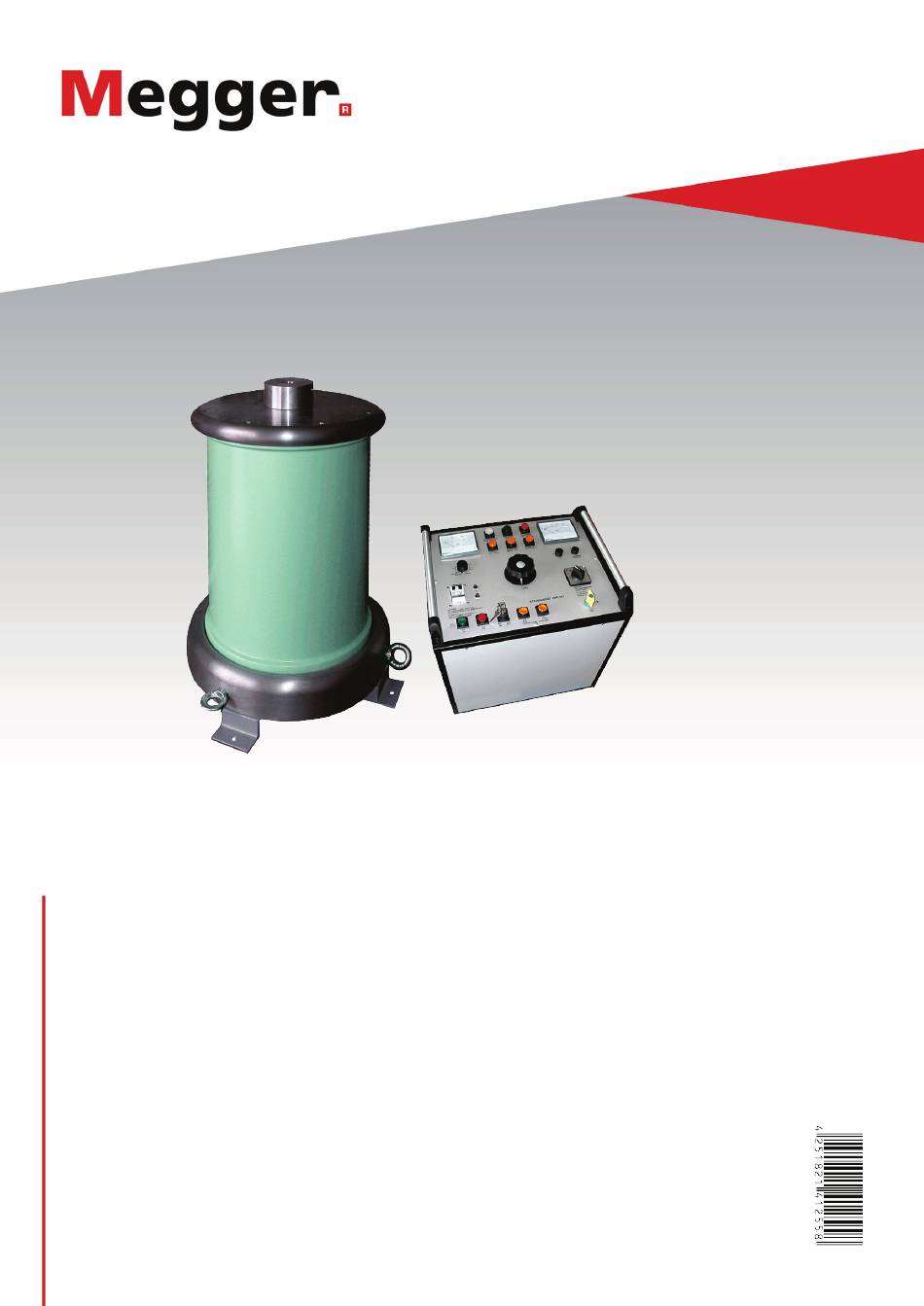

  • Page 1 HPA 100/110/120 AC / HPA 130 DC High Voltage Test Unit USER GUIDE Issue: A (11/2021) - EN Item number: 128311818...
  • Page 3 E: sales@sebakmt.com  Megger All rights reserved. No part of this handbook may be copied by photographic or other means unless Megger have before-hand declared their consent in writing. The content of this handbook is subject to change without notice. Megger cannot be made liable for technical or printing errors or shortcomings of this handbook.
  • Page 5 Each component and product replaced in accordance with this warranty becomes the property of Megger. All warranty claims versus Megger are hereby limited to a period of 12 months from the date of delivery. Each component supplied by Megger within the context of warranty will also be covered by this warranty for the remaining period of time but for 90 days at least.
  • Page 7: Table Of Contents

    List of contents Safety Advice ....................1 Technical Data ....................5 General ......................7 Design ......................9 Electrical Connection ................... 10 Putting into Operation .................. 12 Overcurrent Protection ................14 Discharging the Cable System ..............16...
  • Page 9: Safety Advice

    Only authorised persons with sufficient expertise are allowed to operate the device. Repair and maintenance Repairs and service must only be done by Megger or authorised service departments of Megger. Megger recommends having the equipment serviced and checked once per year at a Megger service location.
  • Page 10 In this case inform the person in charge who should inform the Megger service to resolve the problem. The instrument may only be operated when the malfunction is resolved.
  • Page 11 • If, contrary to the regulations, any other extinguishing agent is used for fire fighting, this may lead to damage at the electrical installation. Megger disclaims any liability for consequential damage. Furthermore, when using a powder extinguisher near...
  • Page 12 Dangers when operating with HV Special attention and safety-conscious behaviour is needed when operating HV facilities and especially non-stationary equipment. The regulations VDE 0104 about setting up and operation of electric test equipment, i.e. the corresponding EN 50191 as well as country-specific regulations and standards must be observed.
  • Page 13: Technical Data

    Technical Data Voltage control unit HSG 10 – 1 Output power 5 kVA Short-time operation 7,5 kVA Mains voltage 220 V Adjustable Voltage 0 ... 250 V Measuring range 50 / 100 / 150 kV Dimensions 520 x 430 x 465 mm Weight 75 kg High voltage transformer HTR 100/110/120...
  • Page 15: General

    General The Megger High Voltage Test Equipment is designed for mounting in a cable test van and is used for testing of cable installations and for burning down high resistance cable faults with ignition voltages in the high voltage range.
  • Page 17: Design

    Design 14 13 16 17 18 30 28 Figure 1 : Operation panel 1. Bu.2-Earthing switch 18. Pilot lamp ”Shock discharge 100kV” 2. Bu.7-Indication panel 19. mA-Range switch 3. Bu.3-Impulsing/Testing 20. Milliammeter 4. Bu.4-Impulsing 50kV/100kV 21. Operation selection switch 5. Bu.5-Emergency-Off-Switch 22.
  • Page 18: Electrical Connection

    Electrical Connection Figure 2 : HTR connection panel HV connection point Operational earth HGL 150* HSG 10-1 Phase (31) * HGL 150 is only to be used in DC operation mode Figure 3 : Electrical connection...
  • Page 20: Putting Into Operation

    Putting into Operation 1. Set variac (23) to position ZERO. 2. Set current range switch (19) to the largest test range. 3. Set operation selection switch (21) to the desired operation mode. 4. Switch on the circuit breaker (29). Now the green pilot lamp (15) lights up indicating that the instrument is ready for operation.
  • Page 22: Overcurrent Protection

    Overcurrent Protection As soon as overcurrent (e.g. due to shorted HV output) is detected, the circuit breaker (29) blows. The high voltage transformer is immediately disconnected and the HSG 10-1 is switched off. The variac (23) has to be set to Zero position (fully to the left).
  • Page 24: Discharging The Cable System

    Discharging the Cable System After the test has been finished, the cable capacitance has to be safely discharged and, afterwards, visibly earthed according to VDE 0105. If available, the cable is automatically discharged via the discharge device installed in the test van. Otherwise, a discharge rod with appropriate dimensions has to be used.
  • Page 25 Tento symbol indikuje, že výrobek nesoucí takovéto označení nelze likvidovat společně s běžným domovním odpadem. Jelikož se jedná o produkt obchodovaný mezi podnikatelskými subjekty (B2B), nelze jej likvidovat ani ve veřejných sběrných dvorech. Pokud se potřebujete tohoto výrobku zbavit, obraťte se na organizaci specializující se na likvidaci starých elektrických spotřebičů...
