Hardware Management

About the StorCenter ix2-dl Components

This topic describes the front and rear panel components of the StorCenter ix2-dl.

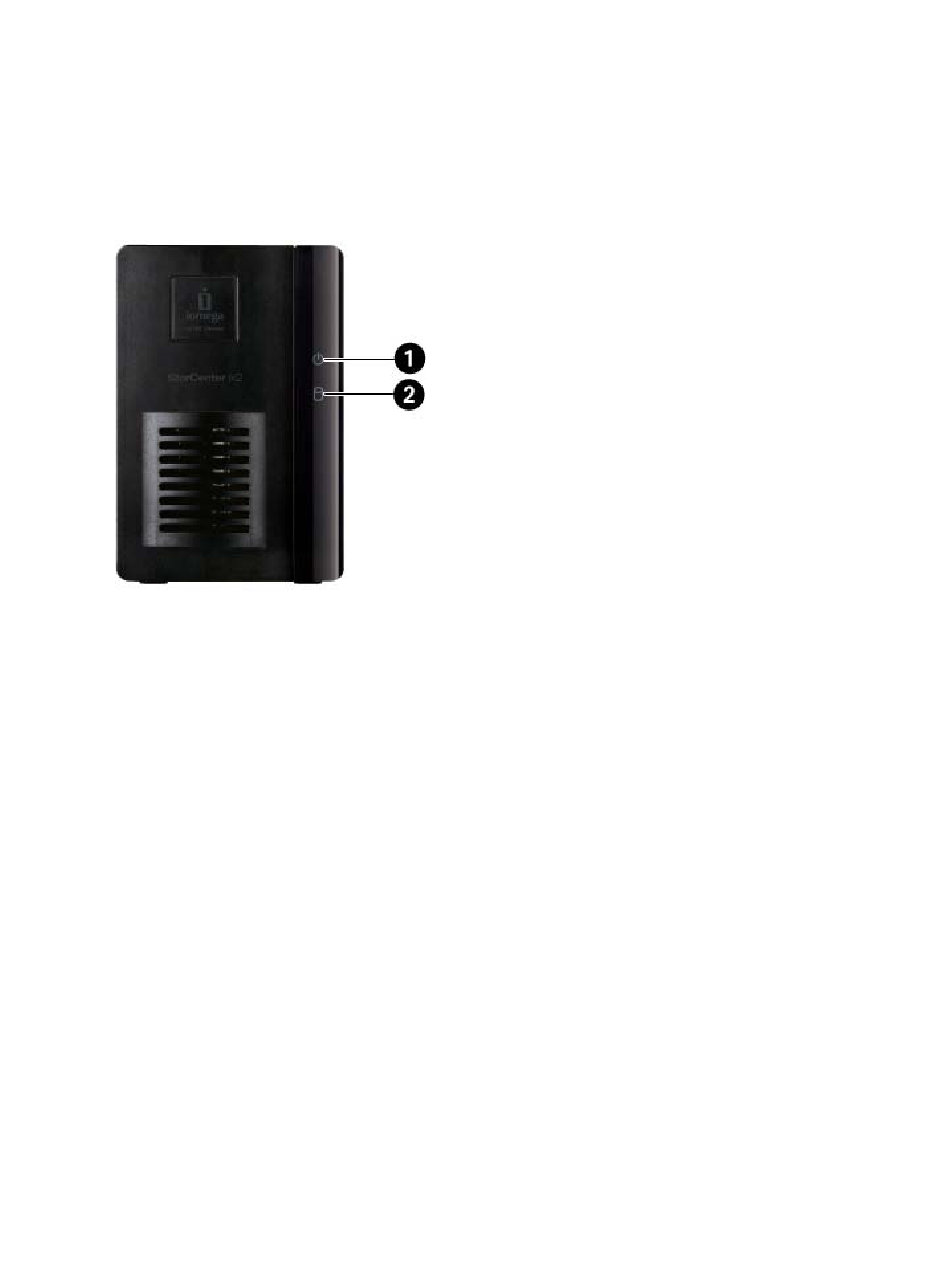

Front Panel

Status Indicators, Buttons and Ports
1. Power/Status Indicator — Displays the current operational status of the StorCenter ix2-dl.
•
Solid White — StorCenter ix2-dl is healthy.
•
Flashing White — Flashes when the StorCenter ix2-dl is starting up or shutting down.
•
Flashing Red — System or drive error. System software will indicate error.
•
Alternating White and Red: System software will indicate error.
2. Drive Activity Indicator — Displays the current drive status of the StorCenter ix2-dl.
•
Solid Blue — StorCenter ix2-dl drive is healthy.
•
Flashing Blue — Read/Write activity.
•
Solid Red — Drive error. System software will indicate error.

Rear Panel
