HEINE Ophthalmoscope BETA 200 Manual

Instructions

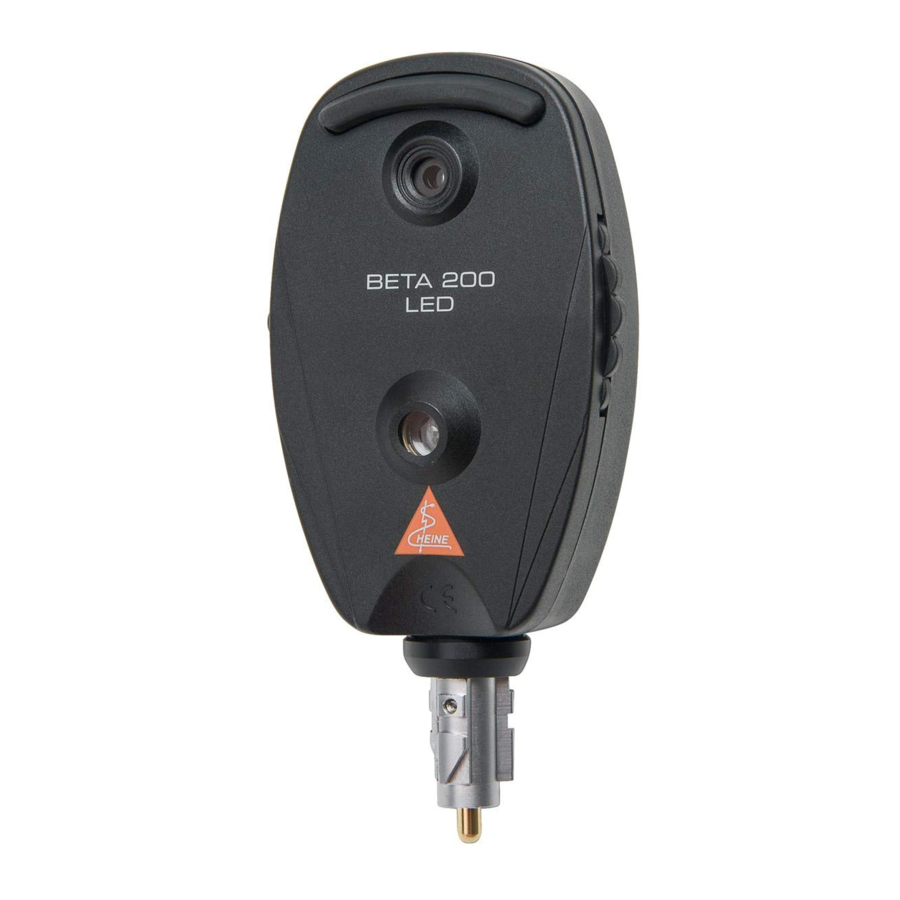

Ophthalmoscope HEINE BETA 200^®

Before using the Ophthalmoscope HEINE BETA 200^® read these instructions carefully and keep them in a safe place for future reference.

In accordance with local regulations this product should be disposed of as an electronic device separately.

Safety information

Range of applications: This instrument is designed for examination of the eye.

Safety in use: Use only handles or devices which are specifically designed for medical use as a power supply. The supply voltage must the same as bulb voltage.

Please note: The performance of this instrument can only be guaranteed if genuine HEINE rechargeable batteries or alkali manganese batteries are used.

Key to Illustrations

1. Spectacle rest
2. Dustproof viewing aperture
3. Lens wheel
   +dpt: 1-10 | 15 | 20 | 40
   –dpt: 1-10 | 15 | 20 | 25 | 35
4. Diopter readout (plus = green, minus = red)
5. Thumbrest
6. HEINE XHL^® Xenon halogen bulb
7. Locating pin
8. Dustproof window
9. Aperture wheel
10. Filter selector (an interference red-free filter can be combined with any aperture)

Using the instrument

To ensure maximum user comfort, hold the instrument so that the thumb is located on the thumbrest (5). This makes it possible to operate the lens wheel (3), aperture wheel (9), and filter selector (10).

Changing the bulb

Please note: The performance of this instruments can only be guaranteed if genuine HEINE bulbs are used.
Simply detach the ophthalmoscope from the handle and pull the bulb out.
Clean the glass of the new bulb with a soft cloth.
Insert the bulb fully into the body of the instrument. The pin must locate in the groove.

Cleaning

The instrument housing can be cleaned with a cloth moistened with alcohol. Clean the glass of (2) and (8) and the diopter readout (4) with a cotton-wool bud moistened with alcohol. The tip should be rotated without excessive pressure in a spiral from the centre to the edge of the window.

Spare part and accessories

Warranty

Instead of the usual 2-year guarantee, we guarantee this device for 5 years from the date of delivery from our factory (this excludes consumables such as bulbs, tips and batteries).
In the case of a complaint of a defect in the product during the guarantee period, the buyer must prove that any such defect was present at the time the product was delivered.
Further claims, in particular claims for damage not directly related to the HEINE product, are excluded.
For repairs, please contact your supplier, who will return the goods to us or our authorized agent.

HEINE Optotechnik GmbH & Co. KG
Kientalstr. 7 · 82211 Herrsching · Germany
Tel. + 49(0)81 52/38-0
Fax +49(0) 8152/38 -202
E-mail: info@heine.com
www.heine.com
