Netopia R3100-U User Reference Manual page 43

Static configuration (optional)
If you are manually configuring for a fixed or static IP address,
perform the following:
1. Go to the Apple menu. Select Control Panels and then
TCP/IP or MacTCP.
2. With the TCP/IP window open, go to the Edit menu and
select User Mode. Choose Advanced and click OK.
Or, in the MacTCP window, select Ethernet and click the
More button.

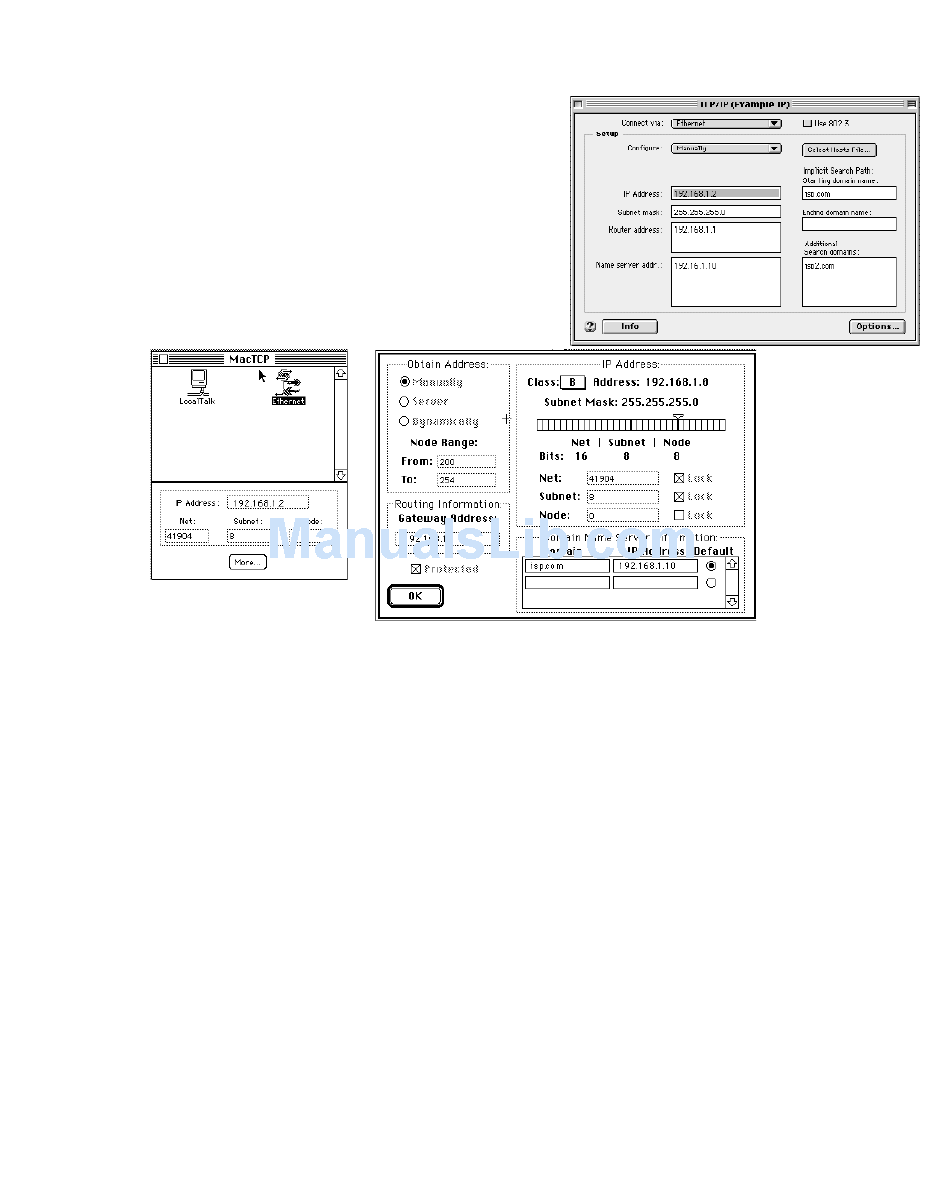

3. In the TCP/IP window or in the MacTCP/More window, select or type information into the fields as shown in
the following table.
Connect via:
Configure:
IP Address:
Subnet mask:
Router address:
Name server address:
Implicit Search Path:
Starting domain name:
4. Close the TCP/IP or MacTCP control panel and save the settings.
5. If you are using MacTCP, you must restart the computer. If you are using Open Transport, you do not need
to restart. These are the only fields you need to modify in this screen.
Note: You can also use these instructions to configure other computers on your network with manual or static
IP addresses. Be sure each computer on your network has its own IP address.
Option:
Ethernet
Manually
192.168.1.2
255.255.255.0
192.168.1.1
Enter the primary and secondary name server
addresses given to you by your ISP
Enter your domain name; if you do not have a
domain name, enter the domain name of your ISP
Setting up your Router with the SmartStart Wizard 3-15
Select/Type:
