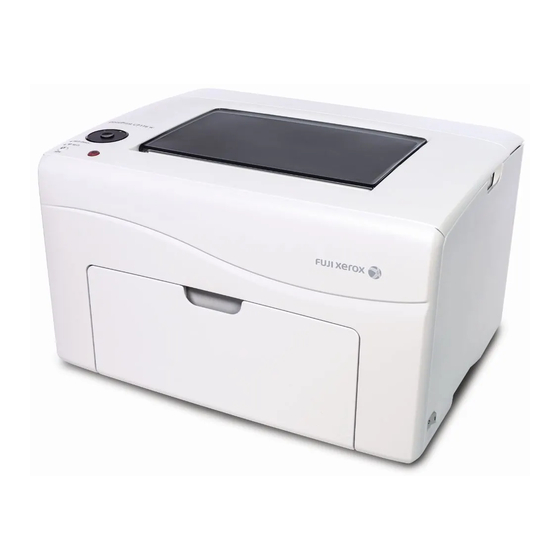

Summary of Contents for Fuji Xerox DocuPrint CP116 w
- Page 1 DocuPrint CP116 w DocuPrint CP115 w User Guide...
- Page 2 It may be a legal offence to print currency notes, certificates of stocks and securities, or any other documents of similar nature, regardless of whether they will be used. Fuji Xerox is not responsible for any breakdown of machines due to infection of computer virus or computer hacking. IMPORTANT: 1.
-
Page 3: Preface
Preface Thank you for purchasing the DocuPrint CP116 w/DocuPrint CP115 w. This guide is intended for users who use the printer for the first time, and provides all the necessary operating information about the print function. Please read this guide to achieve the best performance from this printer. -
Page 4: Table Of Contents
Contents Preface ............................3 Types of Manuals ........................8 Using This Guide .........................9 Organization........................9 Conventions ........................9 Product Features ........................10 Specifications ................... 11 Basic Operation ..................14 Main Components......................15 Front View ......................15 Rear View......................15 Operator Panel ....................16 Turning On/Off the Printer.....................18 Turning On Your Printer ...................18 Turning Off Your Printer ...................18 Power Saver Mode .......................19 Setting the Time of the Power Saver Mode............19... - Page 5 Setting Up for Shared Printing .................50 Configuring Printer and Installing Software on Mac OS X ..........59 Installing Software ....................59 Adding a Printer ....................59 Configuring Printer and Installing the Print Driver on Linux (CUPS)......64 Installing the Print Driver ..................64 Setting Up the Queue..................65 Setting the Default Queue ................65 Specifying the Printing Options ................66 Printing Basics..................
- Page 6 Identifying the Location of Paper Jams ............112 Clearing Paper Jams From the Front of the Printer ........113 Clearing Paper Jams From the Rear of the Printer ........114 Clearing Paper Jams From the Center Output Tray........116 Jam Problems ....................118 Basic Printer Problems ....................119 Printing Problems......................120 Print Quality Problems ....................121 The Output Is Too Light .................121...
- Page 7 Checking or Managing the Printer With the CentreWare Internet Services ...152 Checking Printer Status With the SimpleMonitor (Windows Only) ....152 Checking Printer Status Through E-mail ............152 Conserving Supplies ....................154 Checking Page Counts ....................155 Moving the Printer.......................156 Contacting Fuji Xerox ................159 Technical Support .......................160 Online Services......................161 Index........................162 Contents...
-
Page 8: Types Of Manuals
Types of Manuals Paper Manuals Safety Guide Describes the information you need to know before using the printer and how to operate the printer safely. Setup Guide Provides step-by-step instructions on how to set up your printer. Also describes how to check network connection. Operator Panel Guide Describes the icons assigned to the buttons or indicators on the operator panel. -
Page 9: Using This Guide
Describes the troubleshooting tips for printer problems such as paper jams. Maintenance Describes how to clean the printer, how to replace toner cartridges, and how to see the printer status. 10Contacting Fuji Xerox Describes support information. Conventions • In this guide, personal computers and workstations are collectively called "computers". -
Page 10: Product Features
For more information, refer to the Help provided for the For more information, see "Wireless Connection" on print driver. page 31. Fuji Xerox Imaging Technology Conventional technology Jagged line Enhanced image Smooth line This printer reproduces smooth lines and gradations by 1200 x 2400 dpi high-resolution LED print heads and Micro Accurate Control Screen (MACS) Technology. -
Page 11: Specifications
This chapter lists the main specifications of the printer. Note that the specifications of the product may change without prior notice. Items Description Product Code DocuPrint CP116 w 220V: TL300860 DocuPrint CP116 w 110V: TL300863 DocuPrint CP115 w 220V: TL300855 DocuPrint CP115 w 110V: TL300858 Type... - Page 12 ® Ubuntu 12.04 (64-bit) IMPORTANT: • For information about the latest supported OS, refer to the Fuji Xerox web site. Interface USB 2.0 (Hi-Speed), IEEE 802.11b/802.11g/802.11n Supported Protocol TCP/IP (IPv4/IPv6, LPD, IPP, IPPS, Port9100, WSD, HTTP, HTTPS, RARP, AutoIP), SNMP, DHCP, DHCPv6, BOOTP, Bonjour (mDNS), AirPrint NOTE: •...
- Page 13 Items Description Operating Noise During operation: 6.1 B; 46.8 dB (A) During stand-by: 3.6 B; 25.6 dB (A) IMPORTANT: • Measurements based on ISO7779 Unit B: acoustic power level (LwAd) Unit dB (A): radiated sound pressure (bystander position) Power Consumption Maximum power consumption: 790 W or less Low power mode : 9 W or less Sleep mode : 2.0 W or less...
-
Page 14: Basic Operation
Basic Operation • "Main Components" on page 15 • "Turning On/Off the Printer" on page 18 • "Power Saver Mode" on page 19 Basic Operation... -
Page 15: Main Components
Main Components Front View Operator Panel Center Output Tray Output Tray Extension Print Head Cleaning Rod Toner Access Cover Power Switch Paper Width Guides Multipurpose Feeder Front Cover 10 Slide Bar 11 Length Guide 12 Paper Cover Rear View Power Connector Rear Cover Handle USB Port... -
Page 16: Operator Panel
Operator Panel Toner indicators Indicates that the toner is low or empty, or toner error occurred. (Power Saver) indicator Lights up in the power saver mode. (Jam) indicator Lights up when a paper jam occurs. (Stop) button Cancels the current print job or clears an error. (Start) button/indicator Starts 2 sided printing after loading paper. - Page 17 Status of Wi-Fi LED This section describes when the (Wi-Fi) LED lights up or blinks. See also: • "Wireless Problems" on page 133 (Wi-Fi) LED Printer Status No wireless LAN access point or router on which the WPS operation is being performed found within the specified time Entering the power saver mode Wireless link established...
-
Page 18: Turning On/Off The Printer
Turning On/Off the Printer Turning On Your Printer IMPORTANT: • Do not use extension cords or power strips. • The printer should not be connected to an uninterruptible power supply (UPS) system. Connect the power cord to the power connector on the rear of your printer (see "Rear View" on page 15). Connect the other end of the cord to the power source. -
Page 19: Power Saver Mode
® The following procedure uses Microsoft Windows 7 as an example. Click Start All Programs Fuji Xerox Fuji Xerox Printer Software for Asia-Pacific your printer Printer Setting Utility. NOTE: • The window to select a printer appears in this step, when multiple print drivers are installed on your computer. In this case, click the name of the desired printer listed in Printer Name. -
Page 20: Printer Management Software
Printer Management Software Use the Software Pack CD-ROM that shipped with your printer to install a combination of software programs, depending on your operating system. • "Print Driver" on page 21 • "CentreWare Internet Services" on page 22 • "Printer Setting Utility" on page 23 •...
Need help?
Do you have a question about the DocuPrint CP116 w and is the answer not in the manual?
Questions and answers
WHAT IS THE PIN FOR DOCUPRINT CP116w?
The PIN for Fuji Xerox DocuPrint CP116w can be confirmed under Wi-Fi Direct Setup in the Printer Setting Utility. You can also print the PIN code by selecting the "Print PIN Code" option.
This answer is automatically generated
