Fuji Xerox DocuPrint CP315 dw Setting Up

.
Wifi Setup DocuPrint CP315 dw
Setting up the
DocuPrint CP315 dw
printer on a wireless
network
Before you begin
Ensure you have connected the Wireless
LAN Adapter to the rear of the machine.
See over page for instructions.
Ensure you have the name of your wireless
network (SSID), wireless network password,
security and encryption types.
To find the name and type of security
encryption of your wireless network on
your computer (example Windows 7):
a) Go to the Start Menu. Select Control
Panel and click on Network and
Sharing Centre .
b) Click on Manage Wireless Networks.
Double click on your preferred wireless
network. Note the SSID. Click on the
security tab. Note the security
encryption type.
Connecting to
the Wireless
Network

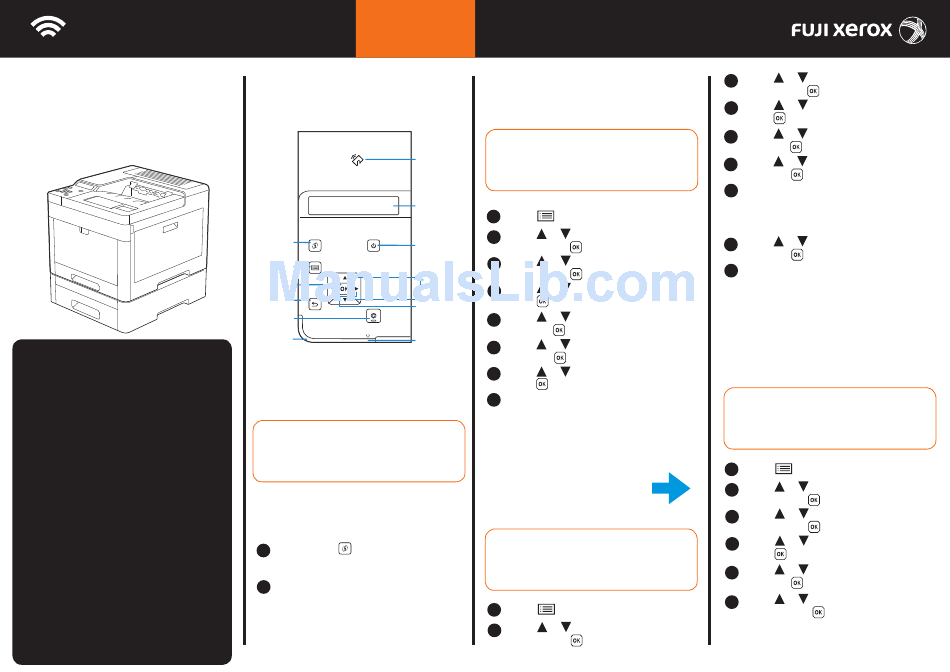

Getting to know the
Control Panel
NFC
LCD
Panel
Power
WPS
Button
Menu
Up/Down
Arrows
OK
Back
Left/Right
Job
Arrows
Cancel
Interact/
Ready
Error
LED
1
WPS-PBC
(WPS Button)
Note: WPS-PBC (WPS Button), WPS-PBC (Operator Panel)
and WPS-PIN is only available when the wireless access
point or router supports WPS-PBC. Please refer to the
manual provided with the router.
Before starting WPS-PBC, confirm the position of the WPS
button on the wireless access point or router. Please refer to
the manual supplied with the router for more information.
1
Press and hold the [WPS] button until the LCD
panel shows 'Press WPS button on router'.
2
Start the WPS-PBC on the wireless access point (router)
within 2 minutes.
The printer restarts automatically to complete the
wireless LAN connection setting.
http://onlinesupport.fujixerox.com/
2
WPS-PBC
(Using the Printer Menu)
This procedure requires access to the WPS-PIN functions
of your wireless access point (WAP) or router.
For further information please refer to the documentation
supplied with your wireless access point or router.
1
Press the <Menu> button.
2
Press the or button to select [Administrator Menu],
and then press the button.
3
Press the or button to select [Network Setup],
and then press the button.
4
Press the or button to select [Wi-Fi], and then
press the button.
5
Press the or button to select [WPS Setup], and
then press the button.
LED
6
Press the or button to select [Push Button], and
then press the button.
7
Press the or button to select [Start], and then
press the button.
8
When the message "Press WPS Button on router" is
displayed, start the WPS-PBC operation on the access
point or wireless router within 2 minutes.
The printer restarts automatically to complete the
wireless LAN connection setting.
3
WPS-PIN
This procedure requires access to the WPS-PIN functions
of your wireless access point (WAP) or router.
For further information please refer to the documentation
supplied with your wireless access point or router.
1
Press the <Menu> button.
2
Press the or button to select [Administrator Menu],
and then press the button.
3
Press the or button to select [Network Setup],
and then press the button.
4
Press the or button to select [Wi-Fi], and then
press the button.
5
Press the or button to select [WPS Setup], and
then press the button.
6
Press the or button to select [PIN Code], and
then press the button.
7
Write down the eight-digit PIN code displayed on the
touch panel:
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8
Press the or button to select [Start Configuration],
then press the button.
9
Make sure the message "Operate wireless router" is
displayed, and then enter the PIN code into the
wireless LAN access point.
The printer restarts automatically to complete the
wireless LAN connection setting.
4
Auto SSID Setup
Ensure you have the name of your wireless network (SSID),
wireless network password, security and encryption types.
For further information refer to
"Before you begin" at the start of this instruction.
1
Press the <Menu> button.
2
Press the or button to select [Administrator Menu],
and then press the button.
3
Press the or button to select [Network Setup],
and then press the button.
4
Press the or button to select [Wi-Fi], and then
press the button.
5
Press the or button to select [Wi-Fi Setup], and
then press the button.
6
Press the or button to select the desired access
point, then press the button.
If the desired access point doesn't appear, proceed to
"Manual SSID Setup".
DPCP315dw_QSG_P1
