Item #100 589 4616
Model #FRN-HUC39017

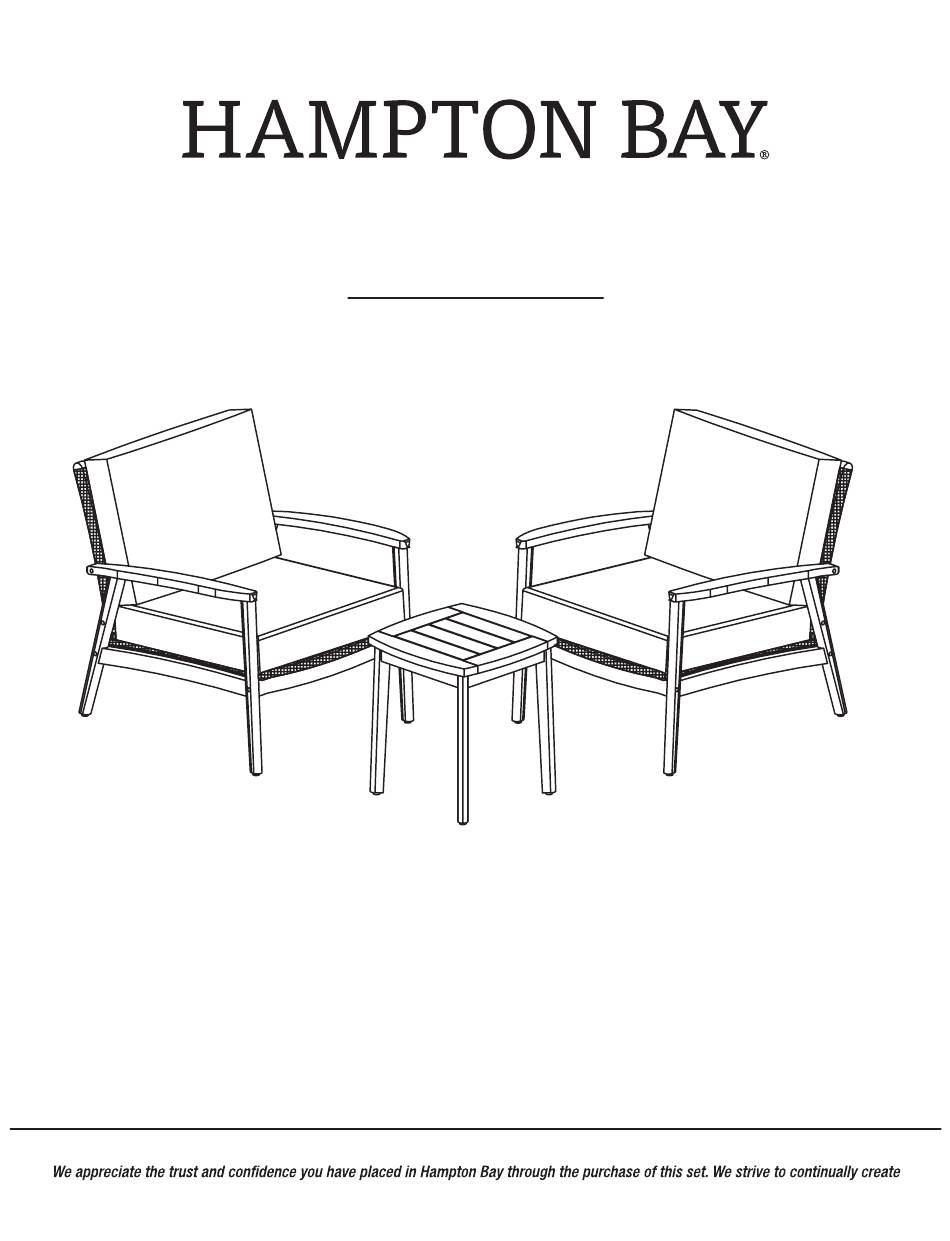

USE AND CARE GUIDE

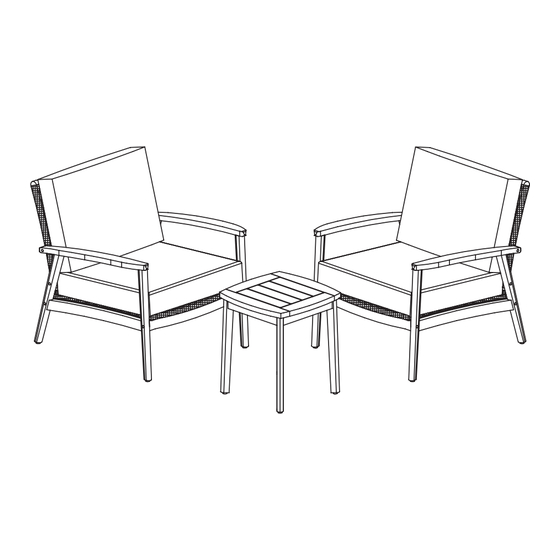

LAUREL WOOD 3 PC SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY LAUREL FRN-HUC39017
Summary of Contents for HAMPTON BAY LAUREL FRN-HUC39017
- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 The frame is warranted to be free of manufacturing defects for two years from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within two years of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at our option.
- Page 3 Table Assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. Assembly requires two people.
- Page 4 Table Assembly (continued) Attaching the Legs to the Table Top Attach the Table Legs (B) to the Table Top (A) using the Wrench (CC), Washers (AA), and Lock Nuts (BB). Then use the Wrench (CC) to secure. Completing the Assembly Please adjust the plastic leveling feet if the four legs are not level.
- Page 5 Chair Assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. Assembly requires two people.
- Page 6 Chair Assembly (continued) Attaching the Leg Frames to the Seat and Back Attach the Right Leg Frame (C) and Left Leg Frame (D) to the Back (E) and Seat (F), then insert Bolts (DD) and Screws (EE) through the Leg Frame into the Back and Seat, then tighten with an Allen Key (GG).
- Page 7 Replacement Parts Model #FRN-HUC39017 Part Description Replacement Part No. Table Leg FRN-HUC39017-B Self-Leveling Feet FRN-HUC39017-SLF Table Hardware Kit FRN-HUC39017-TABLE-KIT Chair Hardware Kit FRN-HUC39017-CHAIR-KIT HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory Chair ID # FRN-HUC39017-C...
