Instruction | APP W HC 15-30 pumps
Description
APP W HC 15 - 30
E
Parallel key,
mm
12 × 8 × 70
DIN 6885
in
0 .47 × 0 .31 × 2 .76
F
Bleeding
G ¼", Hexagon AF = 6 mm
I
Inlet port
M60 x 1 .5; depth 24 mm
O
Outlet port
M60 x 1 .5; depth 24 mm
Mounting flange
ISO 3019-2 180B4TW
For more details on the accessories,
please contact Danfoss High Pressure Pumps .
Possible extension see next page .
38
The valve outlet must not be connected directly to the pump suction line.
It must be connected directly to the drain.
Inlet

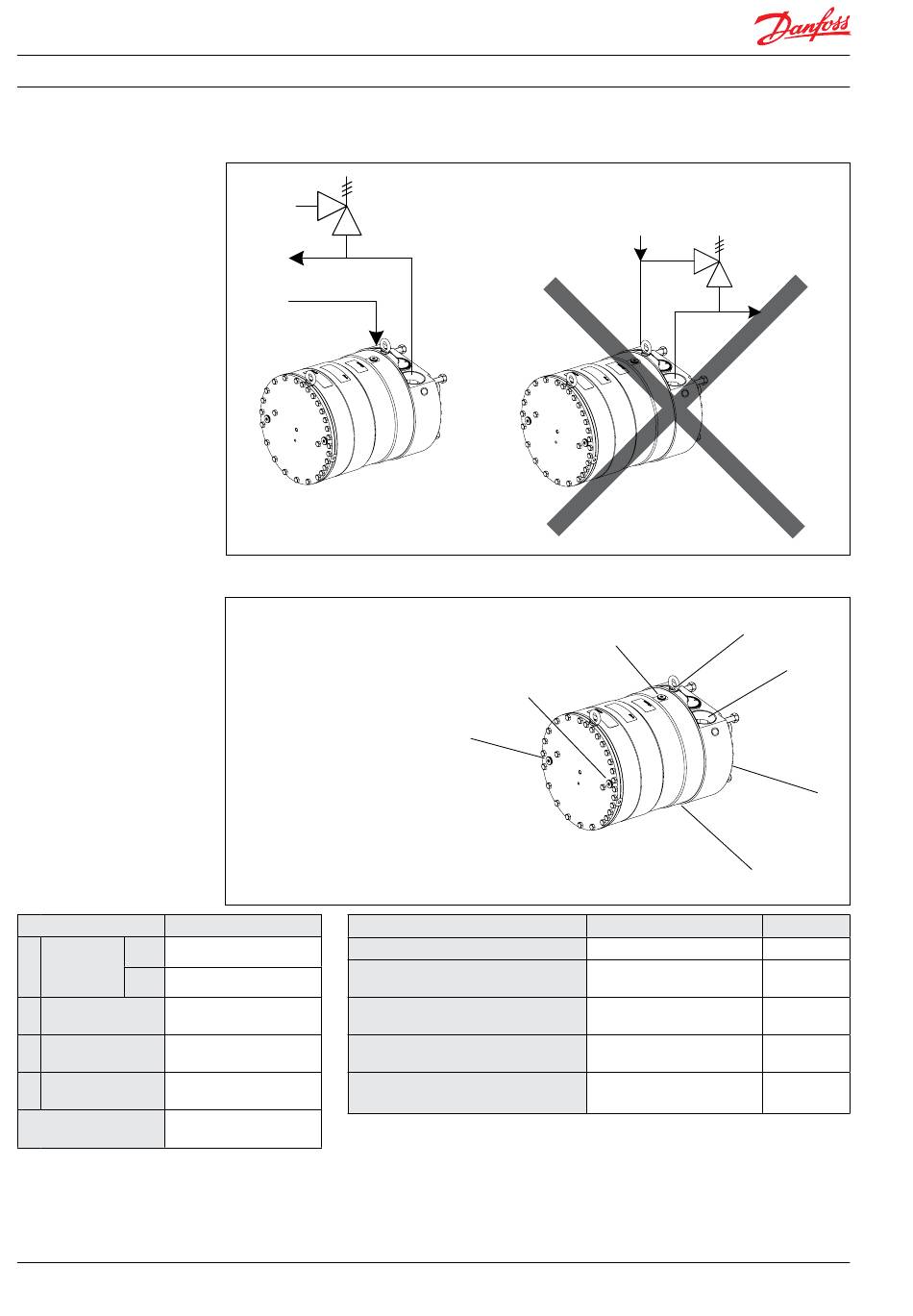

3.5 Connections

I:
Inlet
O:
Outlet
C:
Bleeding
D:
Parallel key
Accessories
3" inlet hose kit - 2m (79")
2½" outlet high pressure hose 120 bar
2½" outlet high pressure hose 120 bar
3" inlet connector
Non-return valve (outlet) Super Duplex
1)
The installation instuction for Style 77DX is located in the Victaulic document
I-100 Field Installation Handbook (htpp://static . v ictaulic .com)
180R9410 | AQ282628894589en-000801 | IOM APP W HC 15-30 Pumps | 01.2022
Outlet
C
C
Type
3" Victaulic
2 1/2" Victaulic 1 m
Style 77DX
2 1/2" Victaulic 1 .78 m
Style 77DX
M60 - 3" Victaulic
M60 - 2 1/2" Victaulic
Style 77DX
Inlet
I
C
C
Code no.
1)
1)
1)
Outlet
O
D
180Z0144
180Z1009
180Z1008
180B3208
180H0055
